5A-146 Automatic Transmission/Transaxle:
Transaxle Case Disassembly and Reassembly
S7RS0B5106058
Disassembly

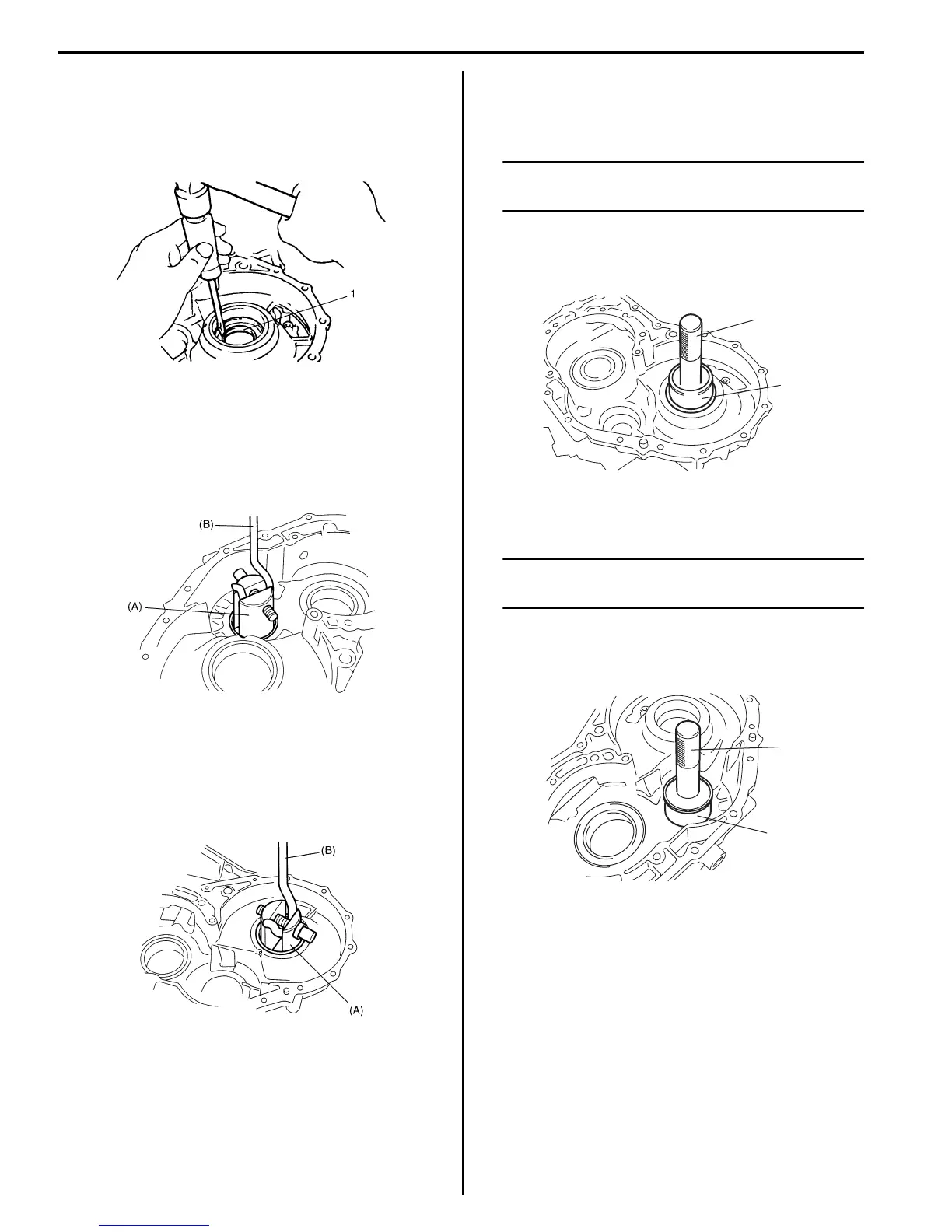

1) Remove differential side oil seal (1).
2) Remove countershaft LH bearing cup and shim with
special tools.
Special tool
(A): 09944–96011
(B): 09942–15511
3) Remove differential side LH bearing cup and shim
with special tools.
Special tool
(A): 09944–96011
(B): 09942–15511
Reassembly
1) Using special tools, assemble shim and differential
side LH bearing cup.
NOTE
Use shim with same thickness as the
removed one.
Special tool
(A): 09924–74510
(B): 09944–88220
2) Using special tools, assemble shim and countershaft
LH bearing cup.
NOTE
Use shim with same thickness as the
removed one.
Special tool
(A): 09924–74510
(B): 09944–88220
I2RH0B510247-01
I2RH0B510248-01
I2RH0B510249-01
(B)
(A)
I3RM0B510065-01
(B)
(A)
I3RM0B510066-01
