Automatic Transmission/Transaxle: 5A-13
Component Location

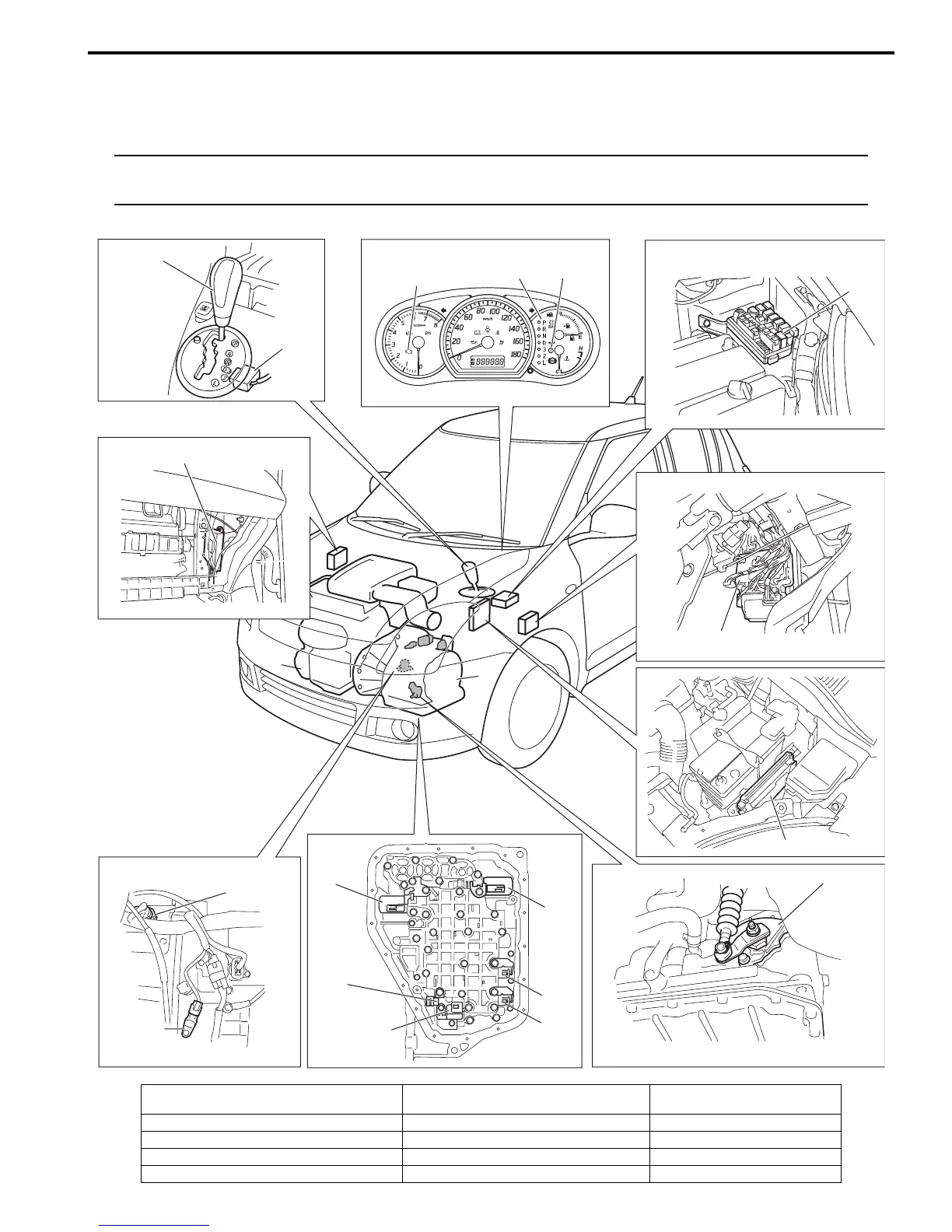

Electronic Shift Control System Components Location
S7RS0B5103001
NOTE
The figure shows left-hand steering vehicle. For right-hand steering vehicle, parts with (*) are installed
at the opposite side.
3
4
5*
1
2
6
7
8
9
10
11
12
13
14
16*
18
19
17
15
20
I6RS0C510006-01
1. Engine 8. TCC pressure control solenoid valve (TCC
solenoid valve)
15. ECM
2. Transaxle 9. Transmission fluid temperature sensor 16. TCM
3. MIL 10. Timing solenoid valve 17. AT relay
4. Shift position indicator light 11. Pressure control solenoid valve 18. “3” position switch
5. Junction block assembly (included in BCM) 12. Shift solenoid valve-B (No.2) 19. Select lever
