10B-19 Body Electrical Control System:
DTC B1150 (No. 1150): Air Bag Communication Circuit Malfunction
S7RS0BA204010

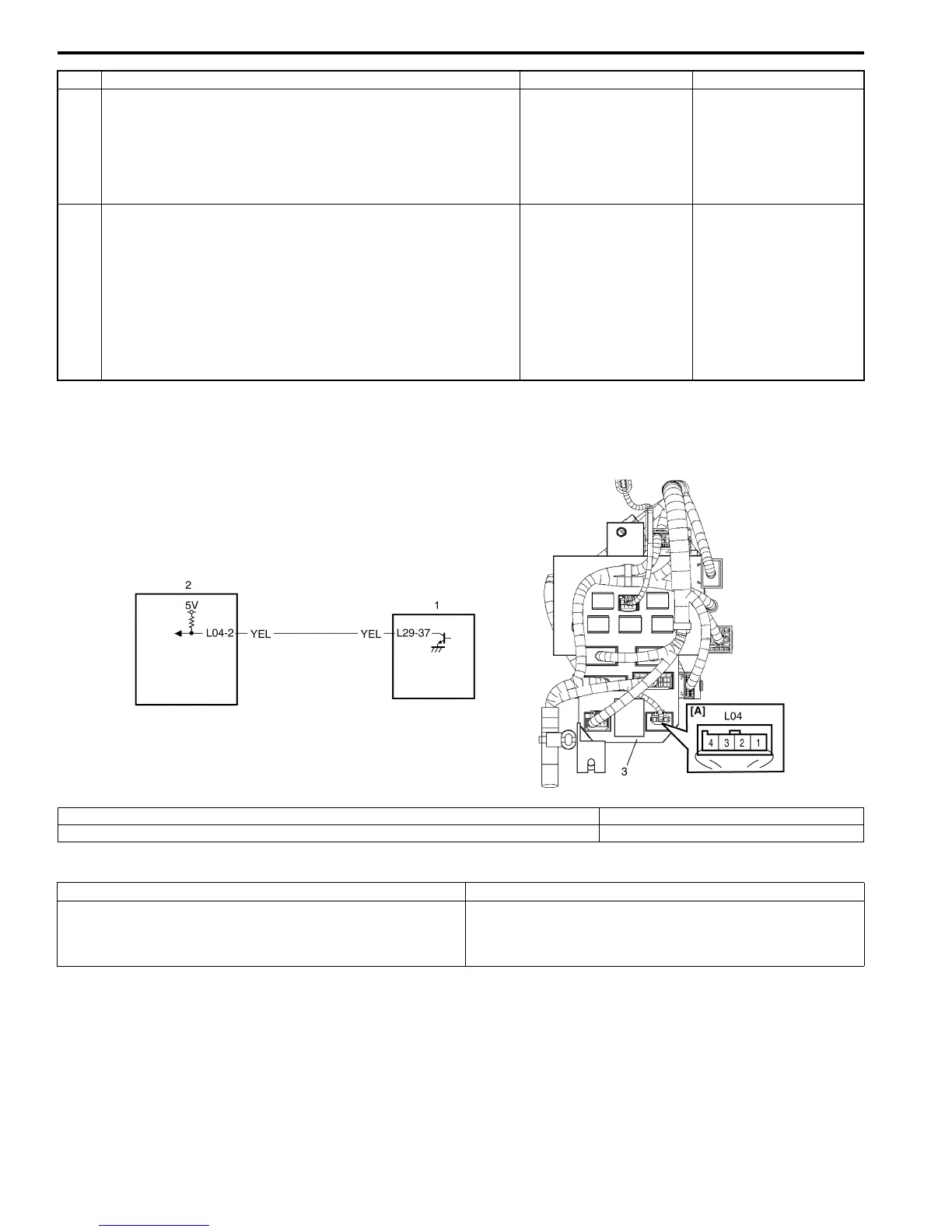

Wiring Diagram
DTC Detecting Condition and Possible Cause
Flow Test Description
Step 1: Check air bag communication circuit.
Step 2: Check air bag communication circuit.
Step 3: Check air bag communication circuit.
2 Check outside air temperature sensor circuit
1) Turn ignition switch to ON position.
2) Measure voltage between “E14-2” terminal of outside air
temperature sensor connector and vehicle body ground.
Is voltage 4 – 6 V?
Go to Step 3. Open or short in “YEL/
RED” wire circuit. If OK,
substitute a known-
good BCM (included in
junction block
assembly) and recheck.
3 Check outside air temperature sensor circuit
1) Turn ignition switch to OFF position.
2) Check for proper connection to “E46-8” terminal of BCM
connector.
3) If OK, measure resistance between “E14-1” terminal of
outside air temperature sensor connector and vehicle
body ground.
Is resistance 1
Ω or less?
Substitute a known-
good BCM (included in
junction block
assembly) and recheck.
Open or high resistance
in “YEL/BLK” wire
circuit.
Step Action Yes No
I4RS0AA20011-01
[A]: Junction block assembly connector viewed from harness side 2. BCM
1. SDM 3. Junction block assembly
DTC detecting condition Possible cause
After ignition switch is turned on, abnormal signal is fed
from SDM to BCM.
• Air bag communication circuit open or short
• SDM malfunction
• BCM malfunction
