Rear Brakes: 4C-1
Brakes
Rear Brakes
Repair Instructions

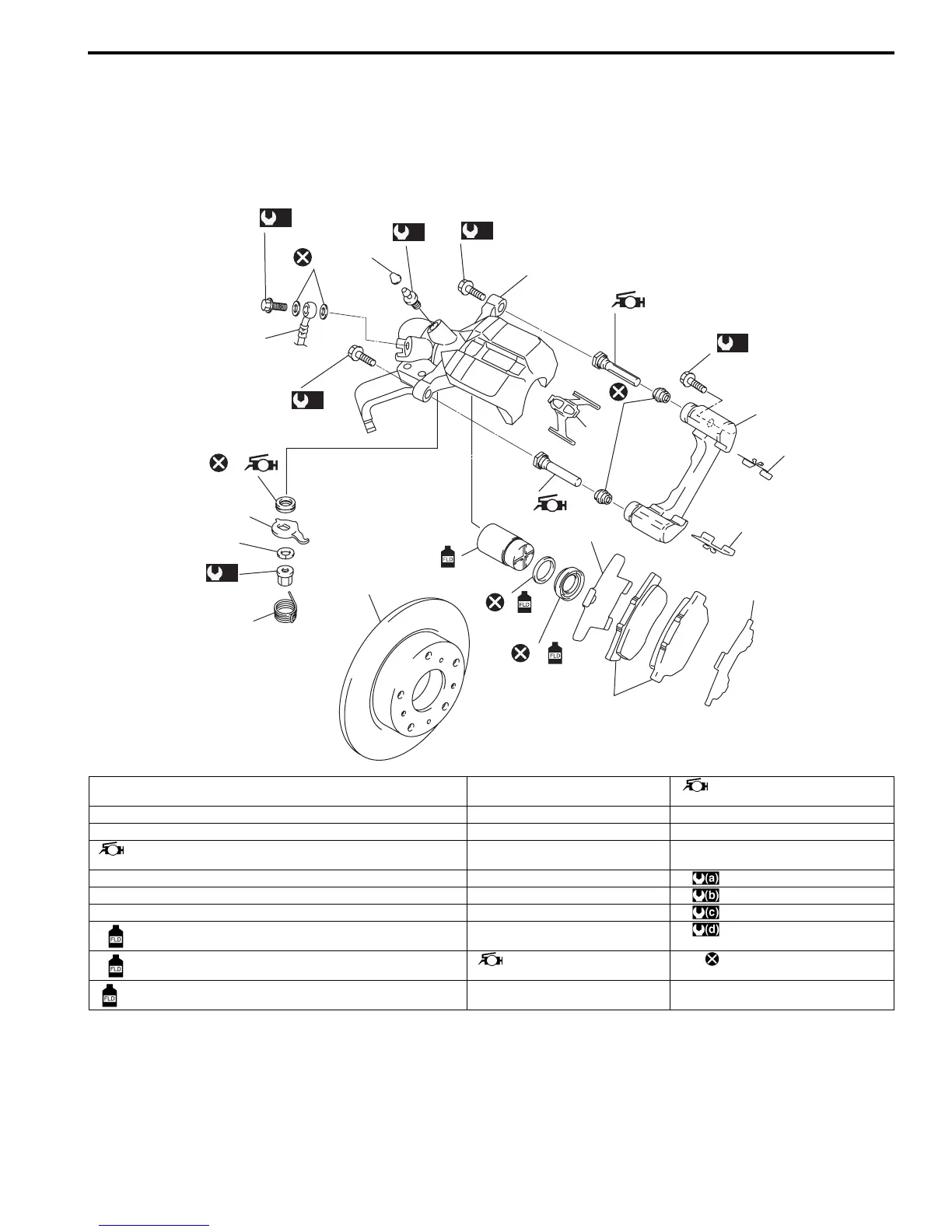

Rear Disc Brake Components
S7RS0B4306001
(d)
(c)
(a)
(a)
(a)
16
17
14
13
2
1
15
2
19
12
11
7
7
3
7
4
20
20
5
10
9
8
(b)
18
6
24
23
22
21
I7RS0B430001-01
1. Caliper 11. Brake caliper carrier 21. Shaft cover
: Apply rubber grease.
2. Caliper pin bolt 12. Caliper carrier bolt 22. Lever
3. Boot 13. Rear caliper bleeder plug 23. Washer
4. No.1 slide pin
: Apply rubber grease.
14. Bleeder plug cap 24. Parking nut
5. Brake pad 15. Brake flexible hose : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
6. Return spring 16. Flexible hose joint bolt : 27 N⋅m (2.7 kgf-m, 19.5 lb-ft)
7. Pad spring 17. Hose washer : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
8. Disk brake piston
: Apply brake fluid to contact surface of cylinder.
18. Brake disc : 9 N⋅m (0.9 kgf-m, 6.5 lb-ft)
9. Piston seal
: Apply small amount of brake fluid to all around part of piston seal.
19. No.2 slide pin
: Apply rubber grease.
: Do not reuse.
10. Cylinder boot
: Apply small amount of brake fluid.
20. Pad shim
