9A-23 Wiring Systems:
J: Rear door wire
K: Roof wire
Floor
S7RS0B910A005

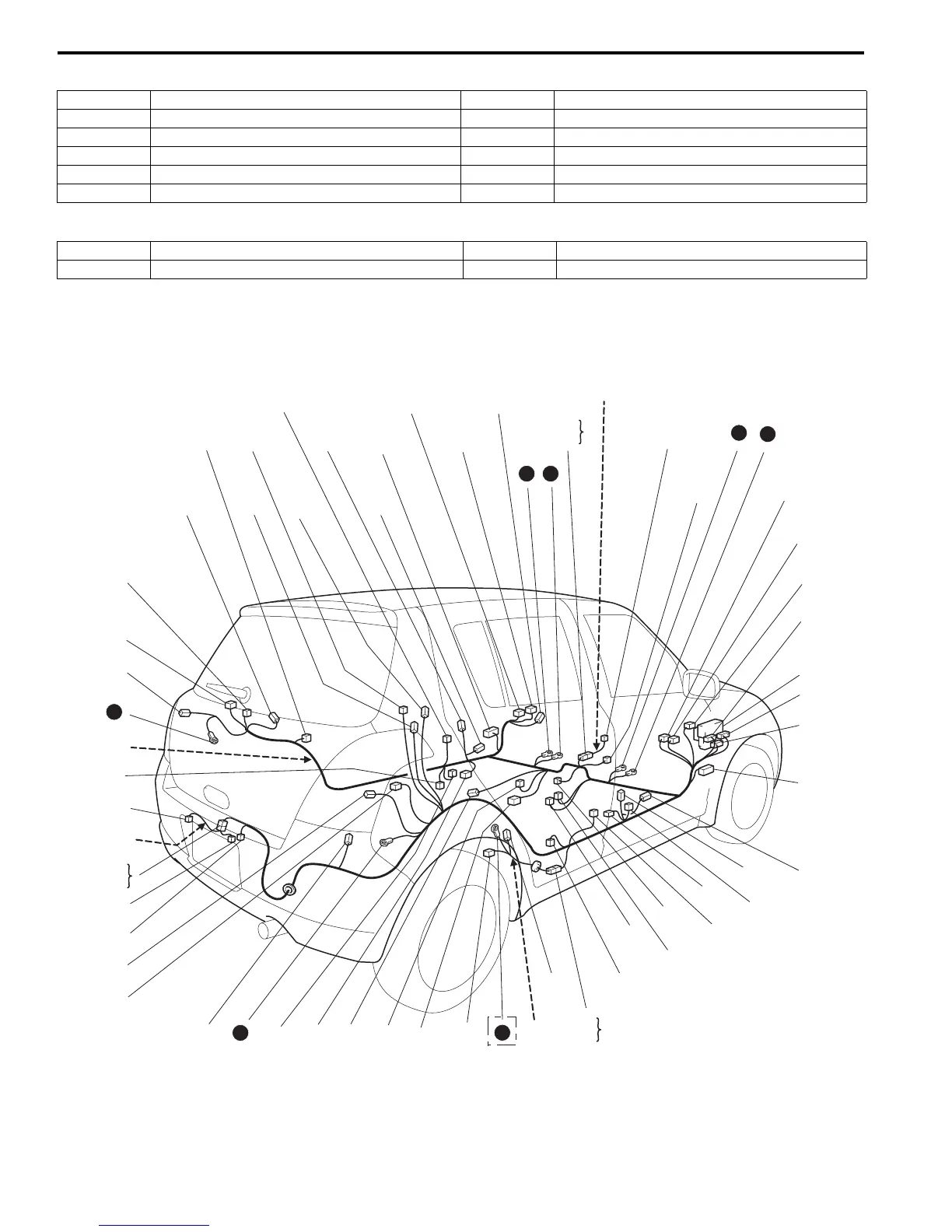

L: Floor harness, ACC socket wire, License plate wire / R: Fuel pump wire (NORMAL model, RHD)
No./Color Connective position No./Color Connective position
J16/N Floor harness (To L13) J21/N Floor harness (To L37)
J17/N Rear speaker (R) J22/N Rear speaker (L)
J18/BLK Rear power window motor (R) J23/BLK Rear power window motor (L)
J19/N Rear power window sub switch (R) J24/N Rear power window sub switch (L)
J20/N Rear door lock motor (R) J25/N Rear door lock motor (L)
No./Color Connective position No./Color Connective position
K01/N J/B K02/N Interior light
21
L48
14
L43
L42
(TO O01)
L40
L41
L33
(TO G03)
L32
(TO G04)
L46
ACC socket wire
L02
(TO E45)
L03
(TO E44)
L01
L04
L05
L06
L07
(TO J01)
L74
15
16
L23
(A/T)
17 18
L31
(TO J09)
L24
13
L20
L19
R02L65L66
L15
R01
L12
L10
L11
L13
(TO J16)
L14
R03
L26
L25
L27
L30
L29
L17
L18
L51
(TO G43)
L36
L35
L37
(TO J21)
L34
L38
L16
L28
L44
L
L39
J/B
R
L47
L59
L21
L22
License plate
wire
IF EQPD
I7RS0B910907-01
