Rear Suspension: 2C-13

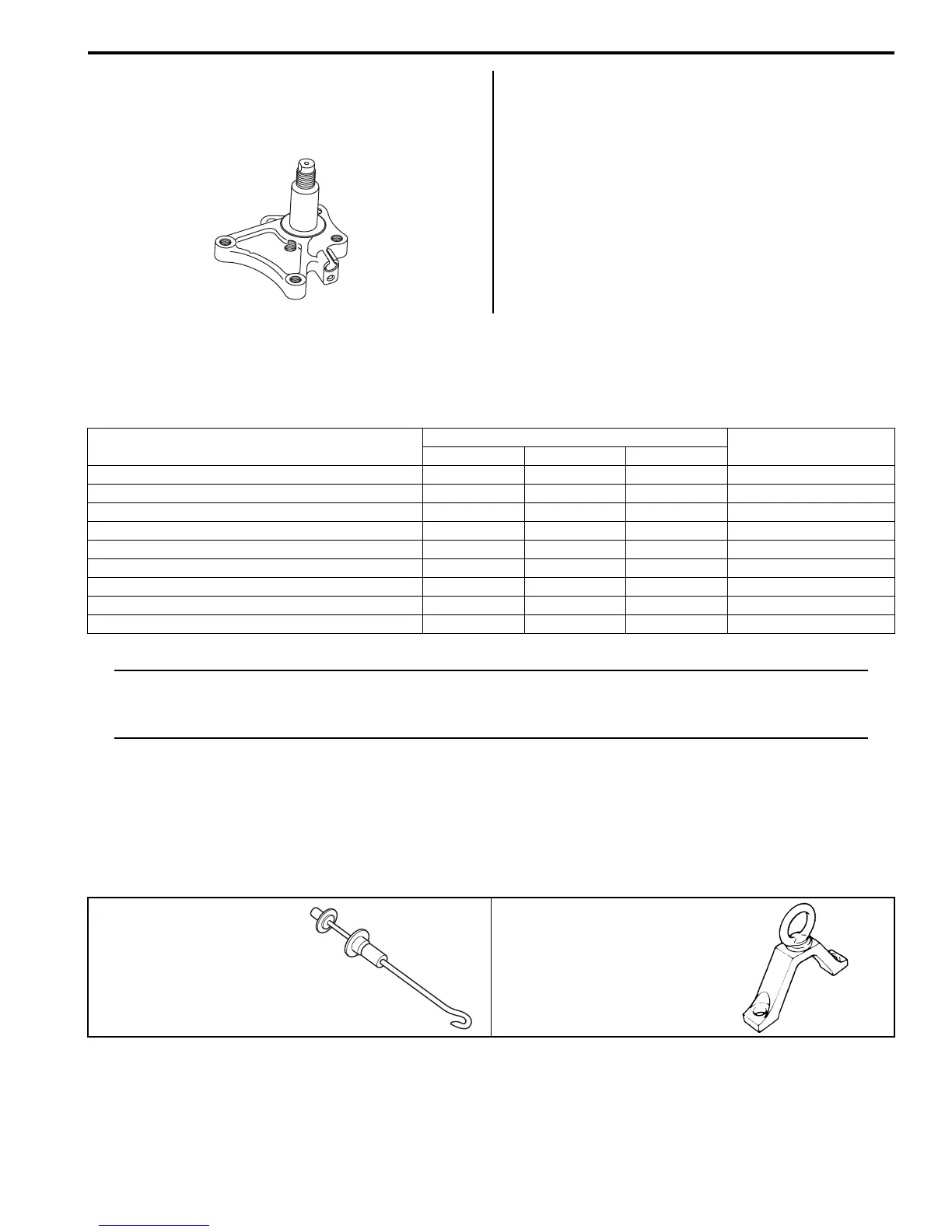

Spindle Inspection
S7RS0B2306015
• Inspect for cracks, deformation or damage.
Replace any defective part.
Rear Suspension Fasteners Inspection
S7RS0B2306016
Check each bolt and nut fastening suspension parts for
tightness. Tighten loose one, if any, to specified torque
referring to the figure in “Rear Suspension Construction”.
Specifications
Tightening Torque Specifications
S7RS0B2307001
NOTE
The specified tightening torque is also described in the following.
“Rear Suspension Construction”
“Rear Wheel Hub Components”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Fasteners Information in Section 0A”.
Special Tools and Equipment
Special Tool
S7RS0B2308001
I6RS0B230017-01
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Wheel nut 85 8.5 61.5 ) / ) / ) / ) / )
Rear shock absorber upper nut 28 2.8 20.0 )
Rear shock absorber lower nut 90 9.0 65.0 ) / ) / )
Wheel speed sensor bolt 11 1.1 8.0 ) / )
Brake pipe flare nut 16 1.6 11.5 ) / )
Parking brake cable clamp bolt 11 1.1 8.0 )
Trailing arm bolt 73 7.3 53.0 )
Rear axle nut 175 17.5 126.5 )
Rear spindle bolt 88 8.8 64.0 )
09942–15511 09943–17912
Sliding hammer Wheel hub remover
))
