Air Bag System: 8B-111

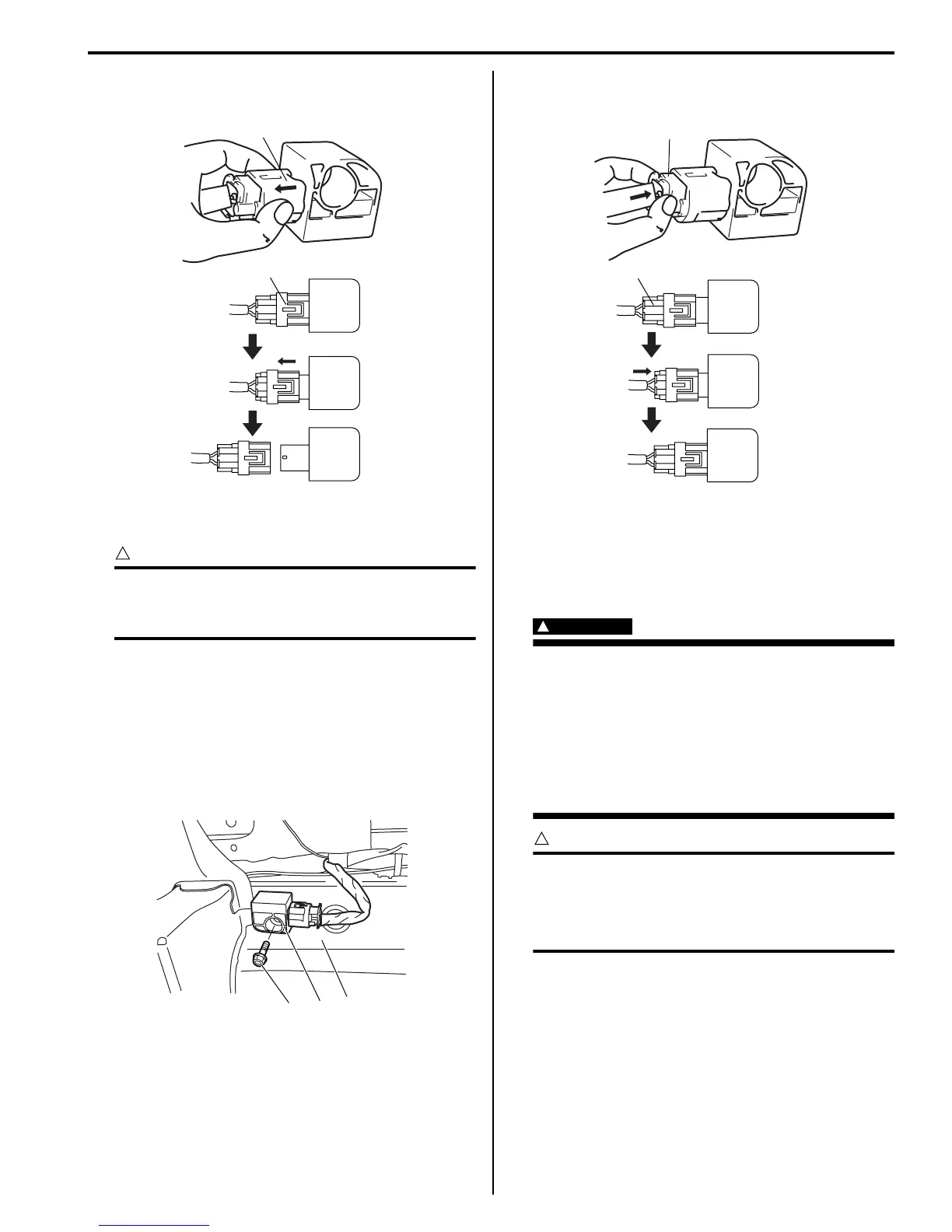

6) Disconnect side-sensor connector sliding connector
outer (1) as shown.
Installation
CAUTION
!
Proper operation of side-sensor requires
sensor be rigidly attached to specified
position.
1) Check that none of following faulty conditions exists.
• Bend, deformity or rust of under body.
• Foreign matter on mating surface of sensor.
2) Install side-sensor (1) on under body (2) and tighten
side-sensor bolt (3) to specified torque.
Tightening torque
Side-sensor bolt (a): 9 N·m (0.9 kgf-m, 6.5 lb-ft)
3) Connect side-sensor connector pushing connector
inner (1) as shown.
4) Connect negative cable at battery.
5) Enable air bag system. Refer to “Enabling Air Bag
System”.
Side-Sensor Inspection
S7RS0B8206016
WARNING
!
During service procedures, be very careful
when handling a sensor.
• Never strike or jar a sensor.
• A sensor and mounting bracket bolts must
be carefully torqued to assure proper
operation. Under loose connection, it
could cause improper operation of the air
bag system.
CAUTION
!
• Never disassemble side-sensor.
• Sensor should be replaced when it was
dropped from a height of 90 cm (3 ft) or
more.
1
1
I4RS0A820109-01
1
2
3, (a)
I4RS0A820081-01
1
1
I4RS0A820106-01
