Suzuki Swift Sport 2004 User Manual

ABS: 4E-32

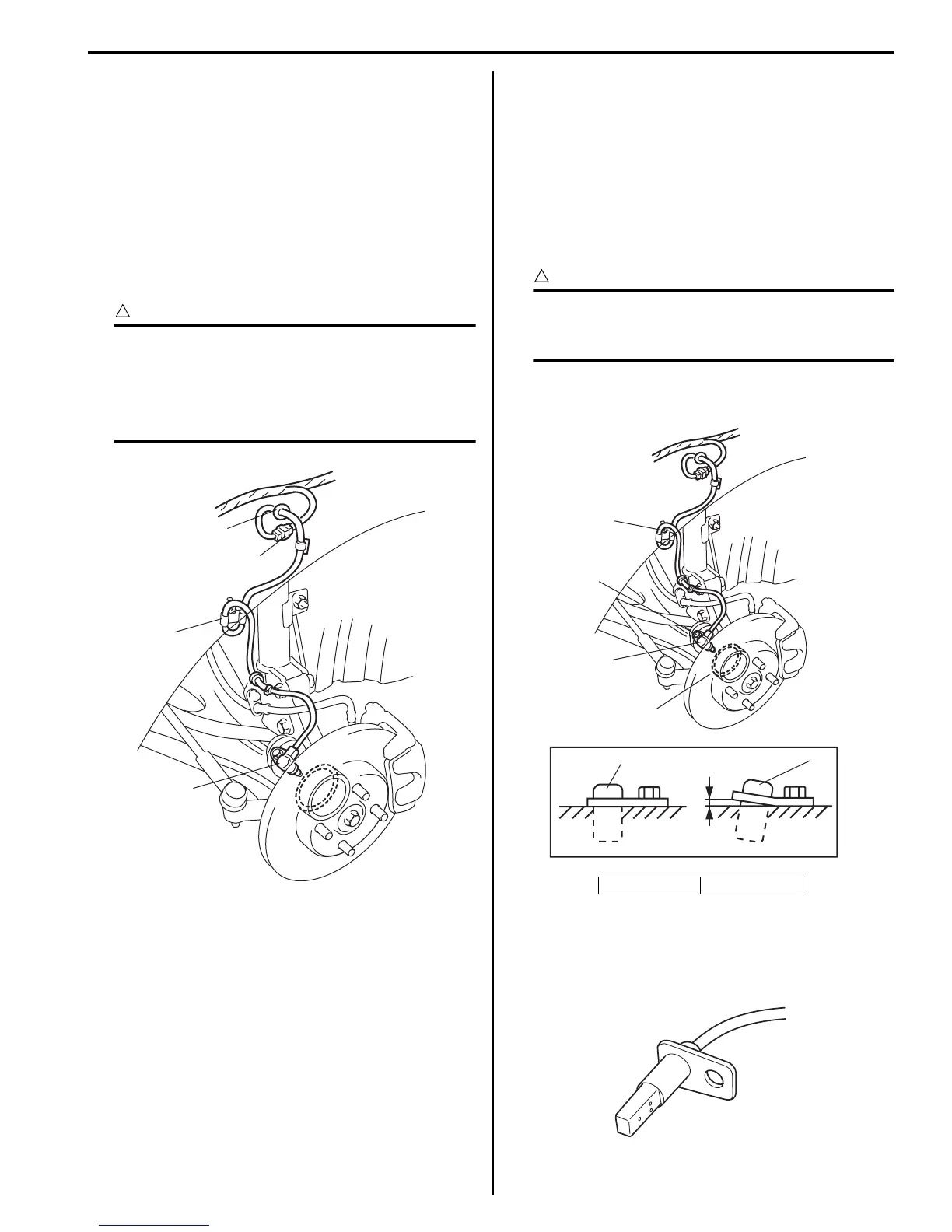

Front Wheel Speed Sensor Removal and
Installation
S7RS0B4506006
Removal
1) Disconnect negative cable from battery.
2) Disconnect front wheel speed sensor coupler (1).
3) Hoist vehicle and remove wheel.
4) Remove harness clamp, clamp bolt (2) and grommet
(3).
5) Remove front wheel speed sensor (4) from knuckle.
CAUTION
!
• Do not pull wire harness when removing
front wheel speed sensor.
• Do not cause damage to surface of front
wheel speed sensor and do not allow dust,
etc. to enter its installation hole.
Installation
1) Check that no foreign material is attached to sensor
(1) and sensor ring (2).
2) Install it by reversing removal procedure.
Tightening torque
Front wheel speed sensor bolt (a): 25 N·m (2.5
kgf-m, 18.0 lb-ft)
Front wheel speed sensor harness clamp bolt
(b): 11 N·m (1.1 kgf-m, 8.0 lb-ft)
CAUTION
!
Do not pull or twist wire harness more than
necessary when installing front wheel speed
sensor.
3) Check that there is no clearance between sensor
and knuckle.
Front Wheel Speed Sensor Inspection
S7RS0B4506007
• Check sensor for damage.
If any malcondition is found, replace.
3
1
2
4
I6RS0C450017-01
[A]: OK [B]: NG
[A]
[B]
11
(a)
(b)
1
2
I6RS0C450018-01
I5JB0A450031-01
