Suzuki Swift Sport 2004 User Manual

5C-8 Clutch:

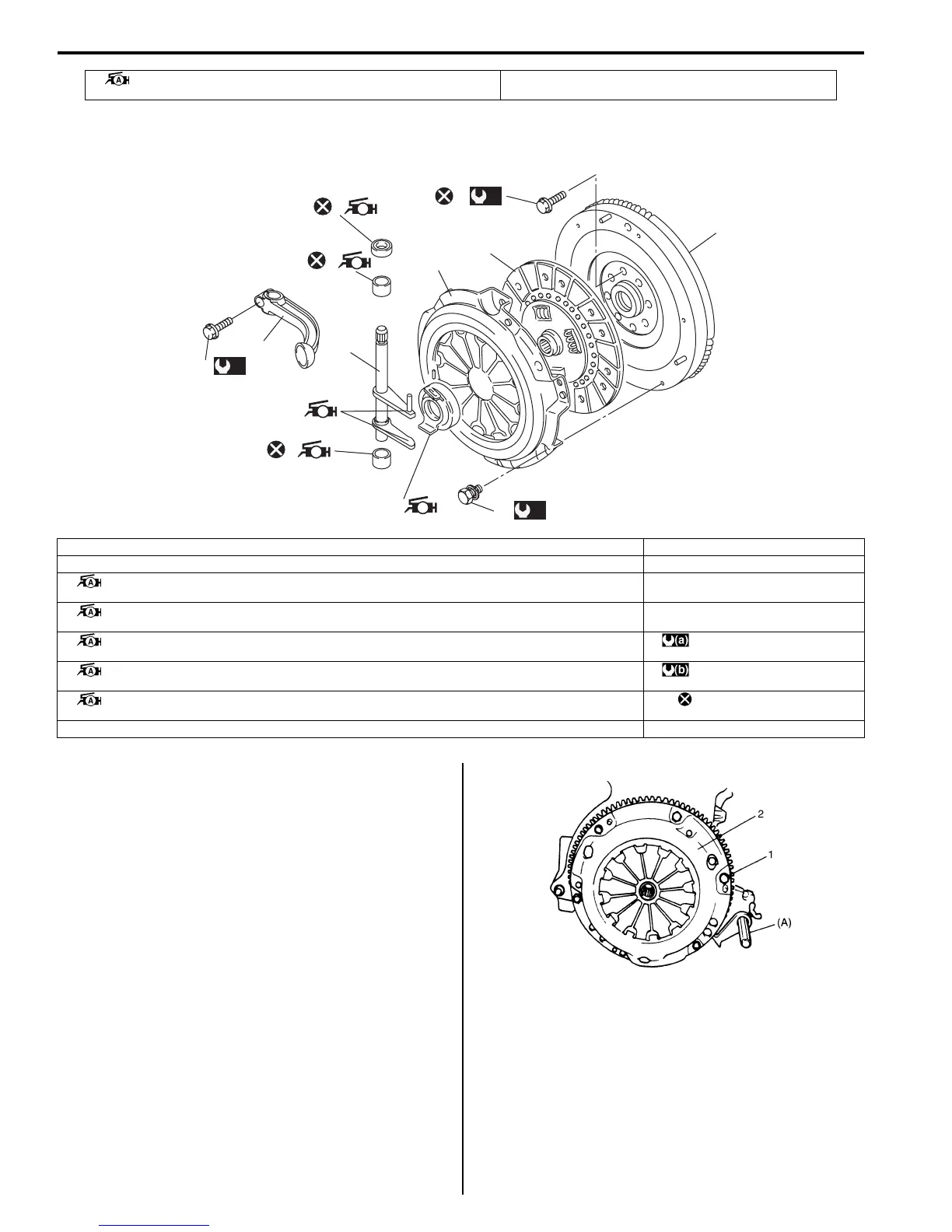

Clutch Cover, Clutch Disc and Flywheel Components
S7RS0B5306013
Clutch Cover, Clutch Disc and Flywheel
Removal and Installation
S7RS0B5306014
Removal
1) Dismount manual transaxle assembly referring to
“Manual Transaxle Unit Dismounting and
Remounting in Section 5B”.
2) Hold flywheel with special tool and remove clutch
cover bolts (1), clutch cover (2) and clutch disc.
Special tool
(A): 09924–17811
8. Clutch pedal
: Apply grease 99000-25011 to outside surface of pin.
(a)
(b)
(b)
A
A
A
12
11
5
6
A
3
A
4
7
10
2
9
8
1
I4RS0A530013-02
1. Flywheel 9. Clutch disc
2. Flywheel bolt 10. Clutch cover bolt
3. Clutch release shaft seal
: Apply grease 99000-25011 to seal lip.
11. Release arm
4. Clutch release shaft No.2 bush
: Apply grease 99000-25011 to bush inside.
12. Release arm bolt
5. Clutch release shaft
: Apply grease 99000-25011 to the end of release shaft arm.
:70 N⋅m (7.0 kgf-m, 51.0 lb-ft)
6. Clutch release shaft No.1 bush
: Apply grease 99000-25011 to bush inside.
:23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
7. Release bearing
: Apply grease 99000-25011 to joint of bearing and release shaft and also bearing inside.
Do not reuse.
8. Clutch cover
I4RS0A530014-01
