Front Suspension: 2B-8

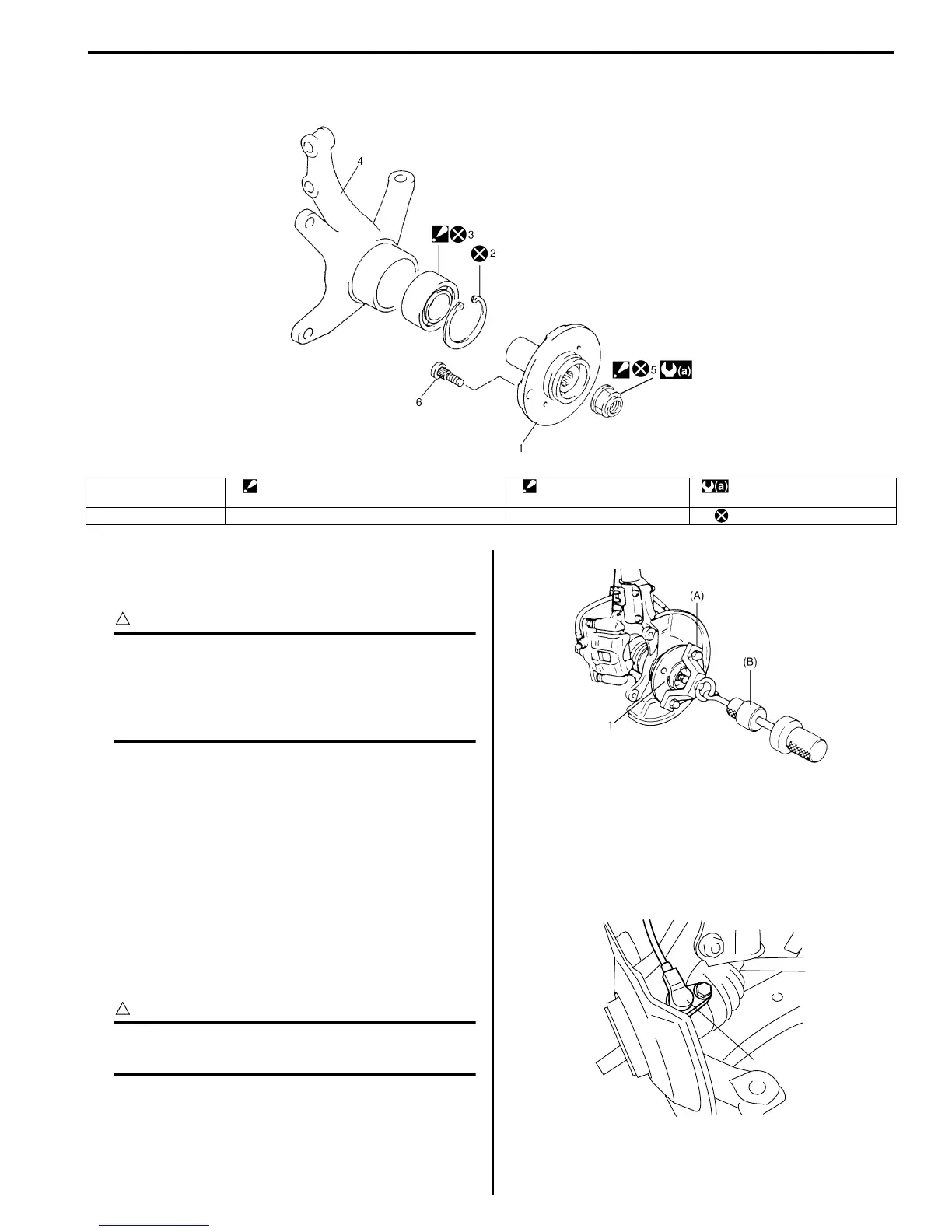

Front Wheel Hub and Steering Knuckle Components

S7RS0B2206006

Front Wheel Hub, Steering Knuckle and Wheel

Bearing Removal and Installation

S7RS0B2206007

CAUTION

When removing and installing steering

knuckle assembly, be careful not to damage

dust boots of suspension control arm joint

by drive shaft dust cover and brake dust

cover.

Removal

1) Hoist vehicle and remove wheel.

2) Uncaulk drive shaft nut.

3) Depress foot brake pedal and hold it. Remove drive

shaft nut.

4) Remove brake disc referring to “Front Brake Disc

Removal and Installation in Section 4B”.

5) Pull out wheel hub (1) with special tools.

Special tool

(A): 09943-17912

(B): 09942-15511

CAUTION

When wheel hub is removed, replace wheel

bearing with new one.

6) Remove cotter pin and tie-rod end nut, and then

disconnect tie-rod end from steering knuckle

referring to “Tie-Rod End Removal and Installation in

Section 6C”.

7) Remove wheel speed sensor (1) from steering

knuckle.

I7RS0B220005-03

1. Front wheel hub 3. Wheel bearing

: Face grooved rubber seal side to wheel hub.

5. Drive shaft nut

: Calk, after tightening.

: 200 N⋅m (20.0 kgf-m, 145 lb-ft)

2. Circlip 4. Steering knuckle 6. Hub bolt : Do not reuse.

I3RM0A220023-01

I4RS0B220005-01
