Glass / Windows / Mirrors: 9E-18

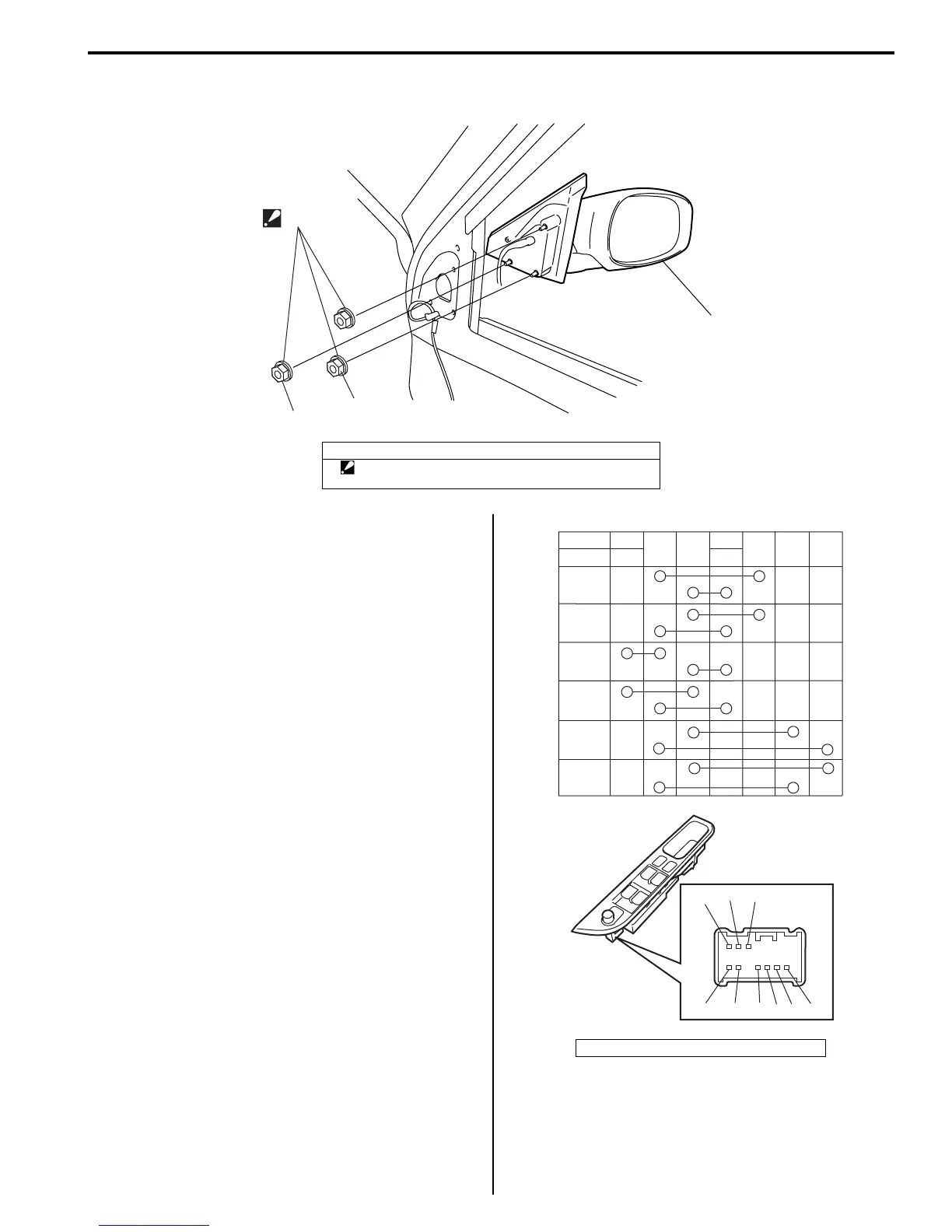

Door Mirror Components
S7RS0B9506018
Door Mirror Removal and Installation
S7RS0B9506019
When removing or installing door mirror, refer to the
figure in “Door Mirror Components”.
Power Door Mirror Switch Inspection
S7RS0B9506020
1) Remove driver side door trim referring to step 1) to
3) of “Front Door Glass Removal and Installation”.
2) Remove power window main switch from door trim.
3) Check for continuity between terminals at each
switch position.
If check result is not as specified, replace door mirror
switch.
1
2, “1”
“3”
“2”
I4RS0A950034-01
1. Door mirror
2. Door mirror mounting nut
:Tighten nuts in such order as indicated in the figure.
*: Vehicle with retractable mirror only
ABC
DEFG
A
B
C D
E
F
G
Up
Down
Left
Right
L
R
H
I
*Set
*Retract
HI
I5RS0C950004-01
