Suzuki Swift Sport 2004 User Manual

9E-19 Glass / Windows / Mirrors:

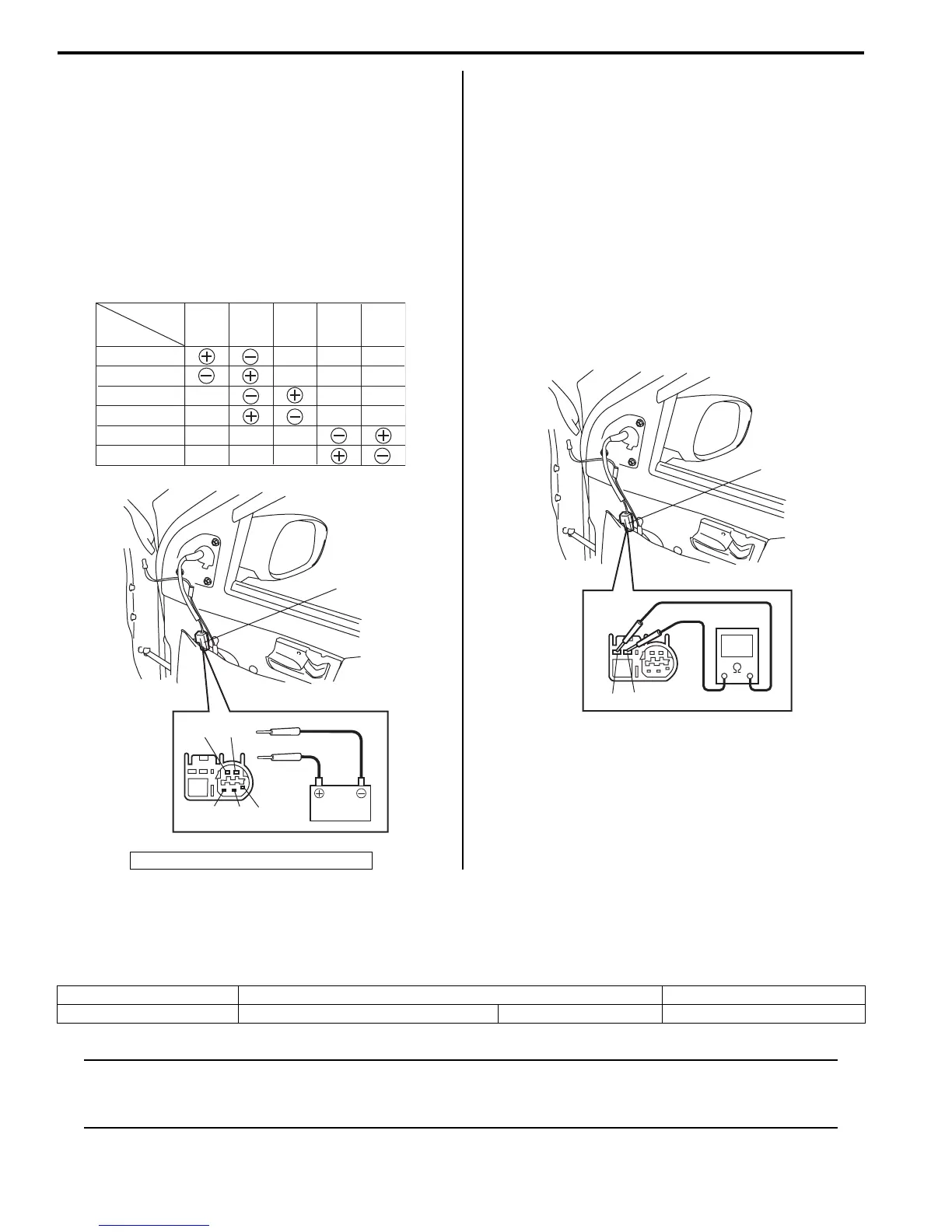

Power Door Mirror Actuator Inspection
S7RS0B9506021
1) Remove front door trim referring to step 1) to 3) of
“Front Door Glass Removal and Installation”.
2) Disconnect door mirror coupler (1).
3) Check that door mirror operates properly when
battery voltage is applied to connector terminals.
4) Connect battery positive (+) and negative (–)
terminal to the door mirror terminals as shown.
If it does not follow the table’s operation, replace
door mirror assembly.
Door Mirror Heater Switch Inspection (If
Equipped)
S7RS0B9506022
Door mirror heater is operated by rear end door window
defogger switch. Check rear end door window defogger
switch referring to “Rear End Door Window Defogger
Switch Inspection”.
Door Mirror Heater Inspection (If Equipped)
S7RS0B9506023
1) Remove front door trim referring to Step 1) to 3) of
“Front Door Glass Removal and Installation”.
2) Disconnect door mirror coupler (1).
3) Check for continuity between terminals “a” and “b”.
If no continuity, replace outside mirror.
Special Tools and Equipment
Recommended Service Material
S7RS0B9508001
NOTE
Required service material is also described in the following.
“Front Door Window Components”
“Rear Door Window Components”
*: Vehicle with retractable mirror only
Operation
Terminal
Up
Down
Left
Right
CBA
1
C
B
A
*Set
*Retract
DE
DE
I5RS0C950005-01
1
“a”
“b”
I5RS0D950001-01
Material SUZUKI recommended product or Specification Note
Grease SUZUKI Super Grease A P/No.: 99000–25011 ) / )
