Engine Mechanical: 1D-12

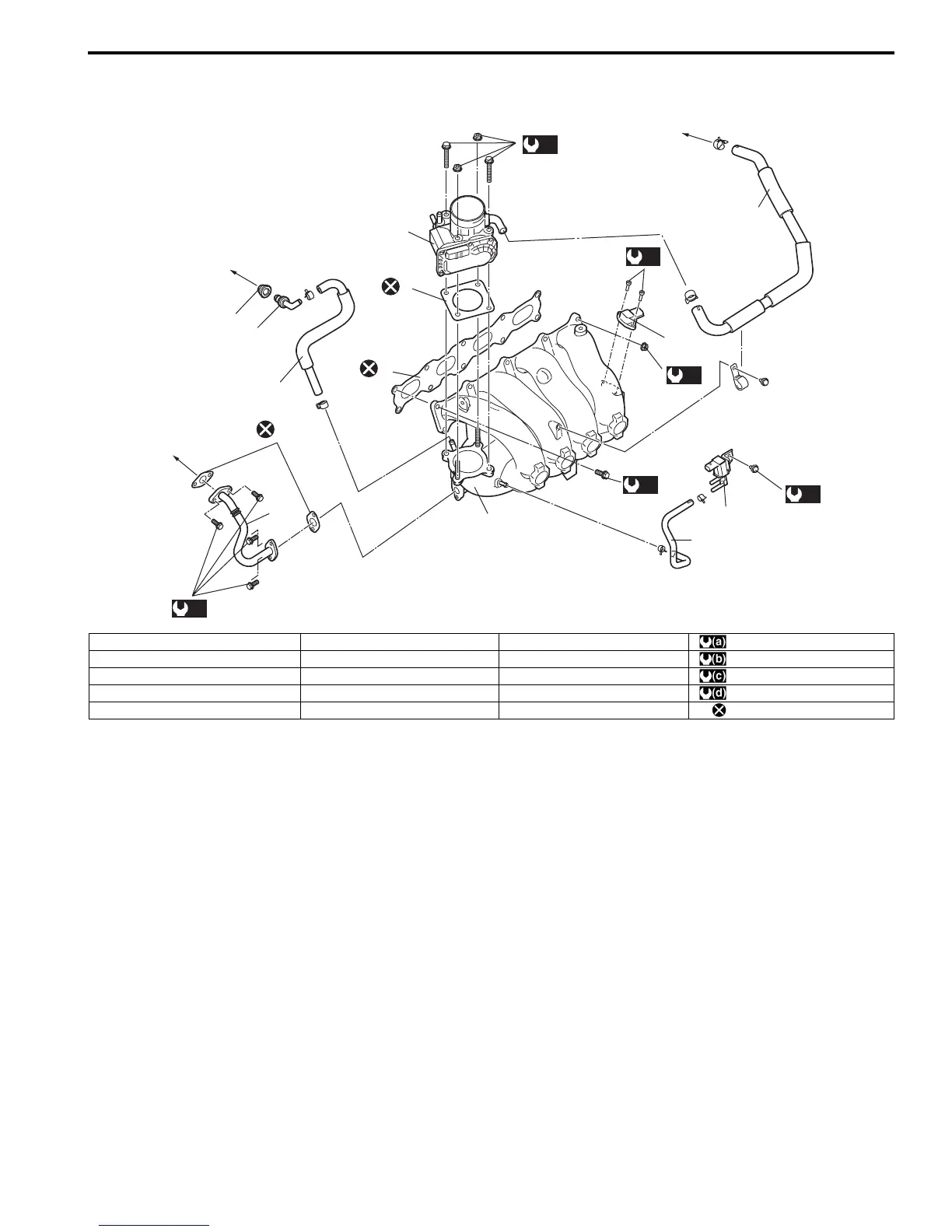

Throttle Body and Intake Manifold Components
S7RS0B1406005
4
5
2
15
12
11
13
14
8
10
15
6
3
9
1
(c)
(b)
(a)
(c)
(c)
(d)
7
I7RS0B140002-02
1. Intake manifold 6. Breather hose 11. PCV valve : 11 N⋅m (1.1 kgf-m, 8.0 lb-ft)
2. Intake manifold gasket 7. EGR pipe 12. PCV valve seal : 8 N⋅m (0.8 kgf-m, 6.0 lb-ft)
3. EVAP canister purge valve hose 8. Gasket 13. PCV hose : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
4. Throttle body 9. EVAP canister purge valve 14. To EGR valve : 5 N⋅m (0.5 kgf-m, 4.0 lb-ft)
5. Throttle body gasket 10. MAP sensor 15. To cylinder head cover : Do not reuse.
