8B-112 Air Bag System:
• Check sensor (1) for dents, crack, deformation.
• Check sensor connector (sensor side and harness
side), lock mechanism or sensor lead wire for
damage, crack, scorching or melting.
• Check connector terminals for bent, corrosion or rust.
If any faulty condition is found in above checks,
replace.

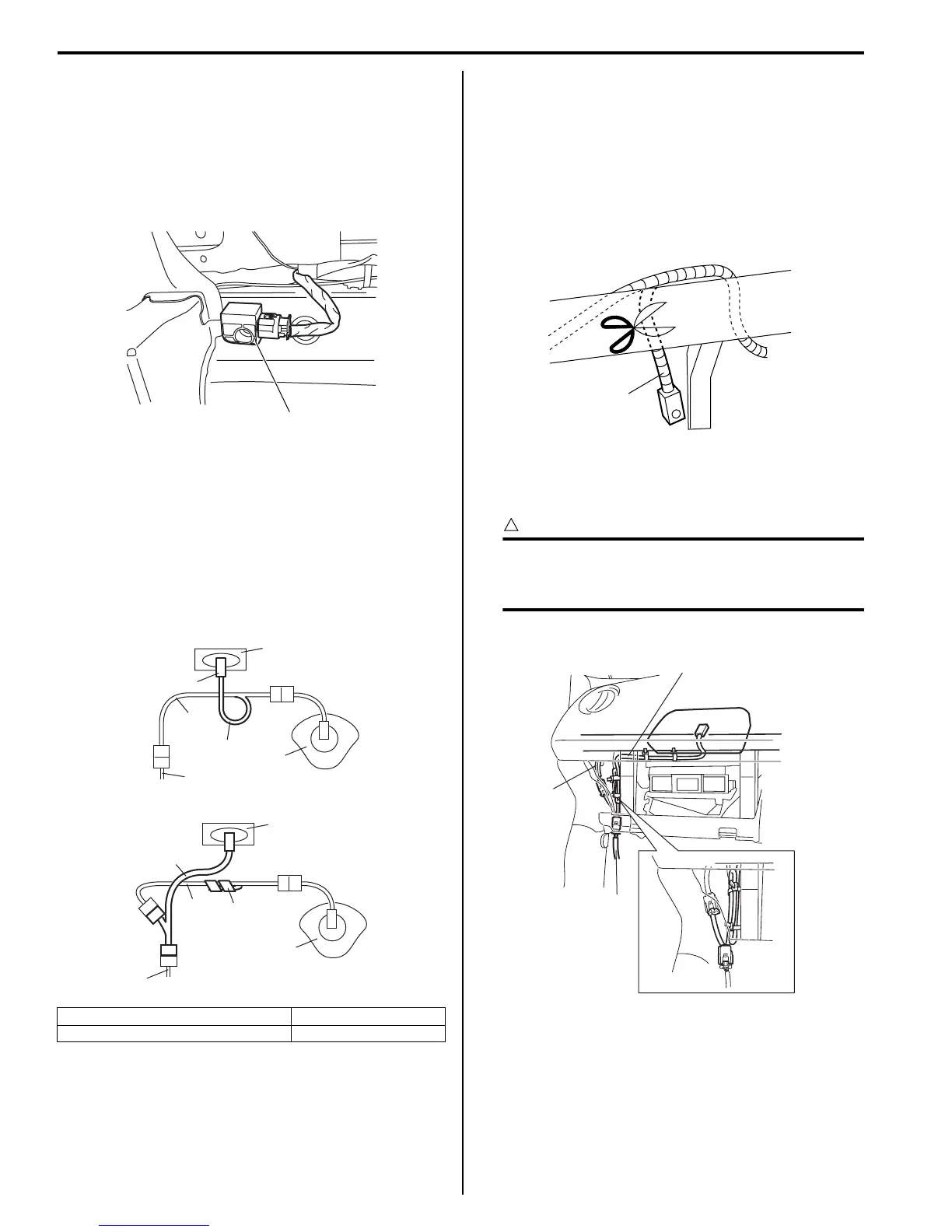

Passenger Air Bag (Inflator) Module Repair
Harness Installation
S7RS0B8206017
Replace passenger air bag (inflator) module repair
harness (4) according to the following procedure when
the harness (1) connected with passenger air bag
(inflator) module of the air bag harness included in
instrument panel harness (2) and passenger air bag
(inflator) module connector (3) is damaged.
1) Disable air bag system. Refer to “Disabling Air Bag
System”.
2) Disconnect “L32” connector from floor harness
located near the glove box.
3) Cut off passenger air bag (inflator) module harness
(1) included in instrument panel harness (2) as
shown, and then fasten it to instrument panel
harness with vinyl tape for avoiding interference with
other parts.
4) Install passenger air bag (inflator) module repair
harness (1) to floor harness (2), instrument panel
harness (3) and passenger air bag (inflator) module.
CAUTION
!
To avoid interference with other parts, fasten
the repair harness to instrument wire harness
with a clamp or vinyl tape as shown in figure.
5) Connect each connector securely till click is heard.
5. Driver air bag (inflator) module 7. Floor harness
6. Passenger air bag (inflator) module 8. Vinyl tape
1
I4RS0A820082-01
7
4
6
6
2
2
8
1
3
5
5
7
I4RS0A820103-01
1
I4RS0A820083-01
1
2
3
I4RS0A820085-01
