Suzuki Swift Sport 2004 User Manual

9J-5 Hood / Fenders / Doors:

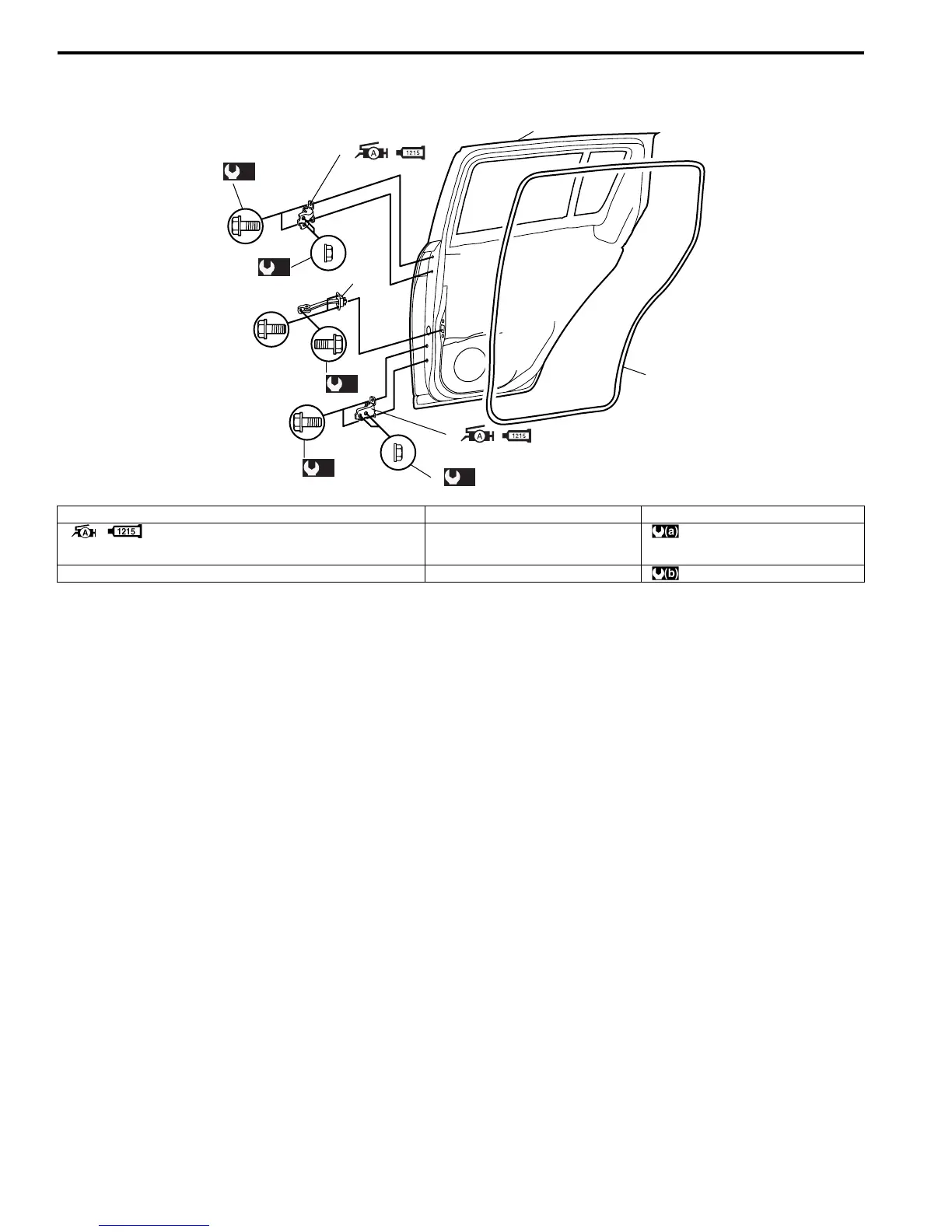

Rear Door Assembly Components
S7RS0B9A06007
Rear Door Assembly Removal and Installation
S7RS0B9A06008
Refer to “Front Door Assembly Removal and Installation” as removal and installation procedures are basically the
same. However, note the following.
• Tighten rear door hinge bolts and nuts to specified torque referring to “Rear Door Assembly Components”.
2
2
(a)
4
(a)
4
(a)
7
(a)
7
(b)
5
3
6
1
I4RS0A9A0009-01
1. Door panel 4. Rear door hinge bolt 7. Rear door hinge nut
2. Door hinge
: Apply lithium grease 99000-25010 to rotating part.
: Apply sealant 99000-31110 to contact face.
5. Door open stopper bolt : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
3. Door open stopper 6. Rear door opening weather-strip : 21 N⋅m (2.1 kgf-m, 15.5 lb-ft)
