9A-5 Wiring Systems:
How to Read Connector Codes and Terminal Nos.
S7RS0B9101005
1) Connector code/Terminal No./Terminal layout

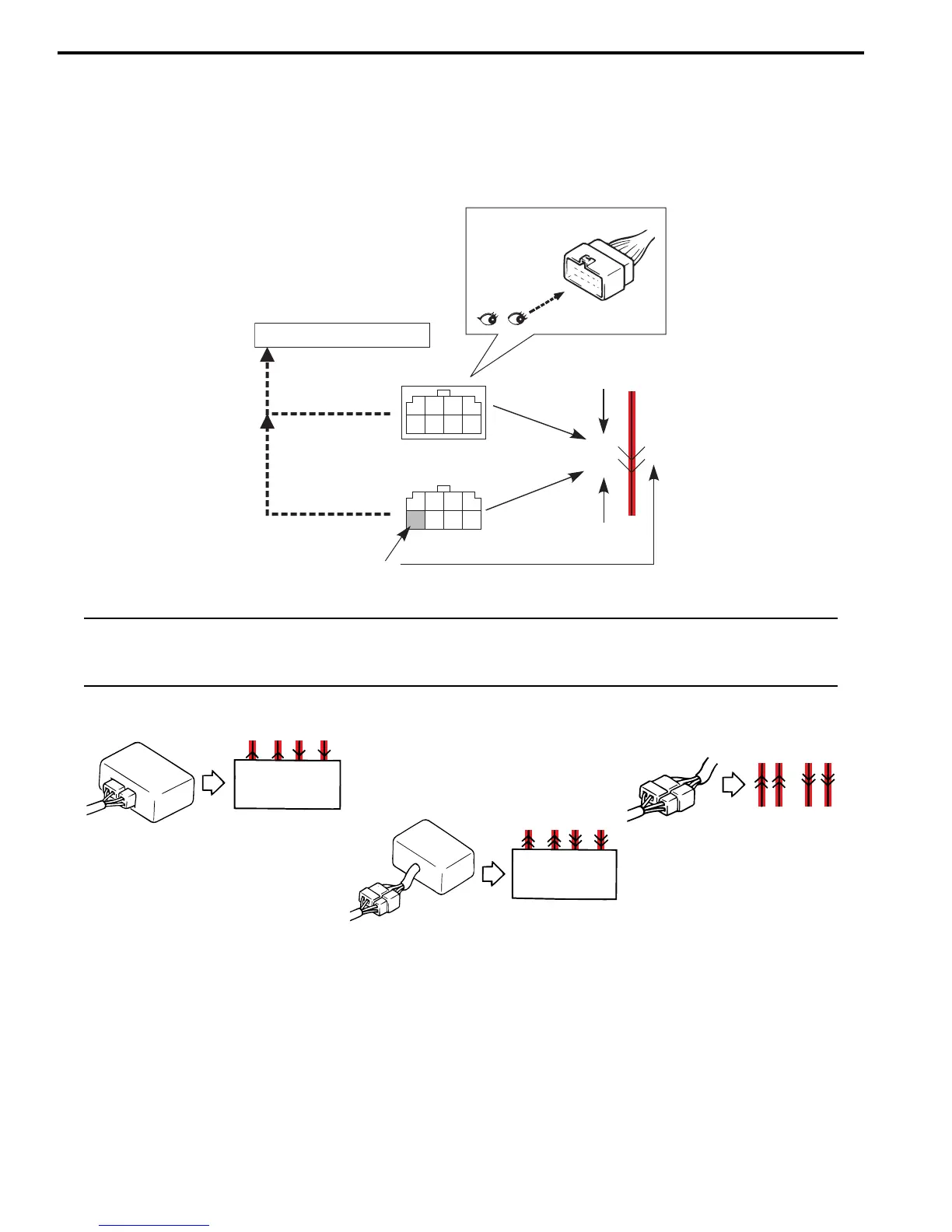

• The connector shape and terminal layout shown in this manual are those when viewed from “Z” in the
illustration.
Refer to “List of Connectors”.
NOTE
Molded terminal numbers that are different from the above can be found on some connectors in rare
cases.
These molded numbers are not applied in this manual.
2) Connector type
A40
(View Z)
(View Z)
1
123 4
567 8
234
5678
D18
5
D18
A40
Connector code.
Connector code.
Terminal No.
"CONNECTOR LIST"
Male terminal
Female terminal
Z
View Z
I5RW0A910988-02
I2RH01910903-01
