Seats: 9G-1
Body, Cab and Accessories
Seats
Repair Instructions

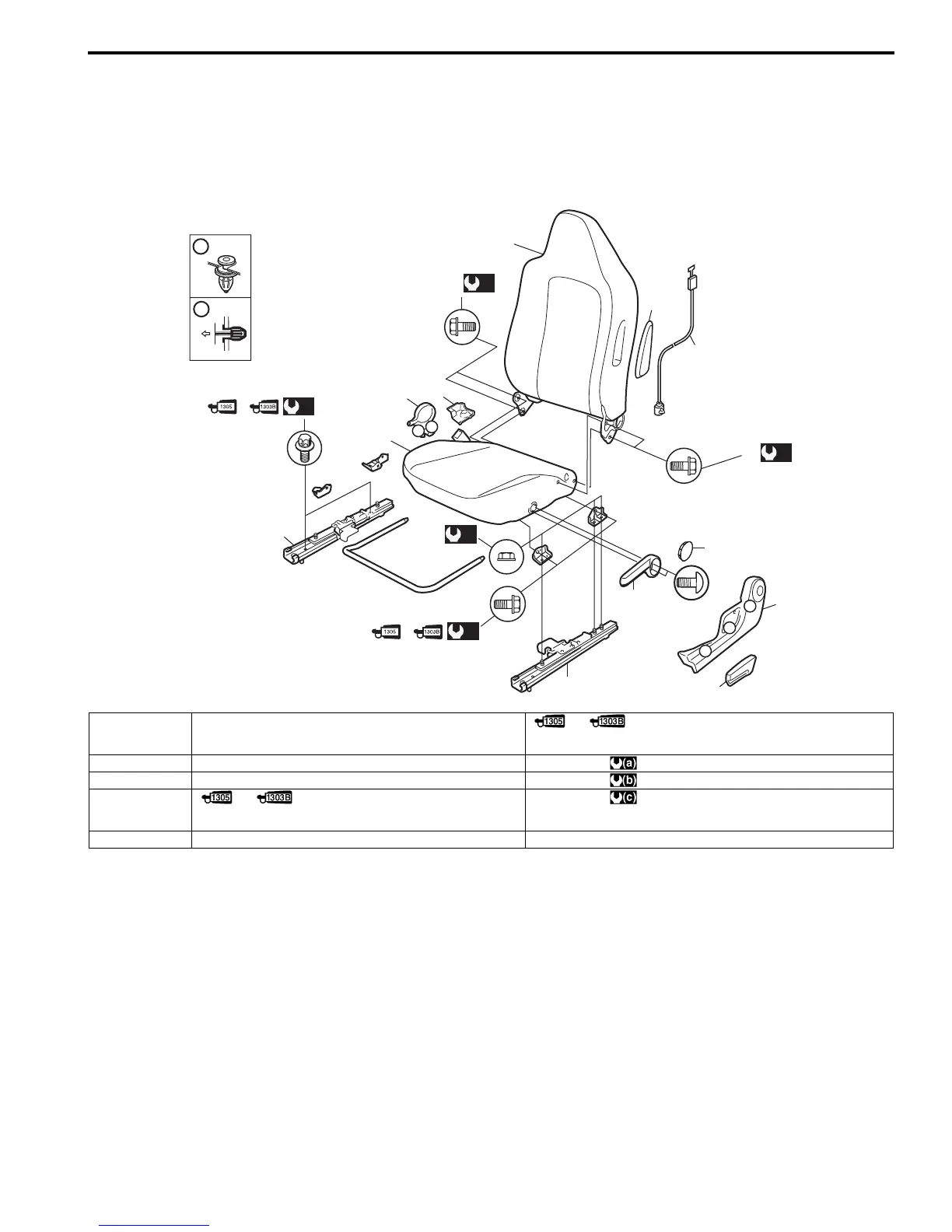

Front Seat Components
S7RS0B9706001
2
4
1
3
11
6
3
4
6
7
8
(b)
(b)
10
5
(a)
or
9
4
5
(c)
(b)
10
or
A
A
B
A
B
B
A
I6RS0C970001-02
1. Seat cushion 6. Knob or 11. Riser bolt
: Apply thread lock 99000-32100 or 99000-32030
to all around thread part of bolt.
2. Seat back 7. Side air bag module (if equipped) : 23 N⋅m (2.3 kgf-m, 17.0 lb-ft)
3. Riser nut 8. Side air bag harness (if equipped) : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft)
4. Cover or 9. Seat mounting bolt
: Apply thread lock 99000-32100 or 99000-
32030 to all around thread part of bolt.
:28 N⋅m (2.8 kgf-m, 20.5 lb-ft) (Seat lifter type)
35 N⋅m (3.5 kgf-m, 25.5 lb-ft) (Non seat lifter
type)
5. Seat adjuster 10. Seat back mounting bolt
