Ricoh MP CW2201 Service Manual

Wiring Roll Unit 2

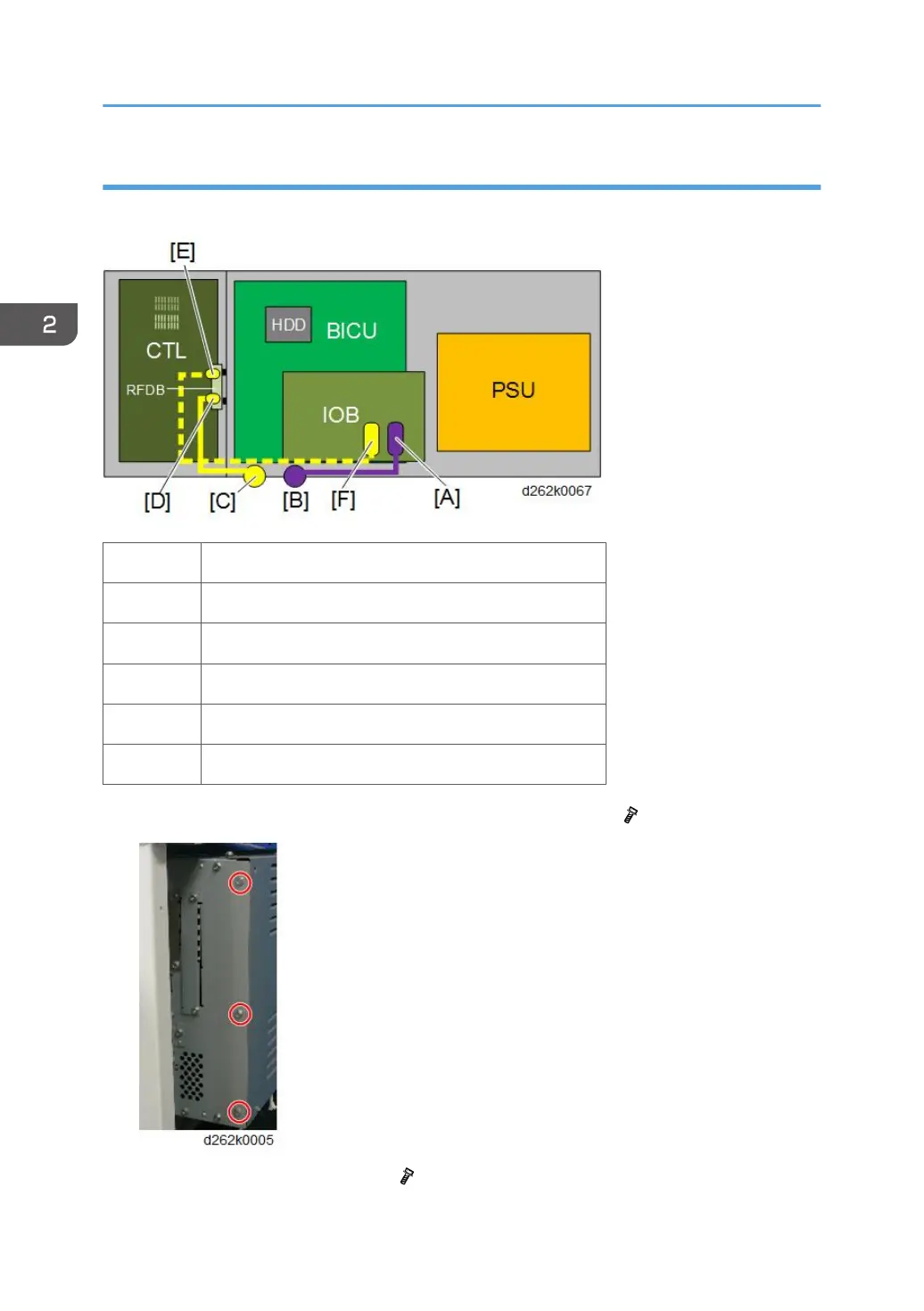

Connect Roll Unit 2 to the machine. The figure below shows the wiring example.
[A] IOB CN254
[B] Harness bracket of Roll Unit 1
[C] Harness bracket of Roll Unit 2
[D] RFDB CN301
[E] RFDB CN300
[F] IOB CN255
1. Remove the screws on the left cover of the rear of the machine ( x3).
2. Remove the screws circled in red ( x3).
2. Installation
96
