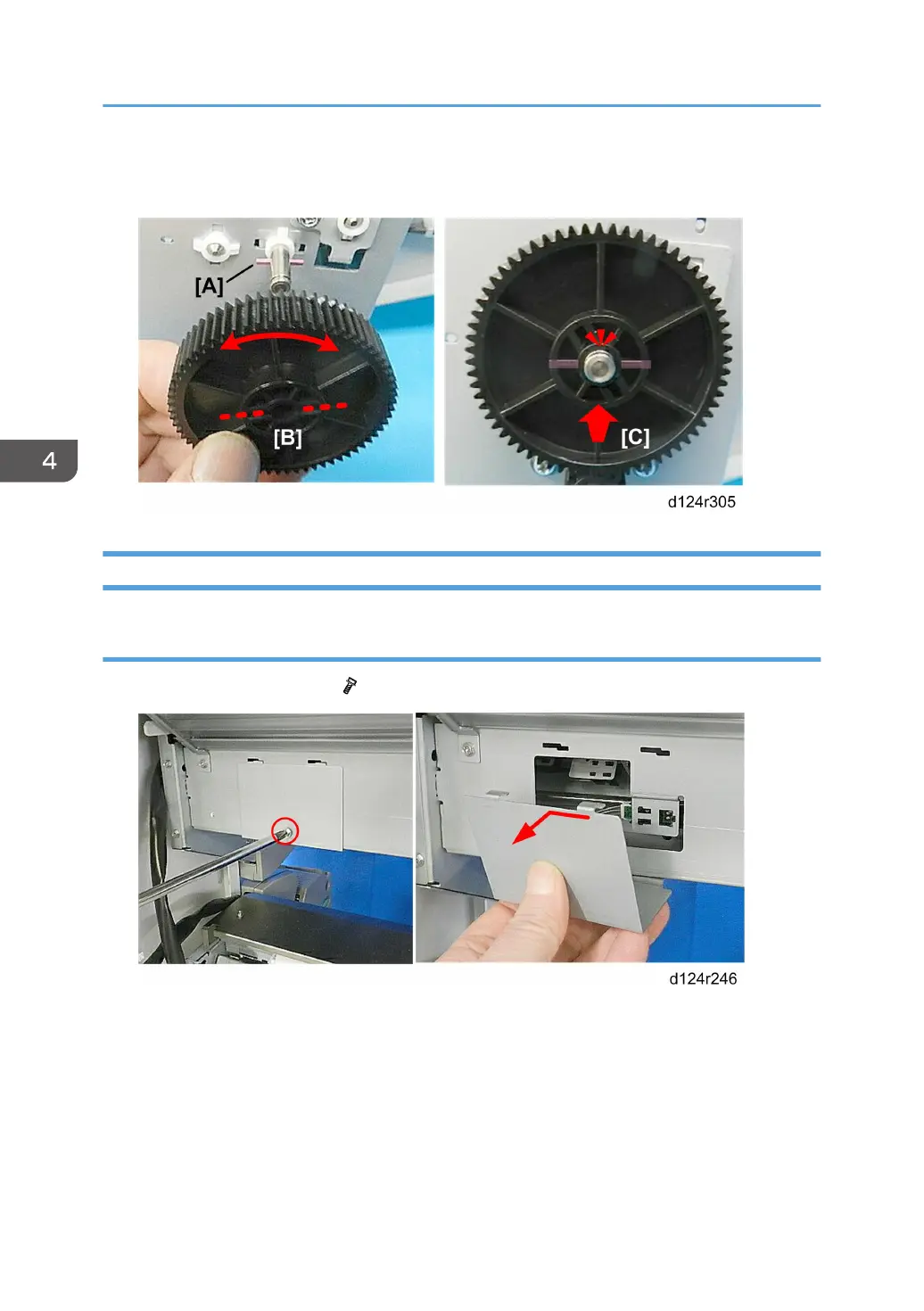

10. Push the gear [C] onto the shaft so that the pin locks into the groove on the back of the

gear.

Paper Release Sensor

Remove

1. Remove the sensor cover ( x1).

4. Replacement and Adjustment

342
