Remove
1. Rear cover (p.544).
2. Remove the IOB (p.558).
3. Remove the HDD (p.560).

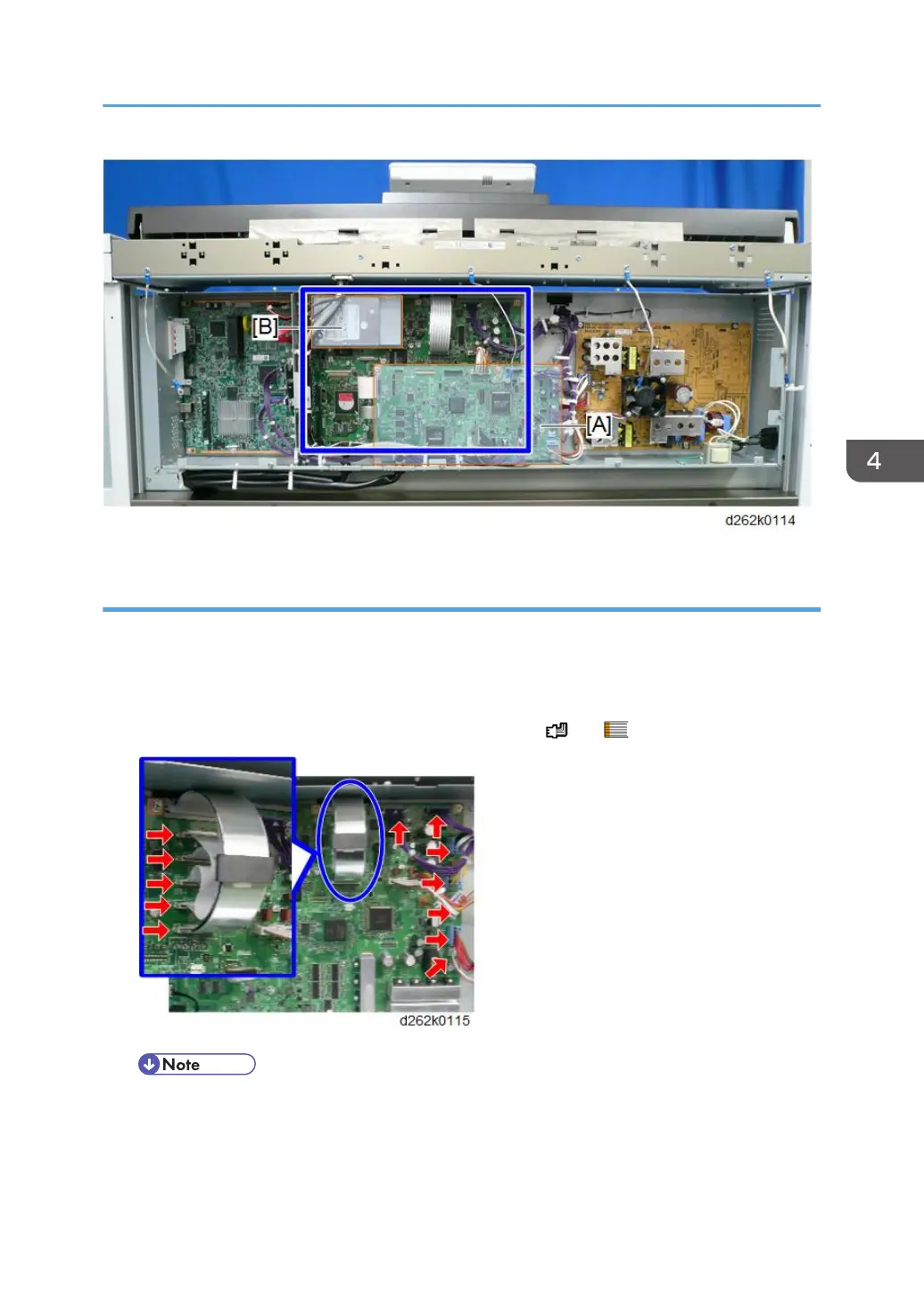

4. Disconnect the connectors shown in the figure below ( x7, x5).
• Remove the clamp [A] of the FFC by pushing it towards the BiCU.
Electrical Components
563
