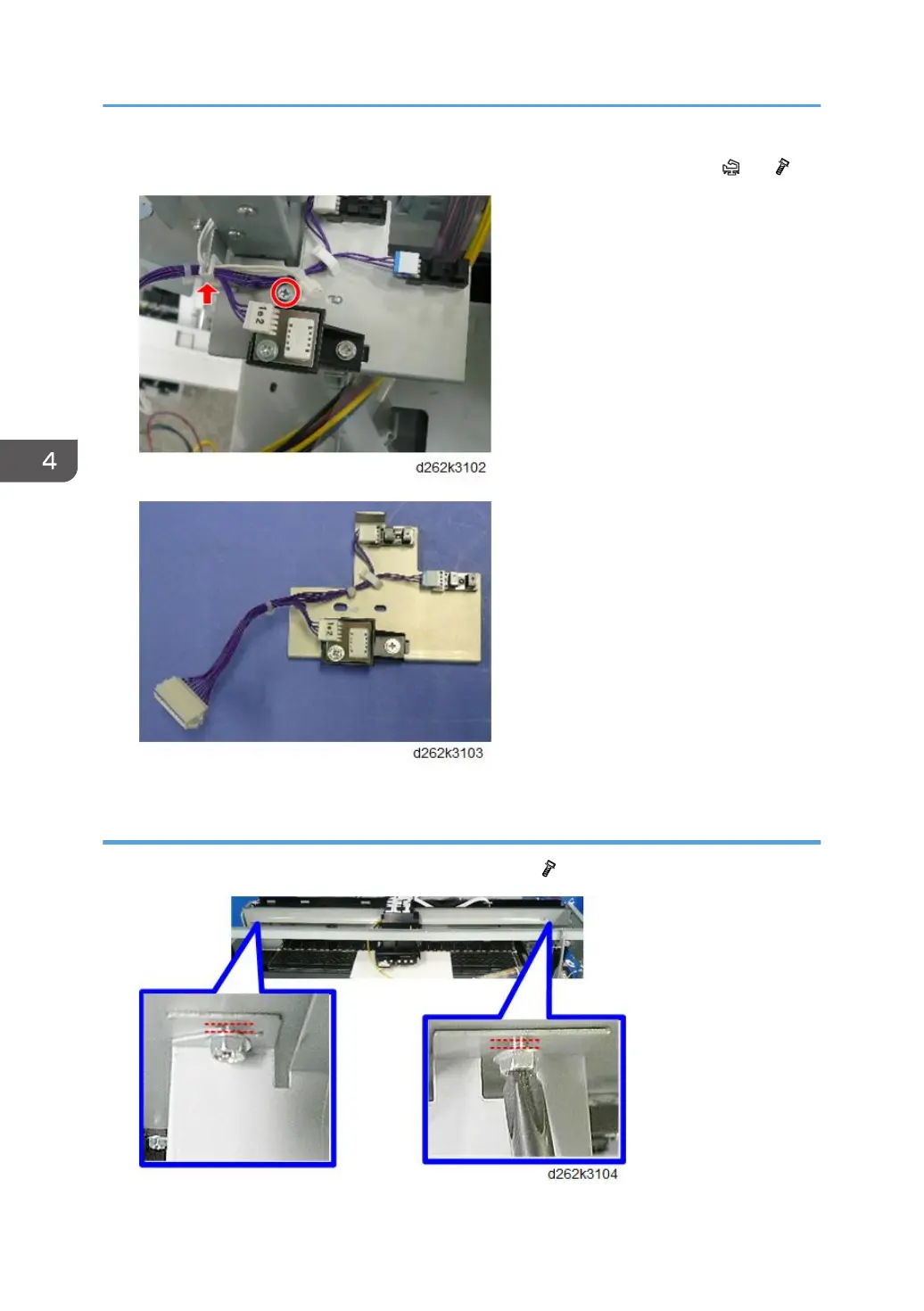

2. Remove the main ink level sensor bracket on the right front of the main unit. ( x2, x1)

Ink Tube Rail Removal

1. Loosen the right and left screws on the ink tube rail. ( x2)

4. Replacement and Adjustment

476
