Ricoh MP CW2201 Service Manual

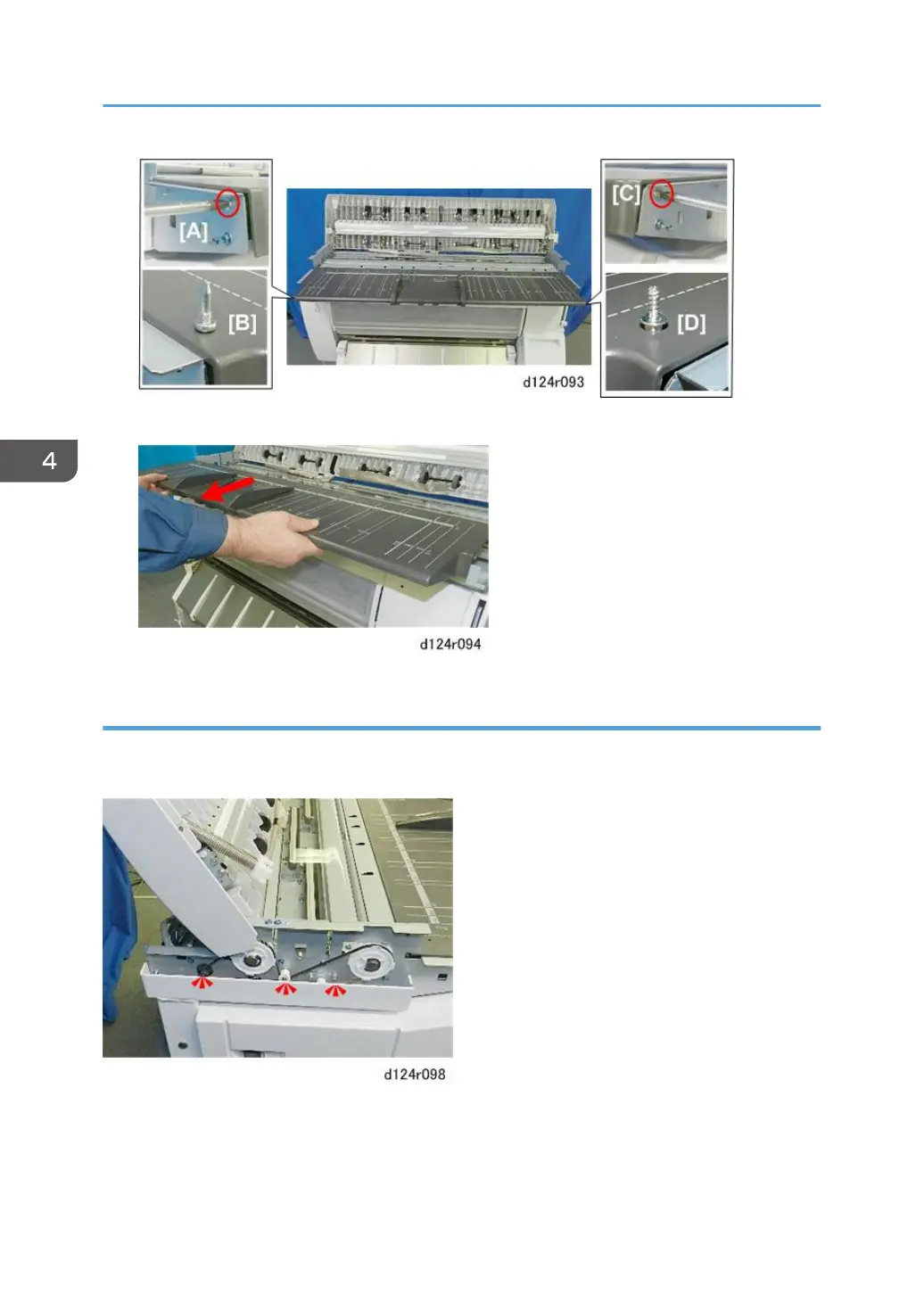

5. Remove the original table.
Raise the Left Side of the Scanner Unit.
To remove the screw behind the edge of the scanner rack without removing the rack from the scanner
unit, place the scanner unit above the edge of the scanner rack.
1. Separate the scanner unit and the main unit (p.274).
2. Remove the scanner rear cover (p.260).
3. Remove the scanner left cover and scanner right cover (p.260).
4. Replacement and Adjustment
262
