4. If the left sump is being replaced:
• After installing the new left ink sump, turn on the machine and go into the SP mode.
• Open SP2505-001 and touch [EXECUTE] to clear the counter for the left ink sump.
• Cover the slits on top of the left ink sump with the covers provided with the new unit.
• Obey the local laws and regulations regarding disposal of items such as waste ink tanks that
contain waste ink.
Ink Collector Unit

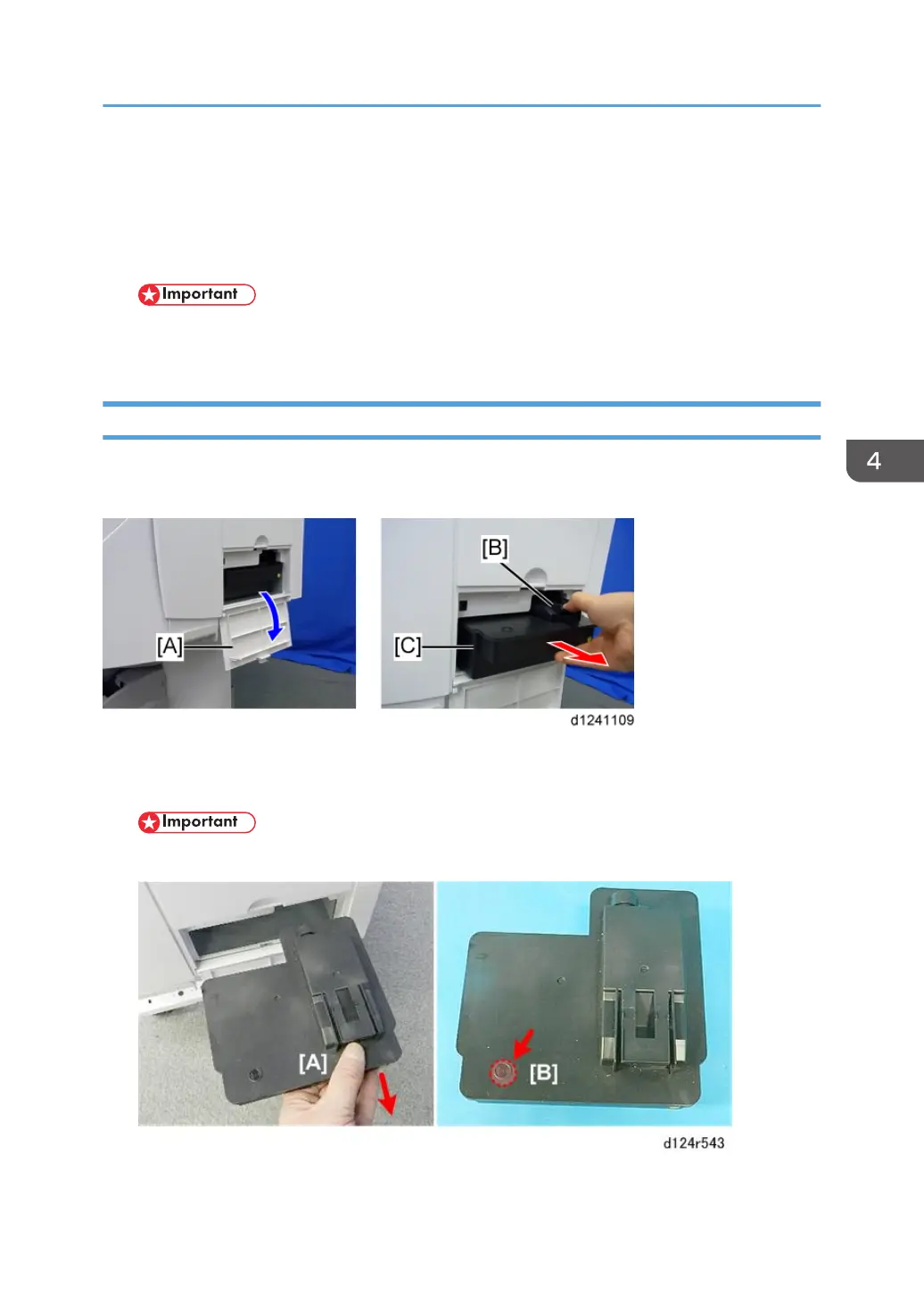

Open the ink collector cover on the right side of the machine [A]. Push the lever [B] and pull out the ink
collector tank [C] from the main unit.
1. Depress the release [A], and then pull the tank straight out of the machine.
2. Lay the tank on a flat surface with the port [B] facing up.
• The port at [B] is open and will leak ink if the tank is turned on its side or turned upside down.
Maintenance Unit, Waste Ink Collection
531
