Adjustment

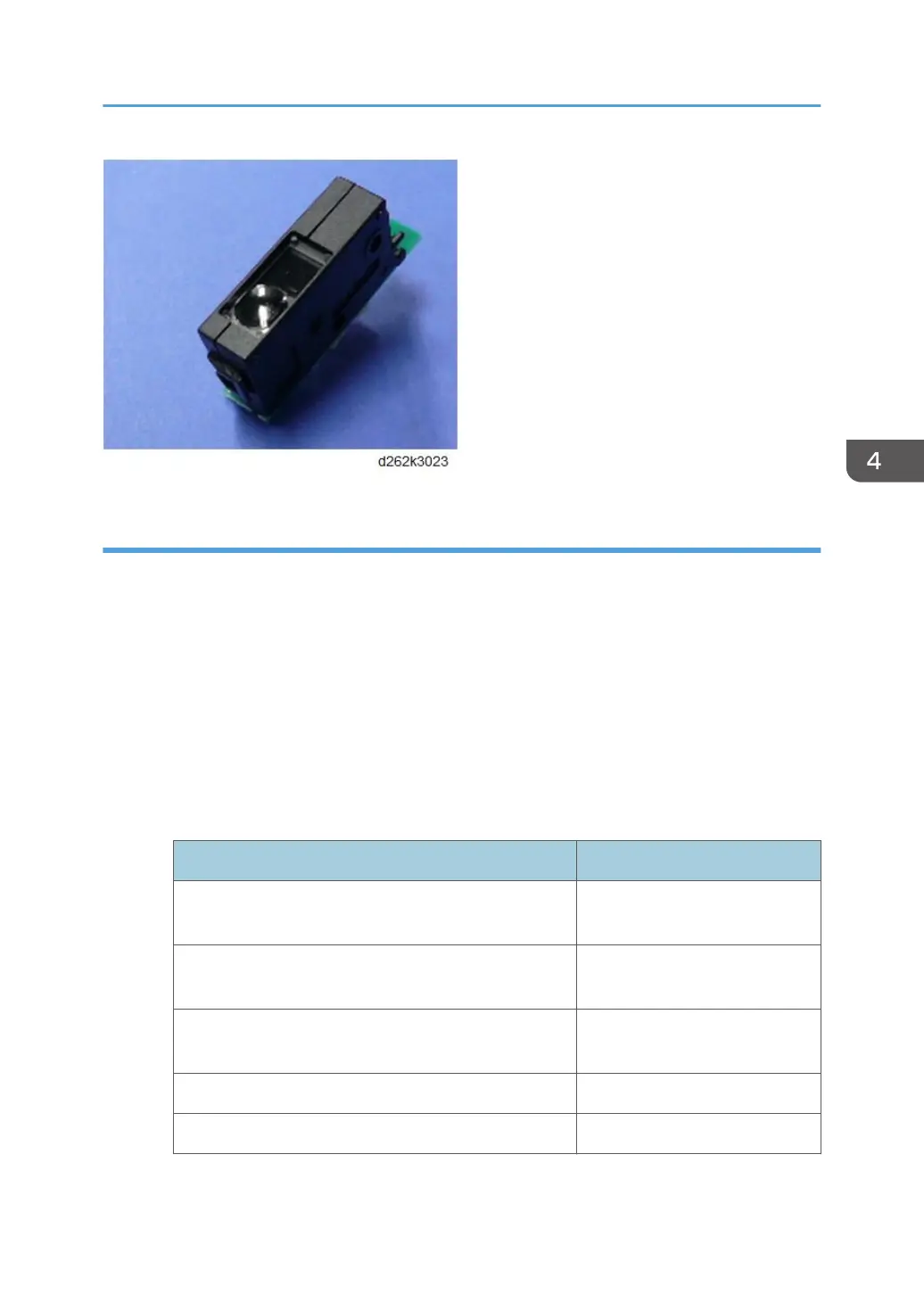

After replacing the DRESS sensor, adjust the paper edge detection delay, following the procedure
below.
Paper Edge Detection Delay Adjustment
1. In system settings, make settings for the roll unit 1 as follows:
Paper size: 914 mm (36 inches)
Paper type: Not displayed (plain paper)
2. Set the roll unit (plain paper) whose size is different from the setting, with this setting
retained.
3. Enter SP mode and make the settings described below.
SP Settings
SP4-417-001 (IPU Test Pattern Setting: test pattern
select)
3: Grid Pattern A
SP4-012-007 (Scanner Edge Margin: DF: left)
0 (Retrieves the original value
after adjustment)
SP4-012-008 (Scanner Edge Margin: DF: right)
0 (Retrieves the original value
after adjustment)
SP2-103-003 (Printing Erase Margin: left edge) 3.0 mm
SP2-103-004 (Printing Erase Margin: right edge)) 3.0 mm
Carriage Unit
411
