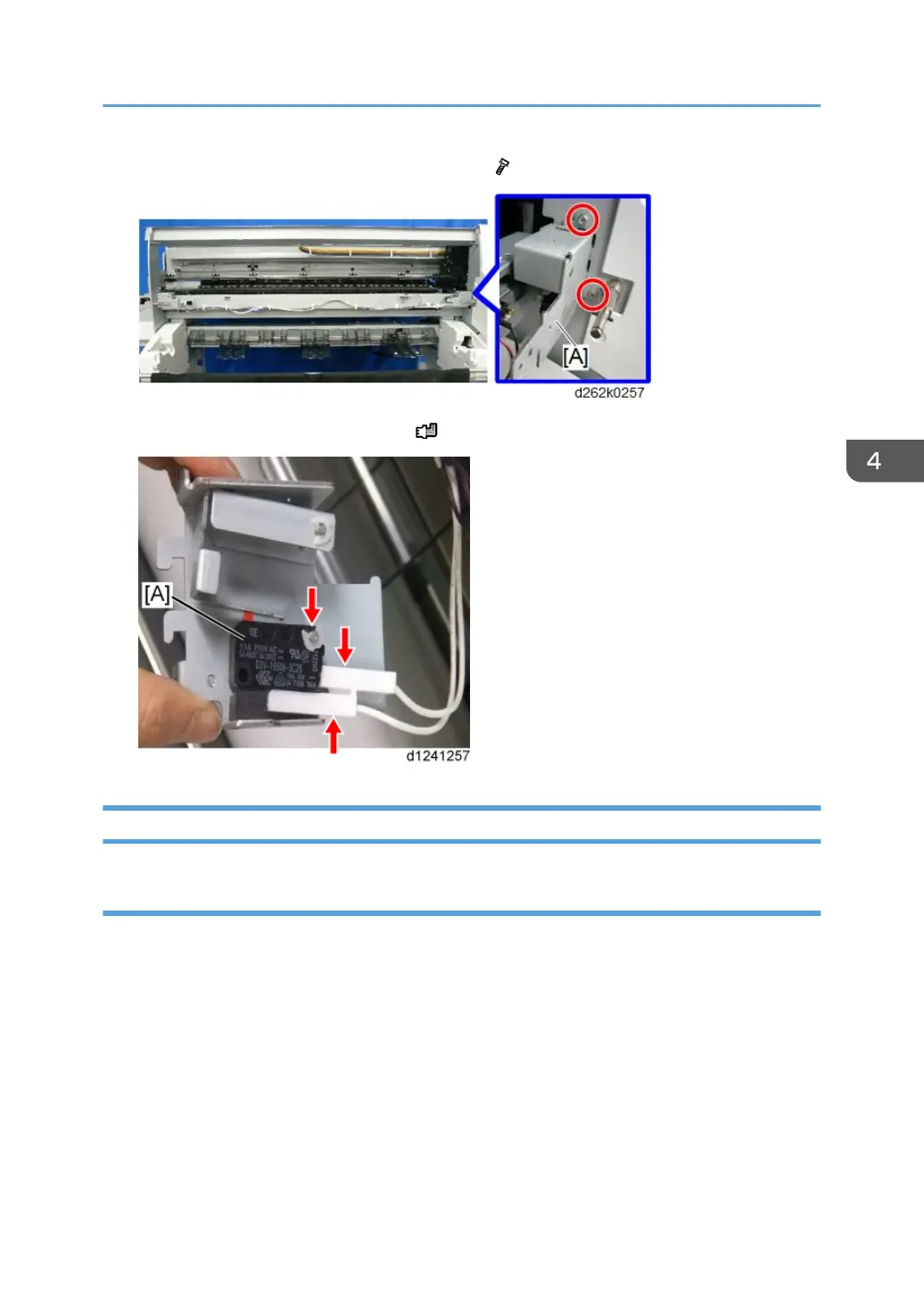

3. Front cover safety switch assembly (right) [A] ( x2).

4. Front cover safety switch (right) [A] ( x2, snap ring x1).

Front Cover Switch

Remove

1. Left cover (p.234).

2. Open the front cover.

3. The front cover switch is placed on the left of the main unit and outside of the support.

Sensors, Switches

575
