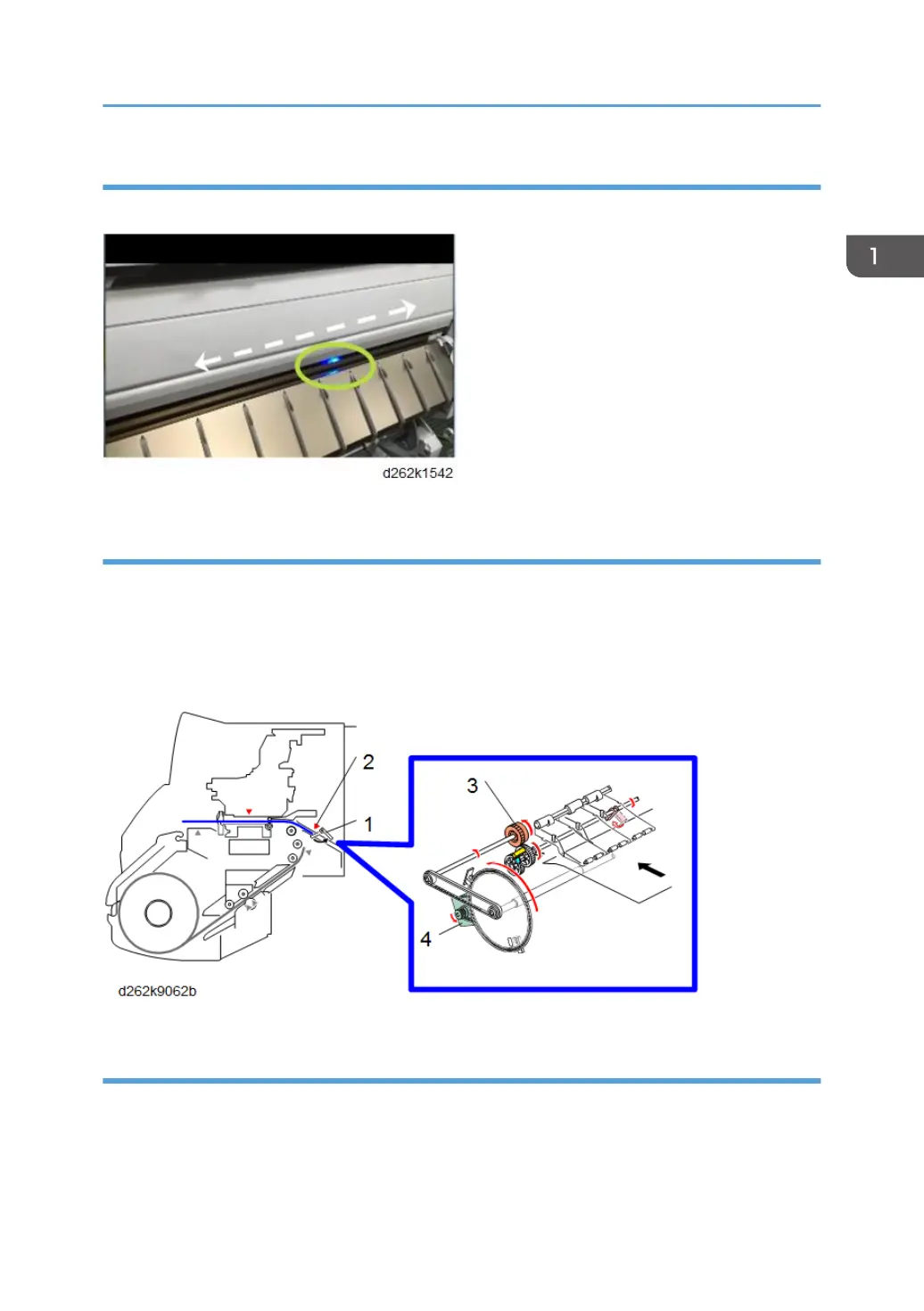

Carriage LED Lamp
An LED on the carriage lights during operation to prevent users from opening the front cover by mistake.
New Bypass Feed
For bypass feed, the user manually feeds a sheet of paper into the front of the machine until the paper
edge contacts the stopper [1].
When the bypass sensor [2] detects the paper, the machine grabs the paper and feeds it through the
machine. On this time, the bypass stopper clutch [3] is ON and then the stopper opens in coordination
with the vertical motor [4].
Manual Cut
Manual Cut is to fed and discard paper that is damaged by moisture or paper jam.
Overview
33
