• Notice to the customer that the document box data and address data will be deleted when an
HDD is replaced so that the re-registration is required if the data are necessary.
• If the IC-card personal authentication has been set, the settings will be cleared and resetting is
necessary when the HDD is replaced.
• Format the new HDD with SP shown below and download the fixed stamp data to the HDD.
1. Set the main power switch to ON and enter the SP mode using the operation panel.
2. Do SP5-832-001 to format the HDD.
3. Do SP5-853-001 to download the fixed stamp data.
4. Finish the SP mode and set the main power switch off and on again.
BiCU (Base image Control Unit)

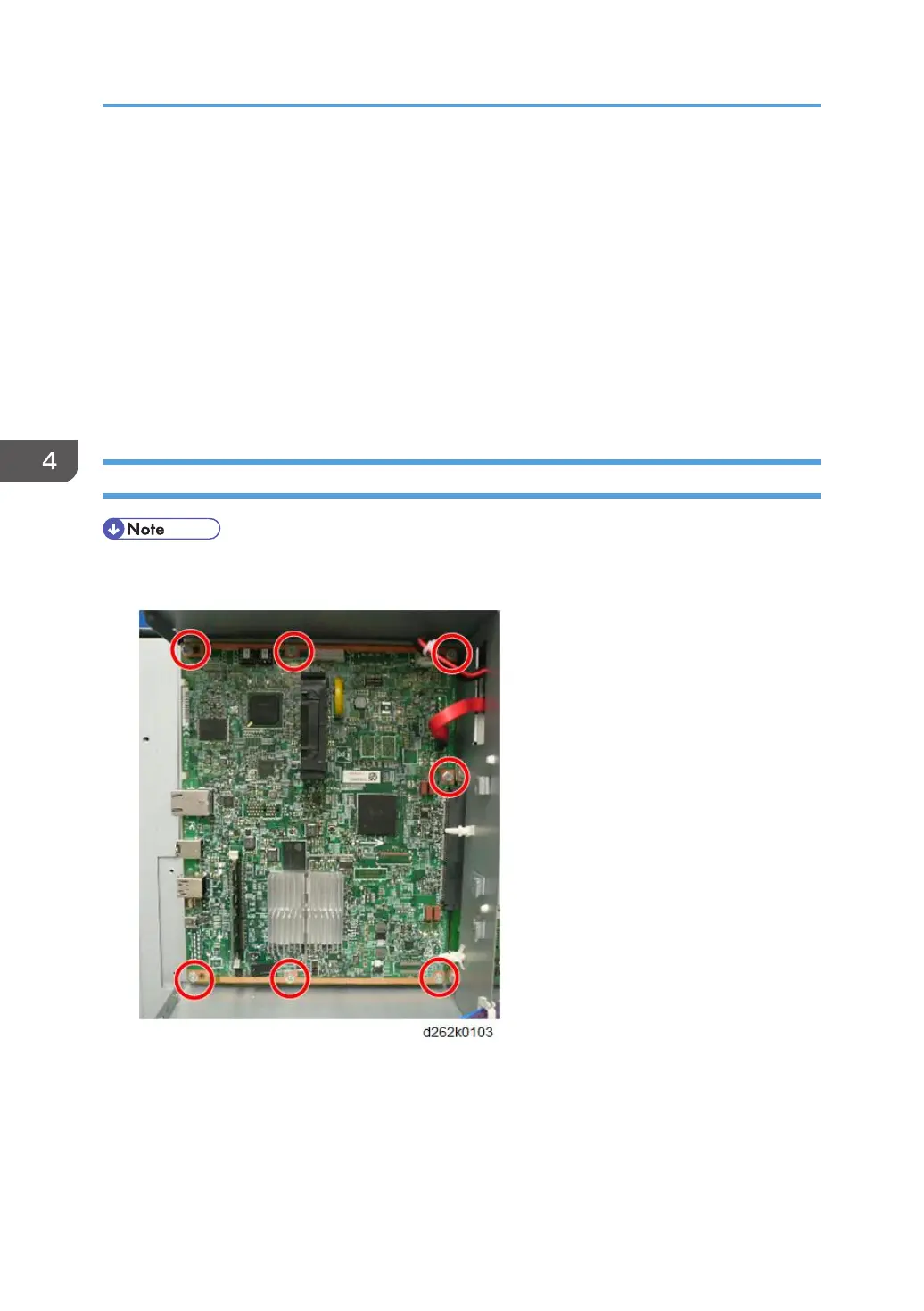

• To attach the BiCU, loosen the screws on the controller board, attach the BiCU, and then tighten
the screws on the controller board and BiCU.
The blue frame shows the location of the BiCU in the POB box (back of the IOB [A] and HDD bracket
[B]).
4. Replacement and Adjustment
562
