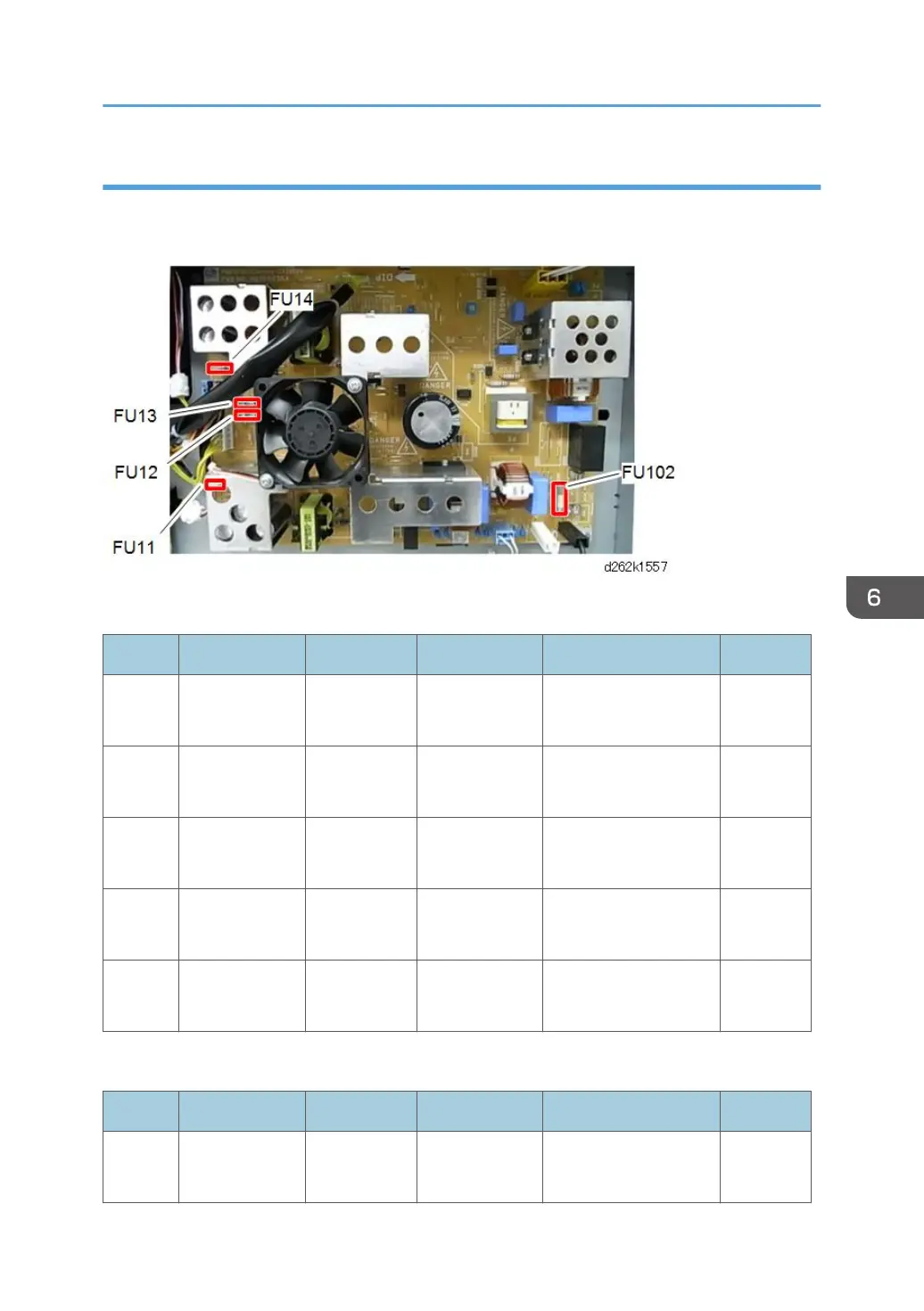

PSU (Power Supply Unit)

The PSU is placed at right in the PCB box.

DC voltage is loaded to the main unit.

Fuse (100 V)

Name Output terminal Capacity Voltage Type Part No.

FU102 CN904-3

T10A

250V

AC Input protection ‐

FU11 CN911-3

T5A

250V

5.1V BiCU ‐

FU12

CN912-5

CN912-6

T10A

250V

24V IOB ‐

FU13 CN912-7

T10A

250V

24V IOB ‐

FU14 CN912-8

T10A

250V

24V IOB ‐

Fuse (200V)

Name Output terminal Capacity Voltage Type Part No.

FU102 CN904-3

T5A

250V

AC Input protection ‐

Fuses

767
