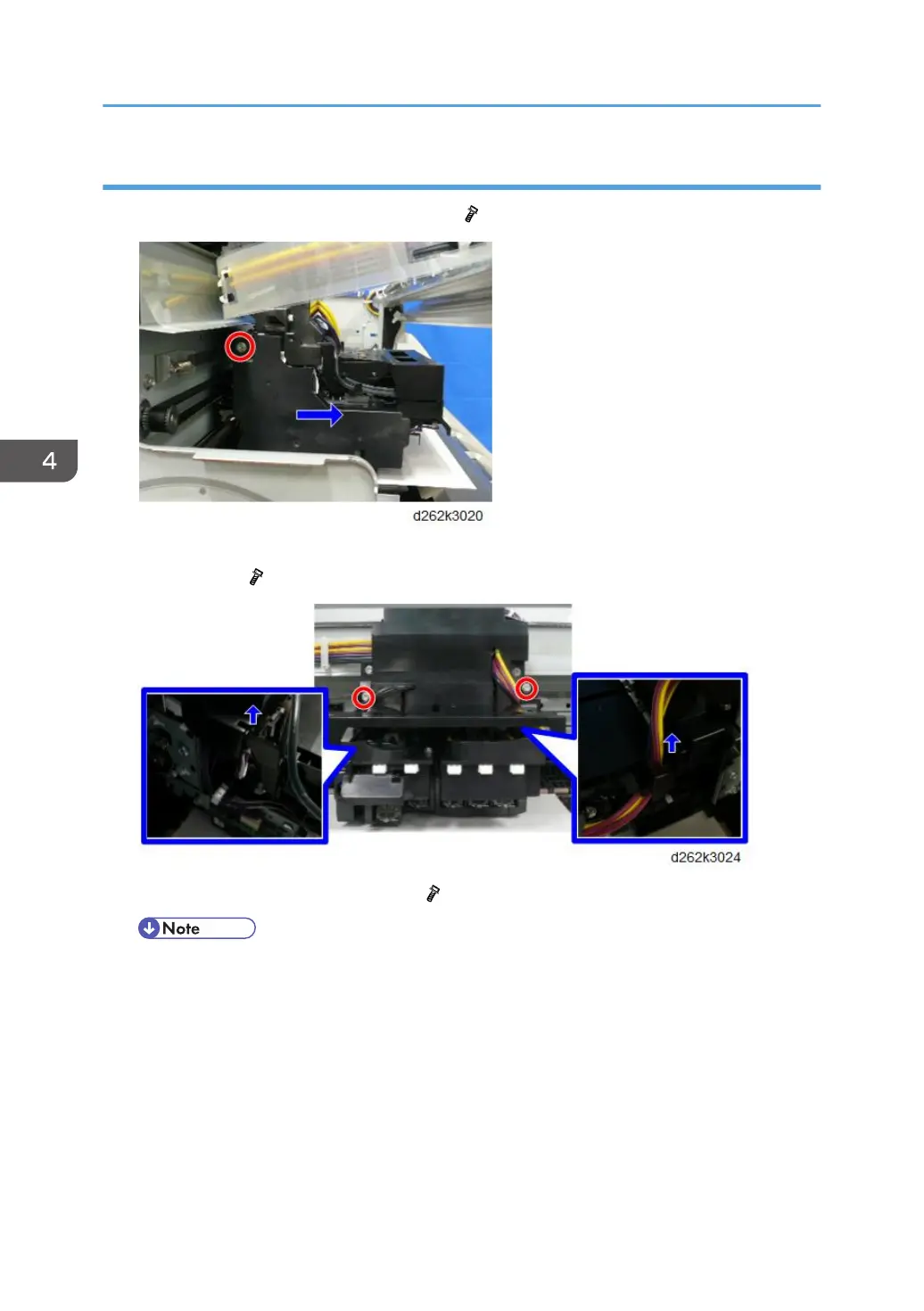

Carriage Disconnection
1. Remove the left cover of the carriage unit ( x1).
2. Remove the carriage top covers that secure the ink tube at both left and right of the
carriage unit ( x2).
3. Remove the carriage front cover [A] ( x2).
• When the carriage front cover is to be removed, pull the ink tube out from the groove.
4. Replacement and Adjustment
506
