Print Head Unit
• Before starting the task of changing the print head unit, set the main power switch to OFF and back
ON to terminate the maintenance operation of the print head unit to be changed. Then the
maintenance operation for the old print head unit will be prevented from being performed for the
new print head unit.

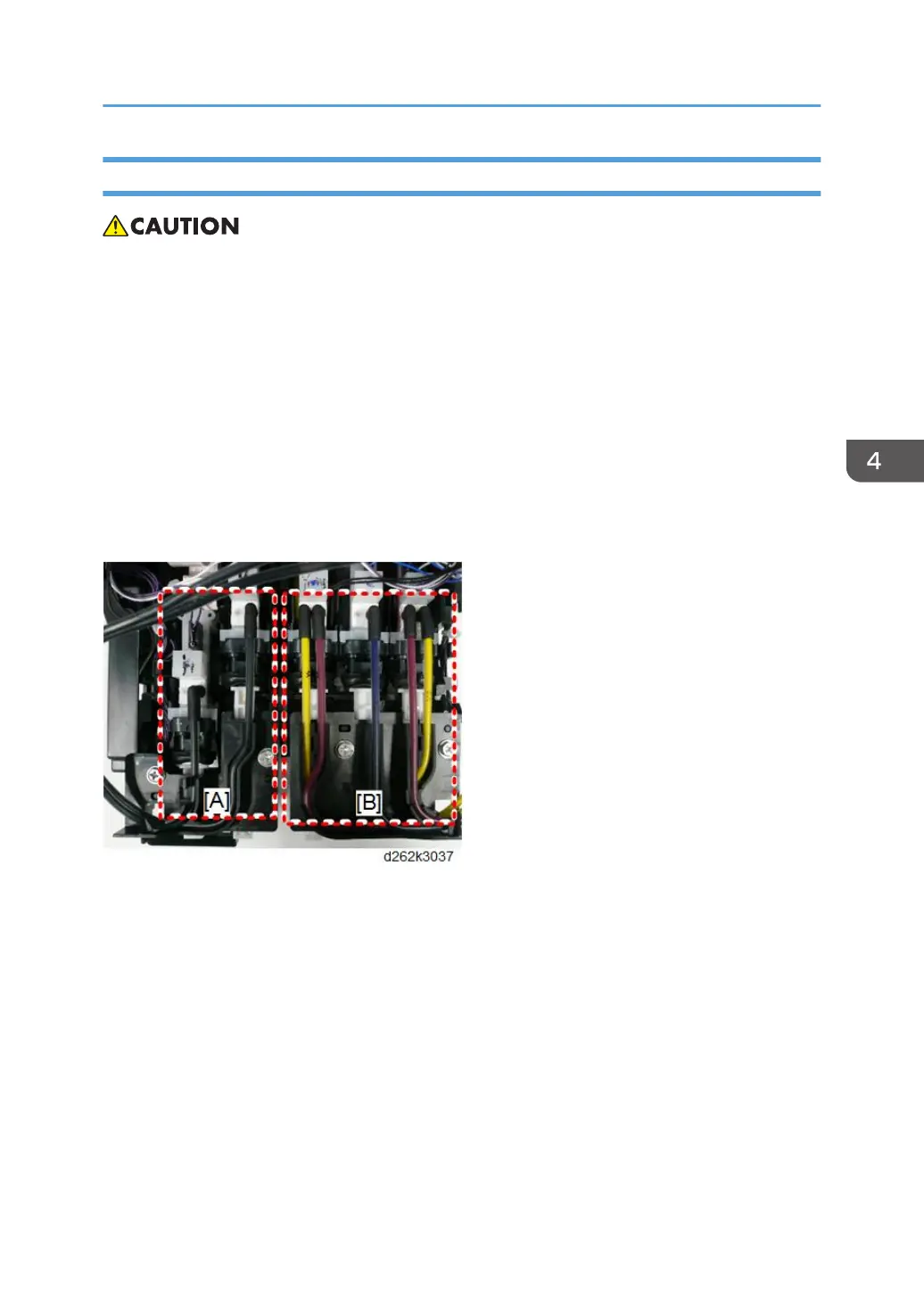

The unit on the left is the black print head unit ([A] in the figure below). It includes print heads and head
tanks for K1 and K2.
The unit on the right is the color print head unit ([B] in the figure below). It includes print heads and head
tanks for Y1, M1, C, M2, and Y2.
The print head and head tank cannot be replaced separately. To change the print head and head tank,
change the print head unit.
The black and color print head units [A] and [B] can be replaced separately or simultaneously.
Carriage Unit
425
