Main Scan
• Set the main power switch to OFF and disconnect the power plug from the power outlet before
performing the procedure below. Working with power supplied may cause electrical shock or
defects.
Horizontal Encoder Sensor
Remove
1. Decap the print head and move the carriage unit to the center of the main unit. (p.267)
• When the carriage unit is moved, ink may spill out from the print head on to the platen. To
move the carriage unit, place a sheet of regular paper under the carriage unit to protect the
platen.
• The sheet under the carriage unit should be flat, with no paper wrinkling, which could scratch
the nozzle face or cause clogging of the nozzle.
• Do not place any film under the carriage unit.
• To place the regular paper, do not pull up the paper holding lever too much (p.226).
2. Remove the top cover (p.245).

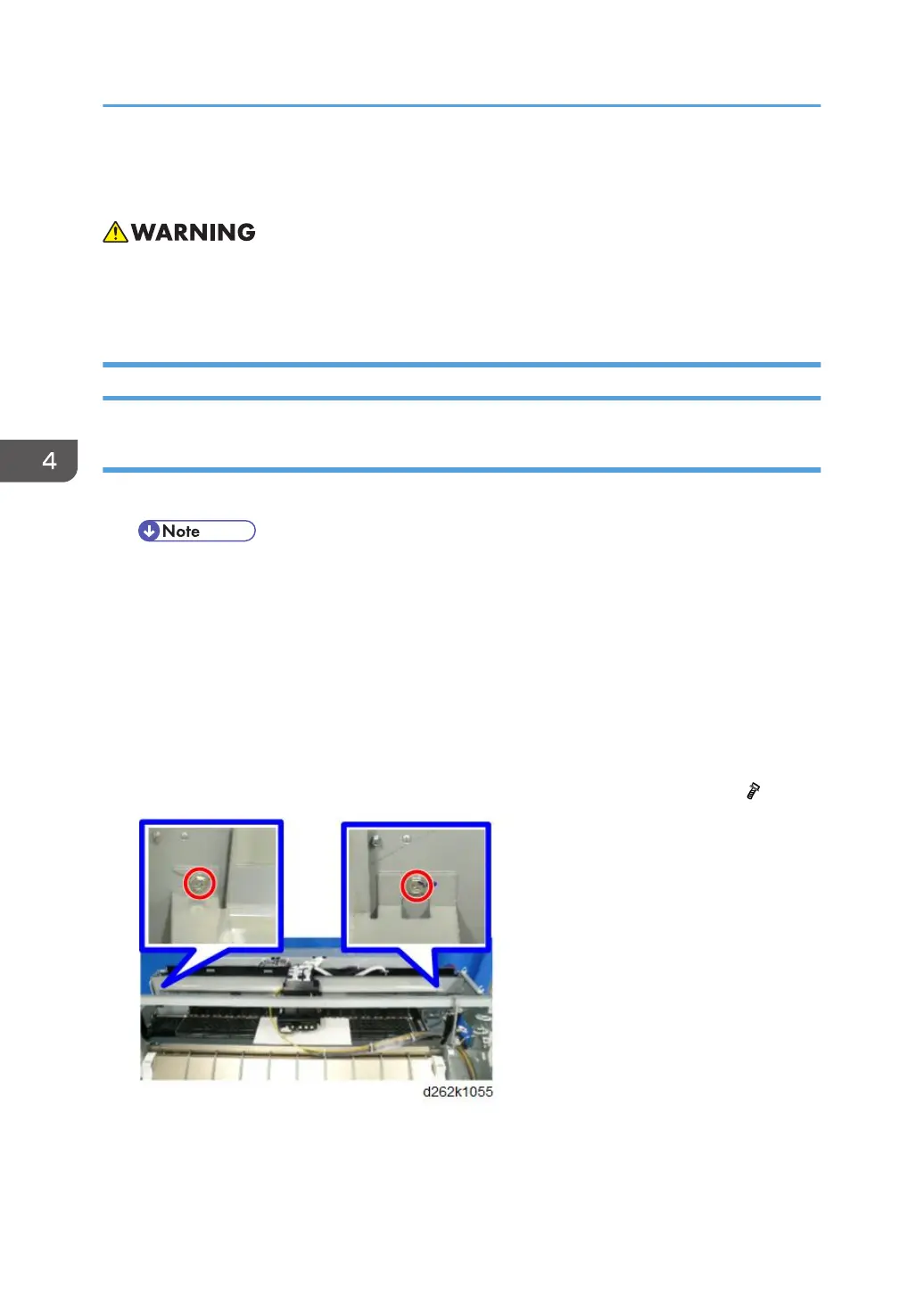

3. Loosen the screws on both sides of the ink tube rail. Do not remove the screws. (
x2)
4. Replacement and Adjustment
382
