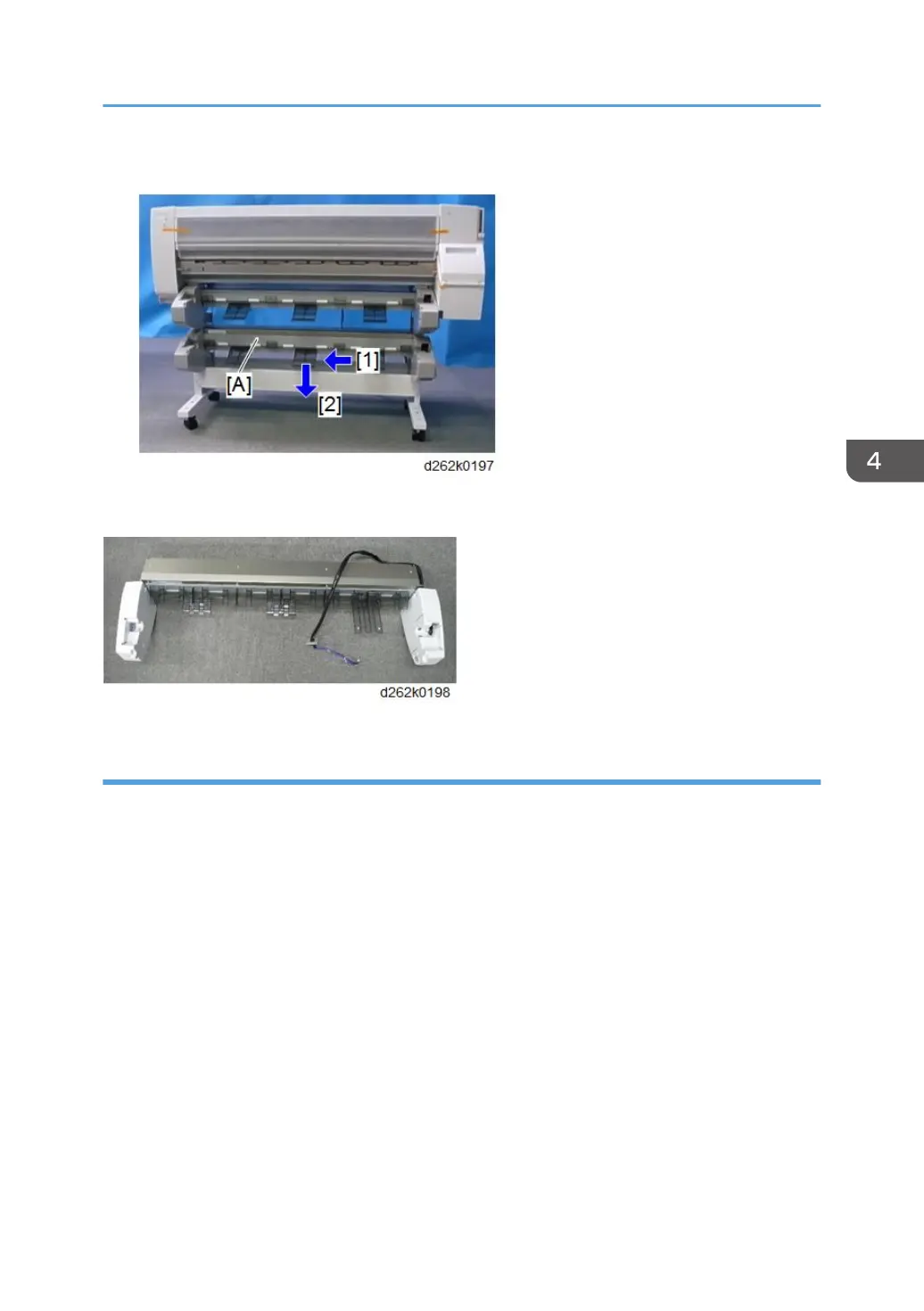

11. Push the roll unit 2 [A] slightly to the left [1], and then remove it [2].
Roll Unit 2
Precaution
1. To install the roll unit 2 at the front, push it to the right so that it locks into place.
2. At the rear, push the roll unit 2 [A] to the left to make sure that it is locked in place.
3. Use a flashlight to check hole [B] on the right and left to make sure that the holes are aligned
correctly.
Roll Units
327
