Printing

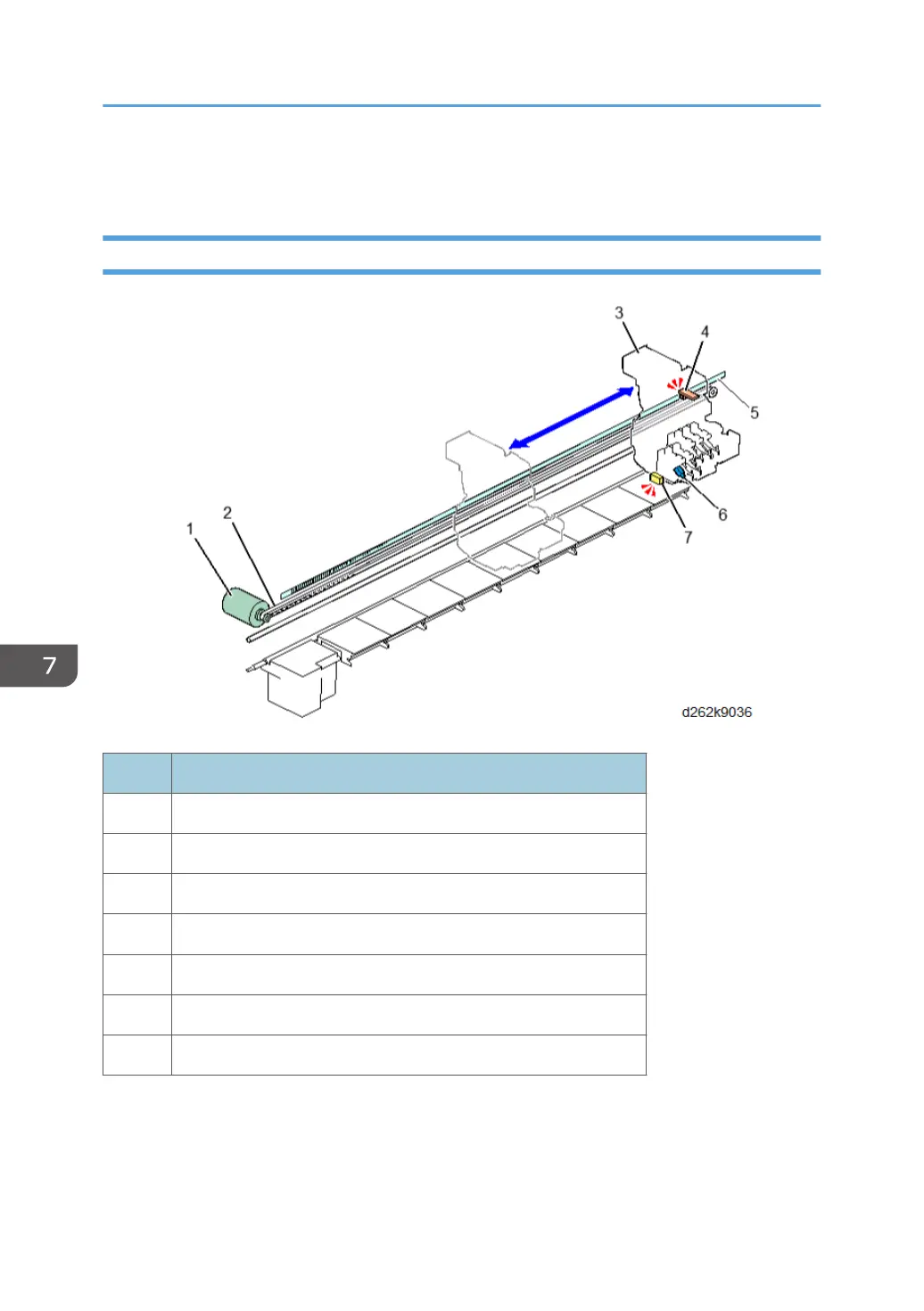

Printing Drive Mechanism
No. Item
1 Horizontal motor
2 Drive belt
3 Carriage unit
4 Horizontal encoder sensor
5 Horizontal encoder strip
6 LED indicator
7 DRESS sensor
• The horizontal motor (1), the large motor on the back of the left side of the machine, drives the belt
(2) attached to the back of the carriage unit (3). This mechanism moves the carriage unit left and
right when the motor alternately rotates forward/reverse.
7. Detailed Description
840
