Scanner Unit

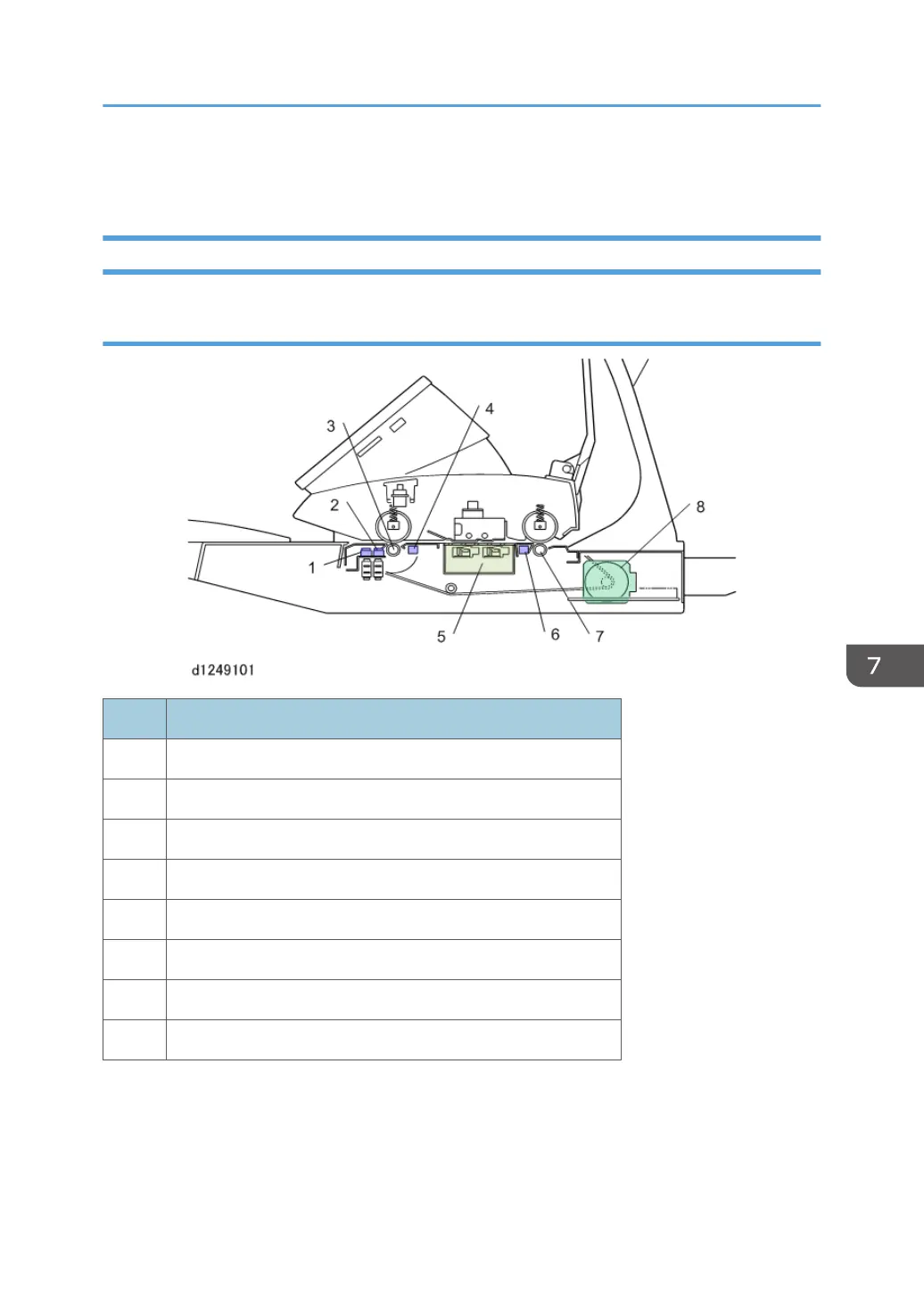

Scanner Layout
Side View
No. Item
1 Original width sensors
2 Original set sensor
3 Original entrance roller
4 Original registration sensor
5 CIS unit
6 Original exit sensor
7 Original exit roller
8 Scanner motor
• The original width sensors (1) detect the width of the original, and the original set sensor (2) detects
when the original is set by the operator.
Scanner Unit
773
