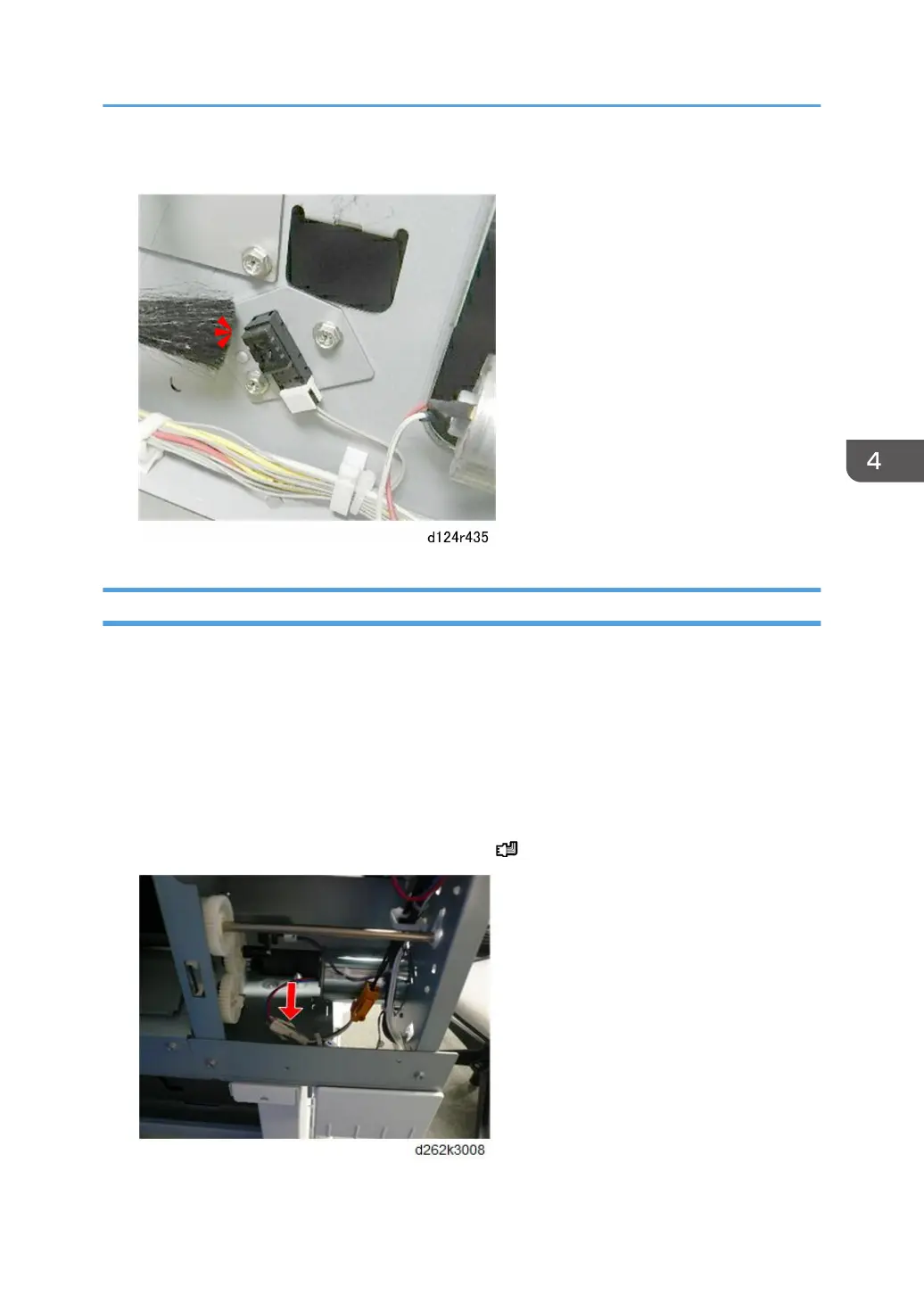

1. Clean the sensor with a blower brush.
Vertical Motor
Preparation
Remove:
• Left cover (p.234)
• Left rear cover (p.248)
• Vertical encoder sensor (p.393)
• Vertical encoder wheel (p.394)
1. Disconnect the connector of the motor bracket.( x1)
Sub Scan
399
