User Tool Height Sensor
Rotate
CCW (7
sec)
Rotate CCW
(0.5 sec)
Rotate CW
(0.15 sec)
[B] Strong 2 mm OFF to ON No Yes Yes
[C] Weak 1 mm OFF to ON Yes No Yes

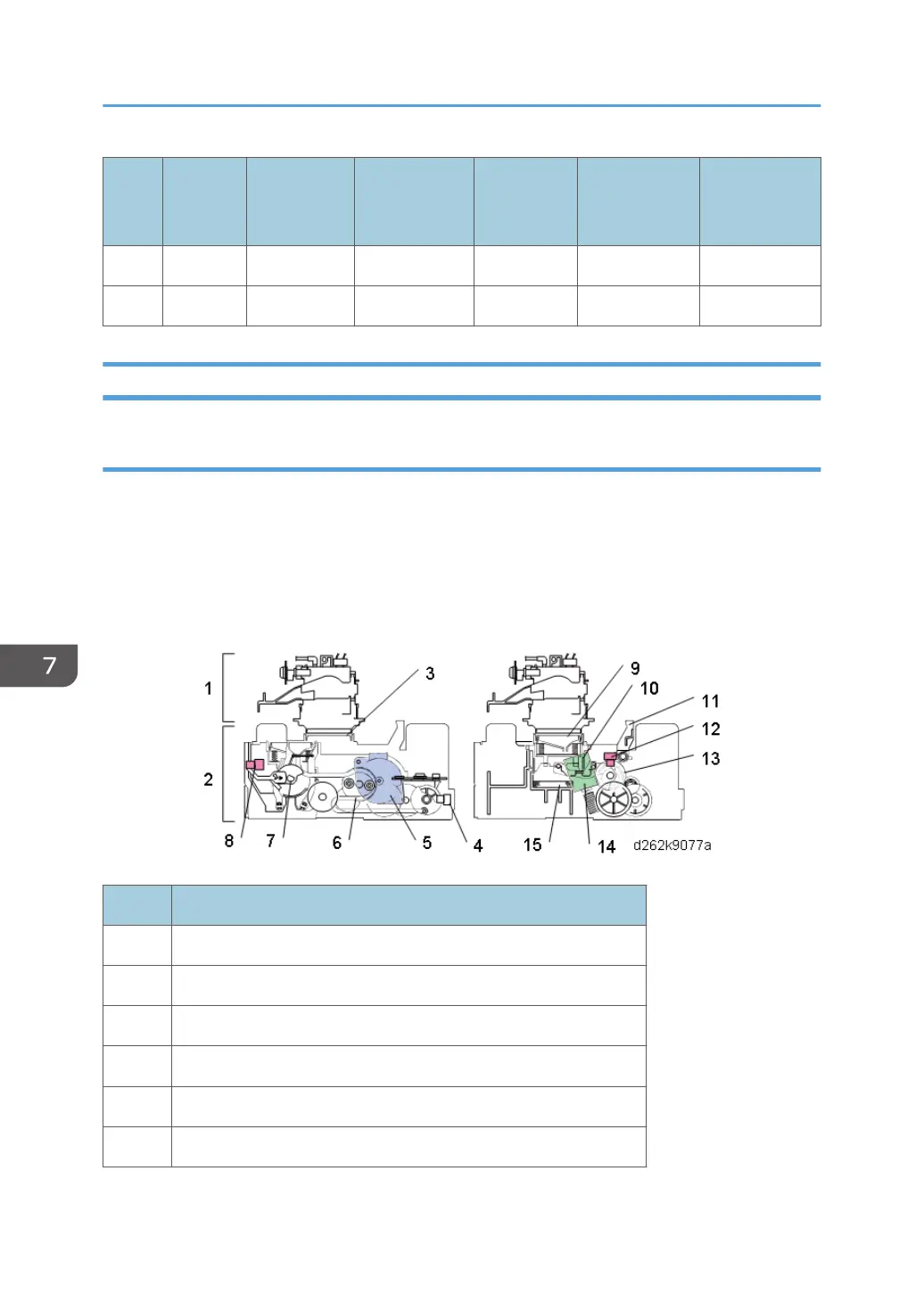

Maintenance Unit
Overview
The maintenance unit performs these important functions:
• Raises the print head caps to cap the print heads, to prevent them from drying out while the
machine is idle.
• Lowers the print heads at the start of a job, to uncap the print heads.
• Cleans the print heads when required.
No. Item
1 Carriage unit
2 Maintenance unit
3 Print head cap (K1)/Suction cap
4 Slide sensor
5 Maintenance motor
6 Suction pump
7. Detailed Description
854
