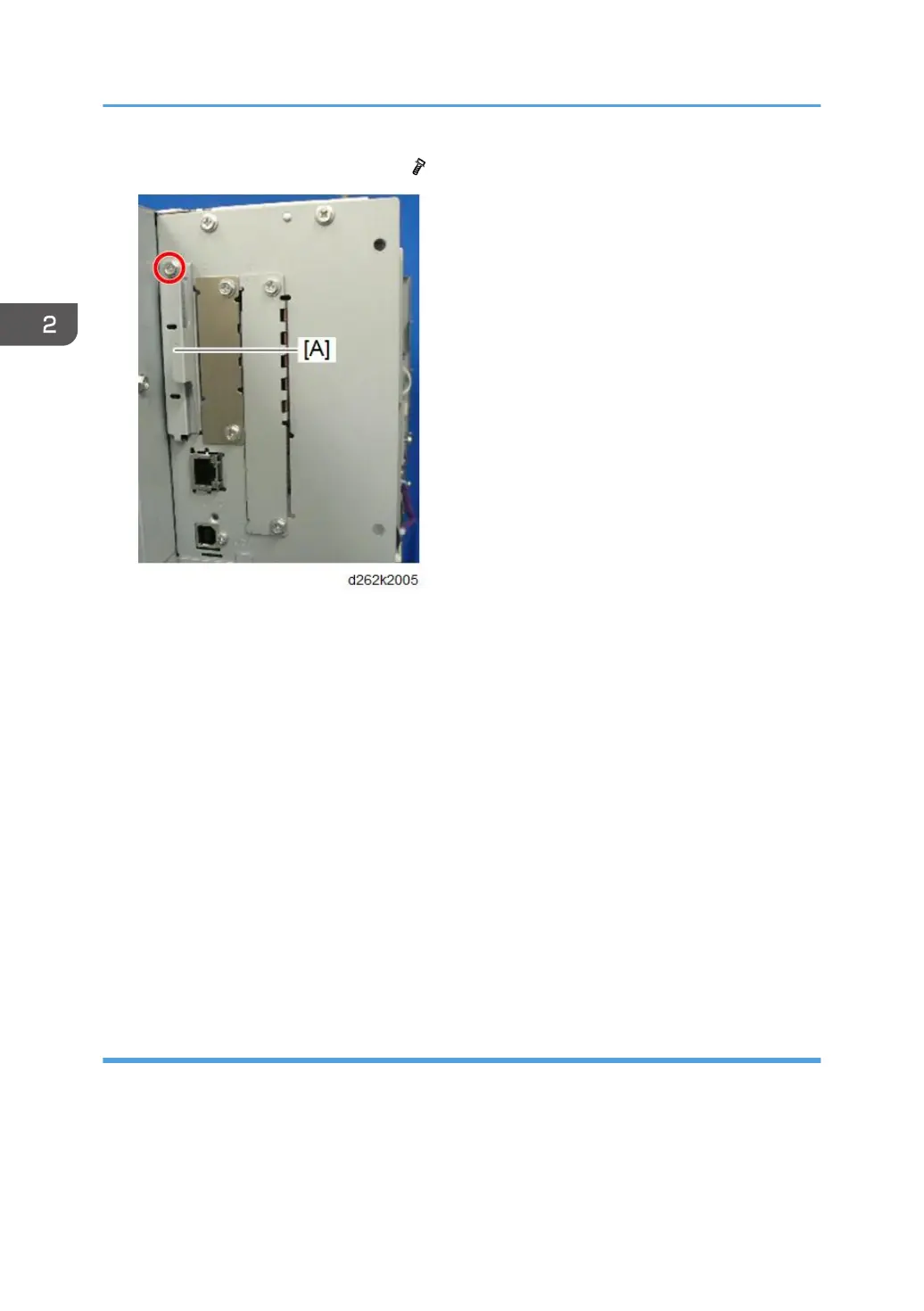

2. Remove the SD card slot cover [A] ( x2).
3. Make sure that a target SD card is in SD Card Slot 1 (upper). The application program is
moved to this SD card.
4. Insert the source SD card with the application program in SD Card Slot 2 (lower). The
application program is copied from this source SD card.
5. Turn ON the main power.
6. Enter the SP mode.
7. Select SP5-873-001 "Move Exec".
8. Follow the messages shown on the operation panel.
9. Turn OFF the main power.
10. Remove the source SD card from SD Card Slot 2 (right).
11. Attach the slot cover.
12. Turn ON the main power.
13. Check that the application programs run properly.
Undo Exec
"Undo Exec" (SP5-873-002) lets you move back application programs from an SD card in SD Card
Slot 1 (upper) to the original SD card in SD Card Slot 2 (lower). You can use this program when, for
example, you have mistakenly copied some programs by using Move Exec (SP5-873-001).
2. Installation
150
