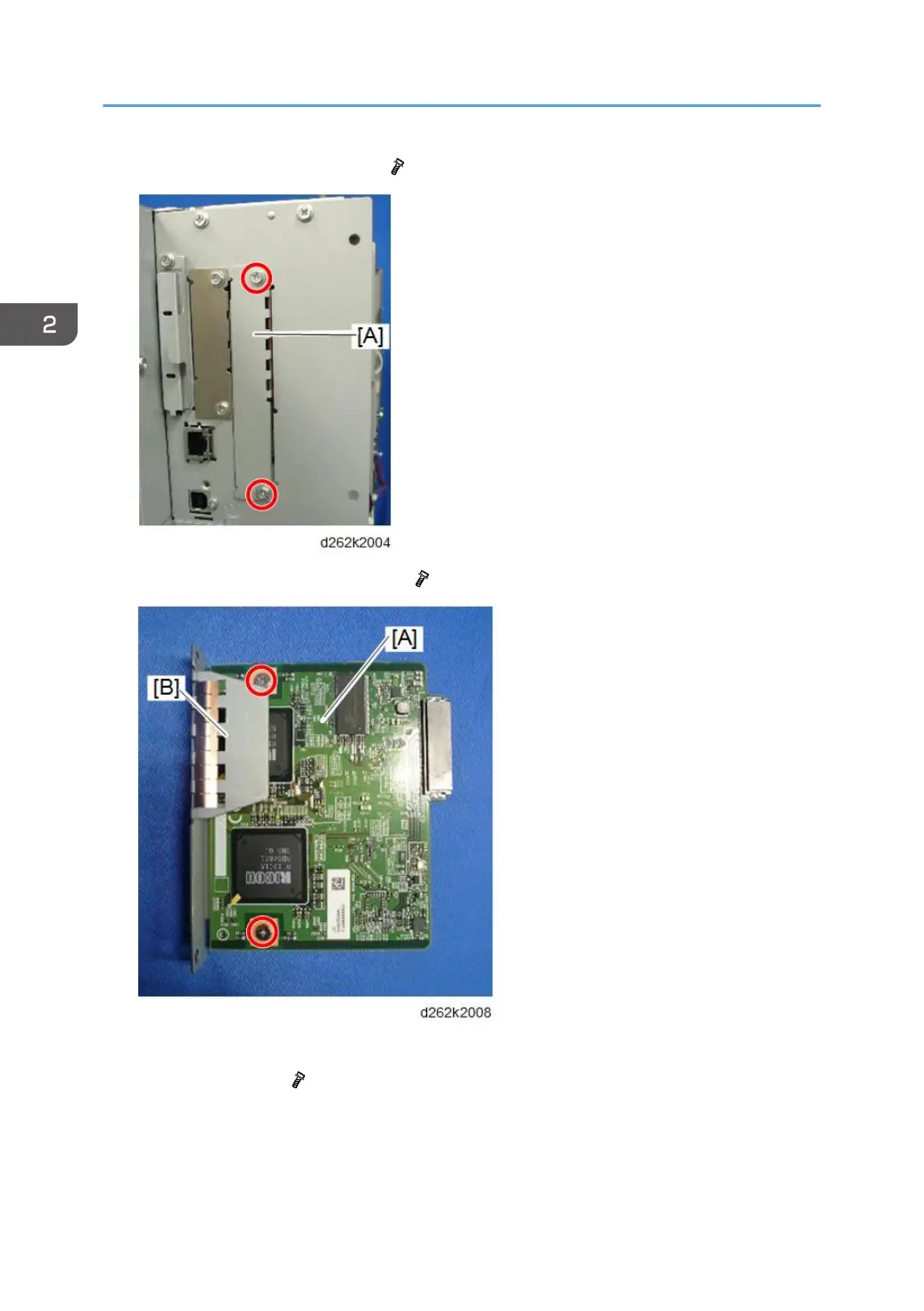

1. Remove the cover for Slot B [A] ( x2).
2. Attach the cover [B] to the MLB [A] ( x2).
3. Insert the MLB with the cover attached to Slot A.
4. Tighten the screws ( x2).
5. Connect the power plug to a wall outlet and set the main power switch to ON.
6. Output the system setup list and check that the system configuration recognizes the option
correctly.
2. Installation
164
