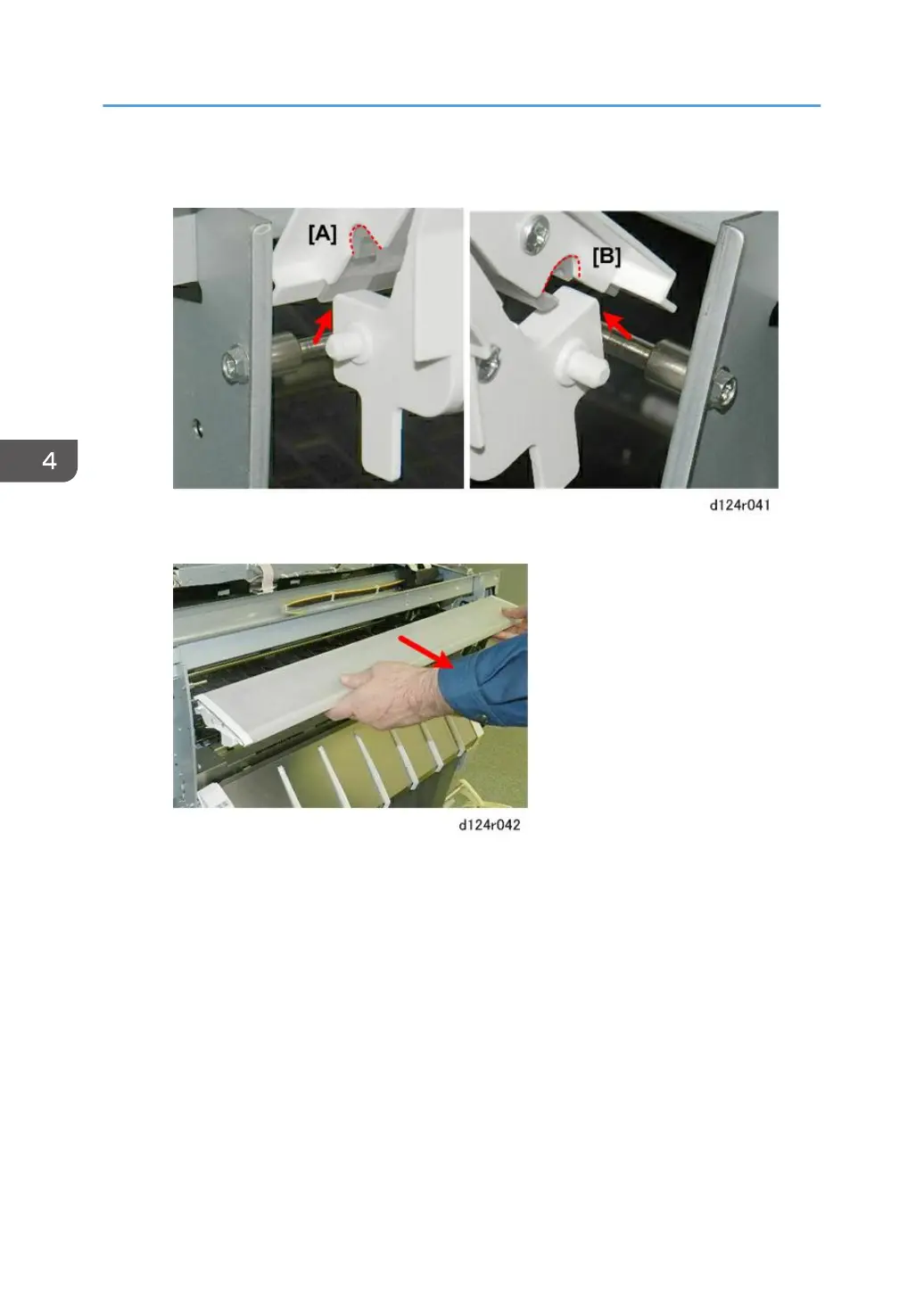

3. Disconnect the peg on the left [A] and the peg on the right [B].

4. Remove the front cover.

Reinstallation

1. Make sure that the left and right pegs are inserted into the left and right guides.

4. Replacement and Adjustment

250
