506
Practical advice
Changing the bulbs
왘 Insert the new bulb into the socket and
press it down fully.
The lug on the bulb holder must point
up and to the left and cable duct 2
must point up and to the right on the
left-hand headlamp and down and to
the left on the right-hand headlamp.
왘 Turn bulb holder 1 clockwise until it
engages and grip 3 is horizontal.

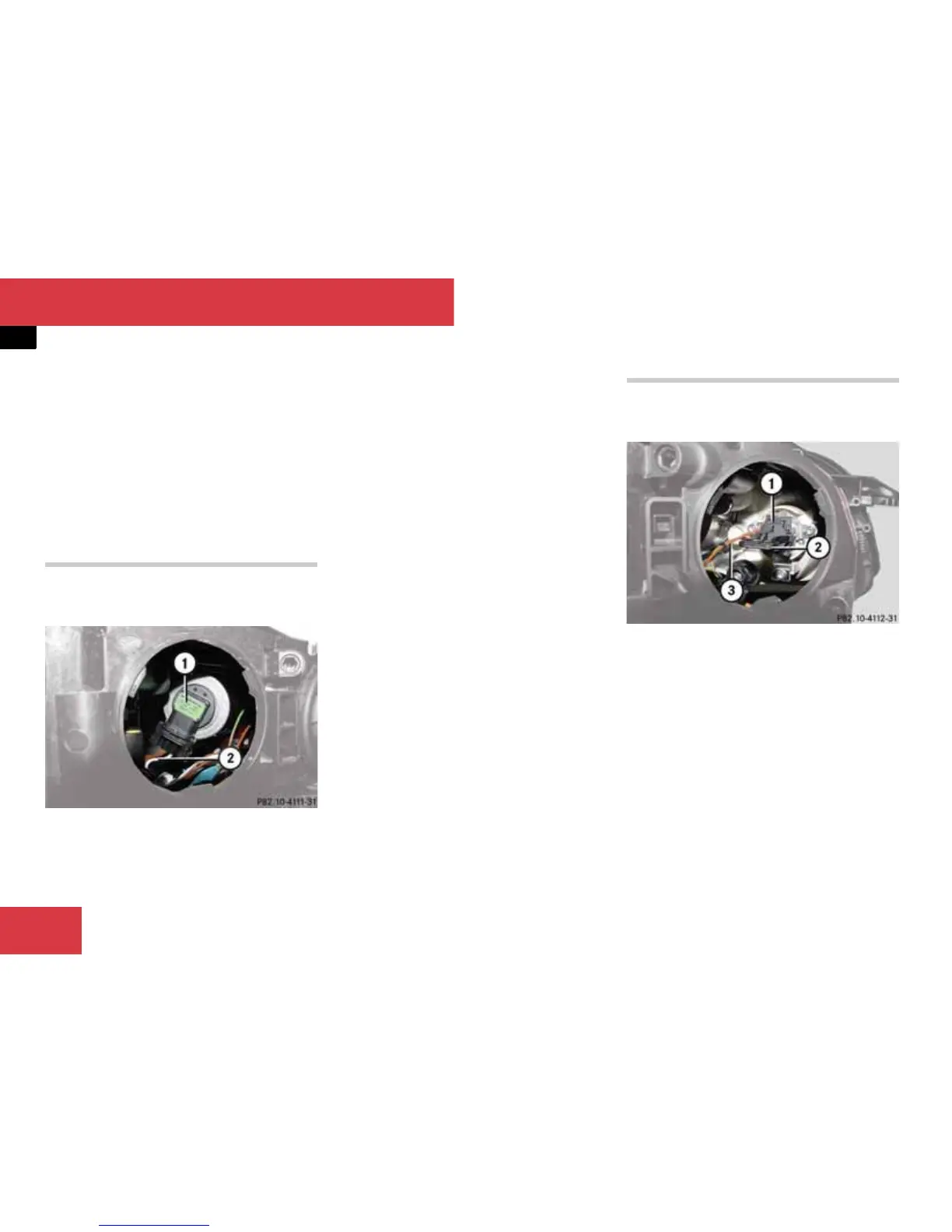

Changing the IR emitter*
왘 Switch off the lights.
왘 Open the bonnet.
1 Bulb
2 Cable duct
왘 Turn cover 2 (컄 page 503) anti-clock-
wise and remove it.
왘 Turn bulb 1 anti-clockwise until it dis-
engages.
왘 Remove bulb holder 1.
왘 Press the two lugs on the left and right
of bulb holder 1 and pull the bulb out
of the socket.
왘 Insert the new bulb into the socket until
it engages.
왘 Fit bulb holder 1 into the guide in the
headlamp. Cable duct 2 must point
down and to the right.
왘 Turn bulb holder 1 clockwise until it
engages and cable duct 2 is at the
bottom on the left.
Changing the cornering light bulbs*
왘 Switch off the lights.
왘 Open the bonnet.
1 Bulb holder
2 Grip
3 Cable duct
왘 Turn cover 3 (컄 page 503) anti-clock-
wise and remove it.
왘 Turn bulb holder 1 anti-clockwise un-
til it disengages.
왘 Remove bulb holder 1.
왘 Remove the bulb from the socket.
왘 Insert the new bulb into the socket and
press it down fully.
P82.10-4111-31
P82.10-4112-31
