531
Practical advice
Fuses
There are fuse boxes in the engine com-
partment, one on the left-hand side and
one on the right-hand side when viewed in
the direction of travel.

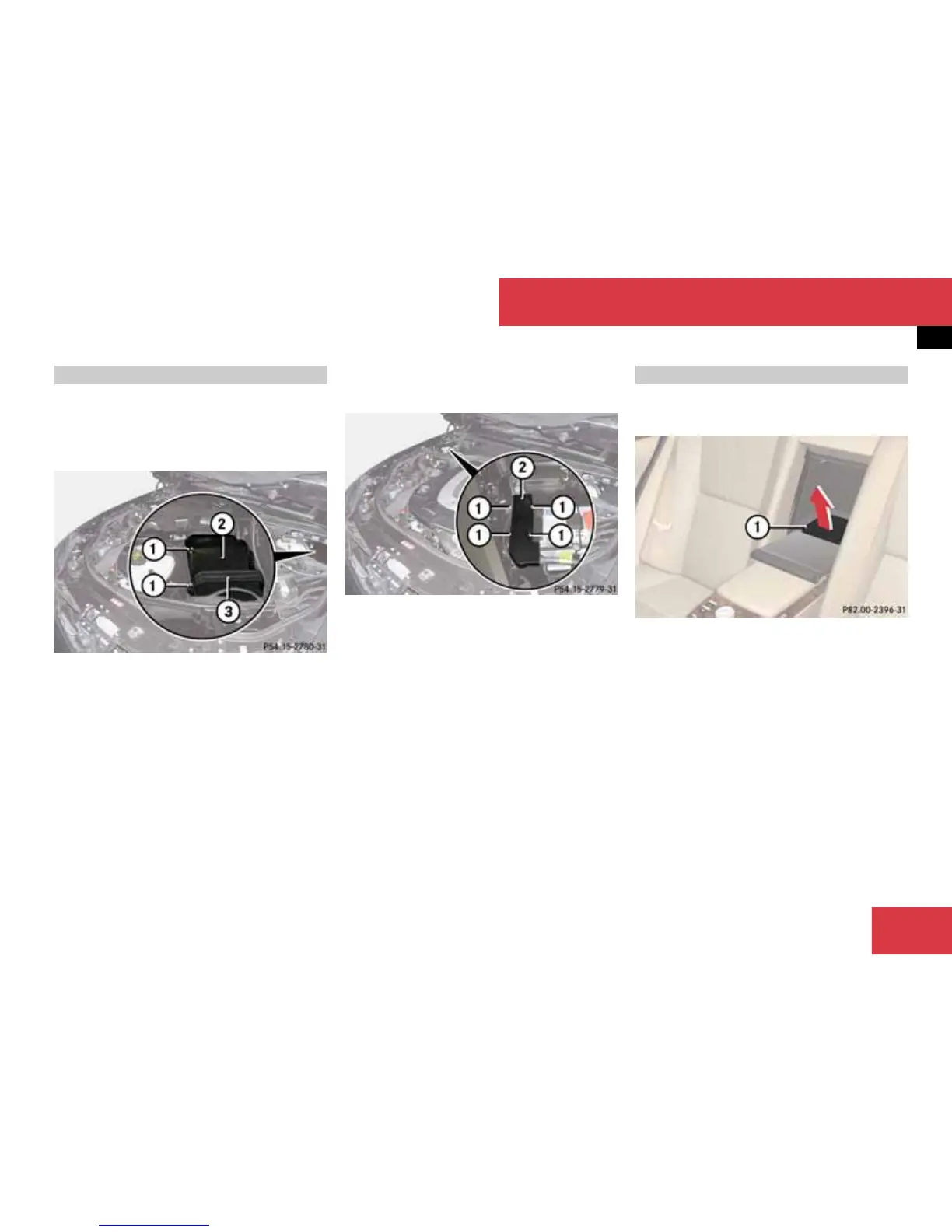

Fuse box on the left-hand side when viewed
in the direction of travel
1 Screws
2 Cover
3 Bridge
왘 To open: take the crank from the
Owner’s Manual wallet (
컄 page 498).
왘 Loosen screws 1 using the crank.
왘 Remove bridge 3.
왘 Remove cover 2.
왘 To close: fit cover 2.
왘 Fit bridge 3.
왘 Tighten screws 1 using the crank.
Fuse box on the right-hand side when
viewed in the direction of travel
1 Retaining clips
2 Cover
왘 To open: press retaining clips 1.
왘 Remove cover 2.
왘 To close: fit cover 2.
왘 Press cover 2 down by hand.
! The cover must sit correctly, otherwise the
ingress of moisture or dirt could impair the func-
tion of the fuses.
The fuse box is behind the centre armrest
in the rear compartment.
1 Cover
왘 To open: fold down the centre armrest.
왘 Open the cover behind the centre arm-
rest.
왘 Pull cover 1 forwards in the direction
of the arrow.
왘 To close: press cover 1 backwards
until it engages.
! Make sure that the seal in the cover is not
damaged during opening and closing.
Fuse box in the engine compartment
P54.15-2780-31
P54.15-2779-31
Fuse box in the rear compartment
P82.00-2396-31
