SELF-DIAGNOSTIC TEST FLOW
SM 4-7 J001/J003
Trouble-
shooting

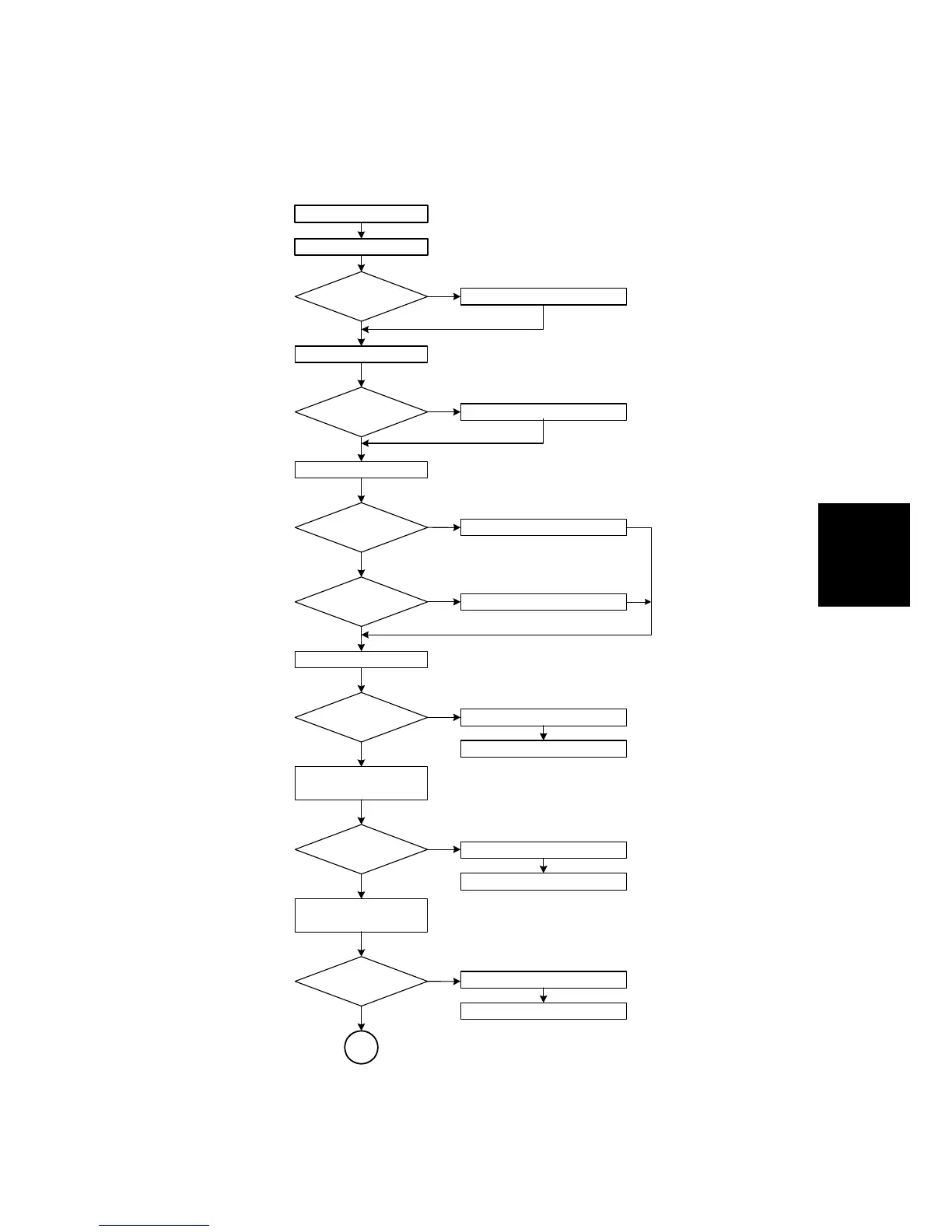

4.2 SELF-DIAGNOSTIC TEST FLOW
Power ON
NVRAM Check
EEPROM Write Error?
No
Yes
Operation Temp. Range Check
Temp. Within Range?
Yes
No
Vertical Motor Drive
Motor On?
No
Yes
Charge Leak Detected?
No
Yes
Maint. Motor HP Check
HP Detected?
Yes
No
Horiz. Encoder Signal Input
Check
Encoder Input Signal?
Yes
No
Move Carriage Standard
Position (Temporary - at
Right)
Carriage failed to stop?
No
Yes
A
SC973
Printer Stops. Self-Recovery.
SC994
SC993
SC999
Printer Halts.
SC996
Printer Halts
SC997
Printer Halts
