Cleaning Procedures
J007/J010/J011 3-34 SM

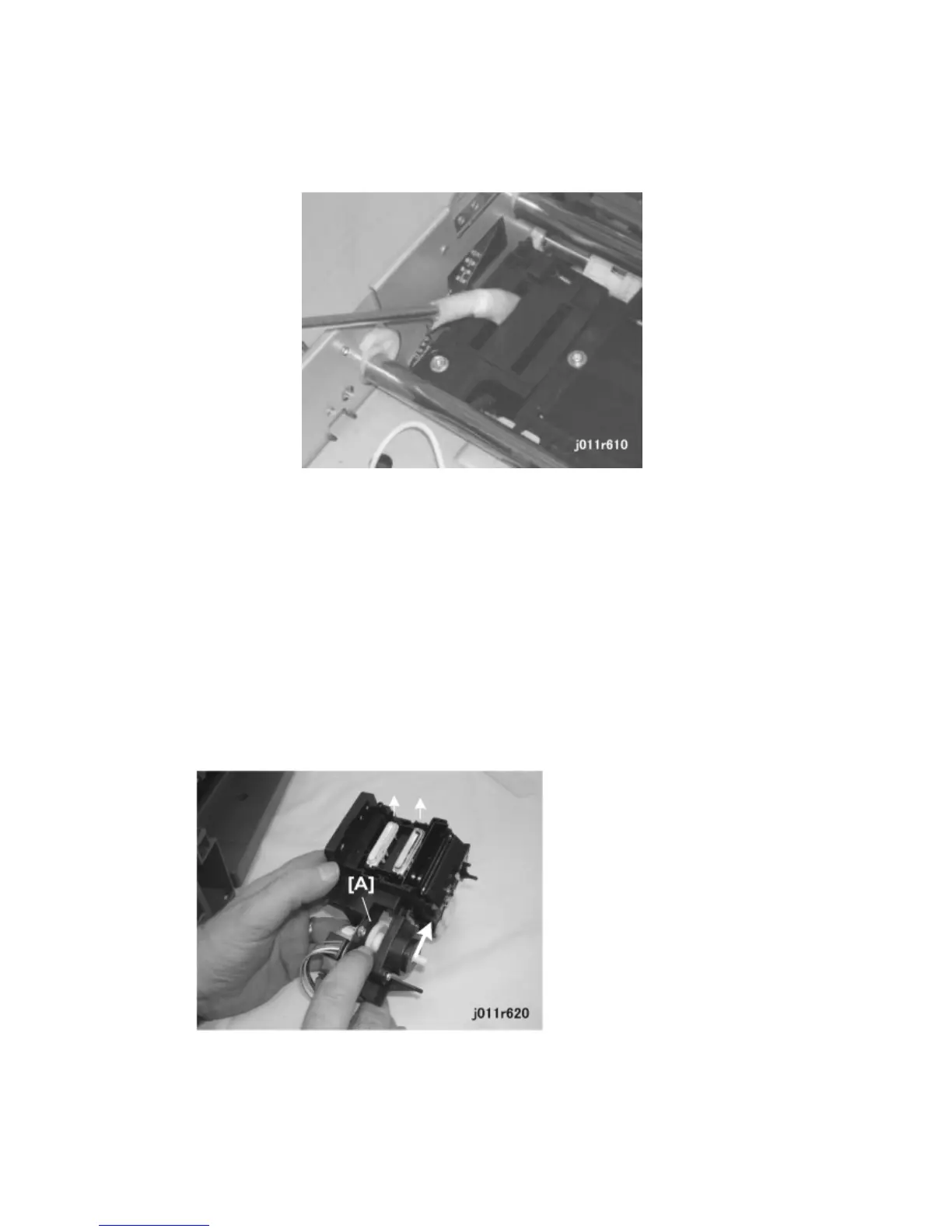

3.5.3 FLUSHING GATE CLEANING
Dry ink flakes that collect around the flushing gate can cause streaking in printouts.
1. Open the top cover.
2. Use the tip of a screwdriver or other tool wrapped in soft cloth to remove the ink
that has hardened inside the slits the flushing gate.
3. Use a slightly damp cloth to wipe clean the ink splatter around the flushing
gates.
3.5.4 MAINTENANCE UNIT CLEANING
Cleaning the Suction Cap, Right Air Vent, and Wiper Blade
1. Remove the maintenance unit. (See "Maintenance Unit" for more about
removal.)
2. Turn the drive gear [A] of the maintenance motor in the direction of the arrow to
raise the suction caps.
To Next Page
