IMAGE ADJUSTMENT
J001/J003 3-20 SM
3.7.5 ADJUST PRINT HEAD POSITION
The print head is out of position if you see these:
• Broken vertical lines
• Smeared or streaked colors
At this time, do this procedure:
1. Open the printer driver. (3.7.2)
2. In the Printer Properties window click “Maintenance”>”Adjust Print Head
Position”
3. Do the instructions on the screen to print the test pattern.

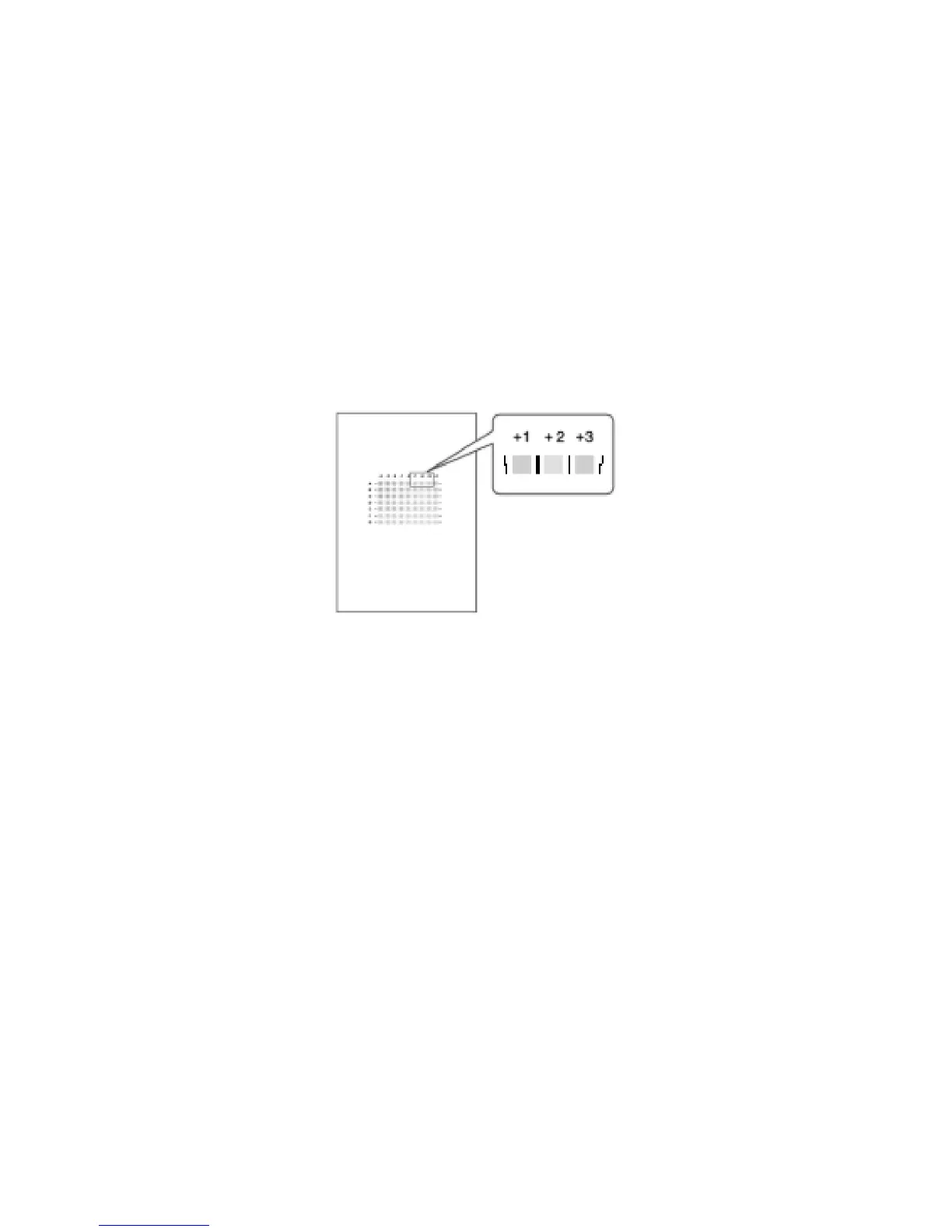

6. Examine the test print. Then enter the number of the pattern that shows the
best appearance.
7. Do the instructions on screen to complete the adjustment.
To Next Page
