TRAY 2 (500-SHEET TRAY – J003 OPTION)
SM 6-55 J001/J003
Detailed
Descriptions
6.12.3 PAPER FEED

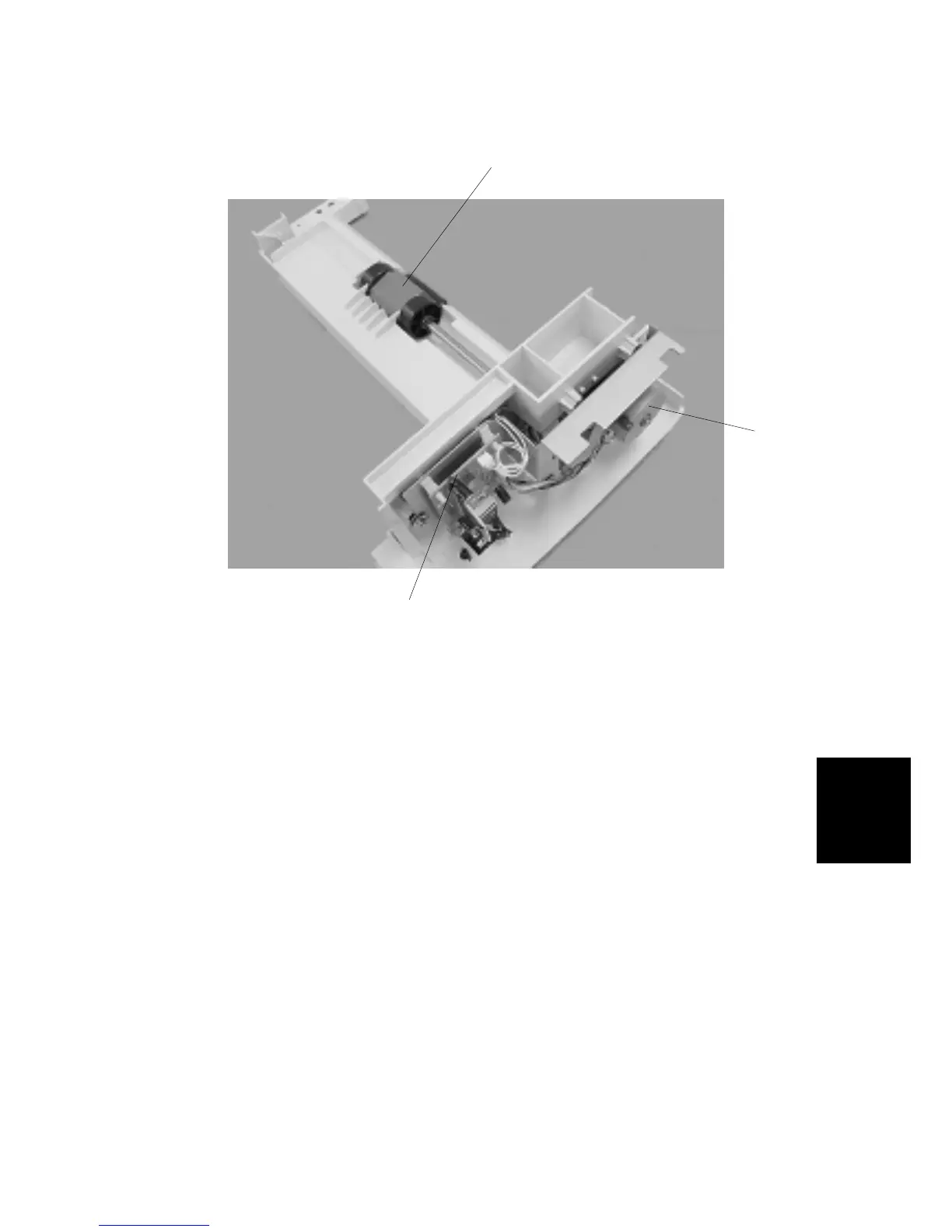

The paper feed motor [A] in the tray drives the feed roller [B].
The control board [C] controls the operation of the feed clutch (not shown). This
engages the shaft where the feed roller is mounted. Then it rotates it at the
prescribed time to feed paper from the tray.
The friction pad at the edge of the cassette below the feed roller prevents double
sheets of paper to be fed.
The transport guide moves the paper out of the cassette and onto the transport belt.
The trailing edge sensor goes on at the time the trailing edge of the sheet passes.
Then the printer turn transport belt on.
[A]
[B]
[C]
