Carriage Unit
SM 6-7 J007/J010/J011
J007/J010/
J011
Item J007/J010 J011
Number of Nozzles 192 x 4 colors
192 nozzles x 2 lines/head
384 x 4 colors
192 nozzles x 2 lines/head
Array Cross-Hatch (150 dpi x 2 lines)
Voltage Element Piezoelectric

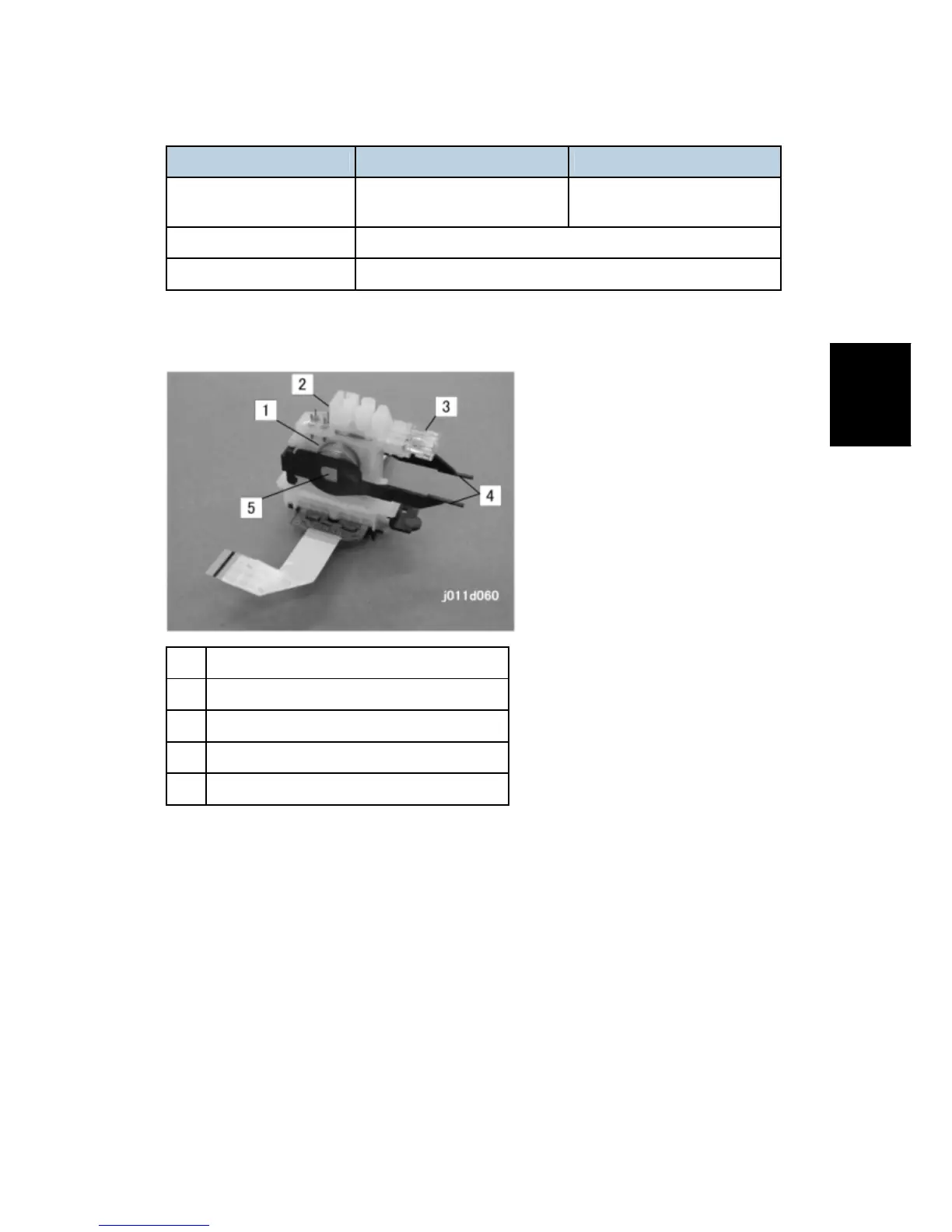

6.3.3 PRINT HEAD TANK
1 Ink Supply Port
2 Ink Reservoir
3 Air Release Valve
4 Ink Level Levers
5 Plastic Bellows
The printer employs a dual-tank system.
Each ink cartridge (Y, M, C, K) is connected to a print head tank via a plastic tube.
The first tank of the dual-tank system is the ink cartridge that supplies the ink through a
tube to the print head tank unit. The second tank is the small ink reservoir inside the print
head tank unit.
The high volume ink cartridges and the carriage components are extremely lightweight.
A print head tank has four main parts as shown above:
Ink supply port. Ink enters here from the ink cartridge mounted under the operation
panel.
Ink reservoir. This is where ink collects before it is fed to the print head below.
