MAINTENANCE UNIT
SM 6-21 J001/J003
Detailed
Descriptions
6.5.3 WASTE INK COLLECTION UNIT

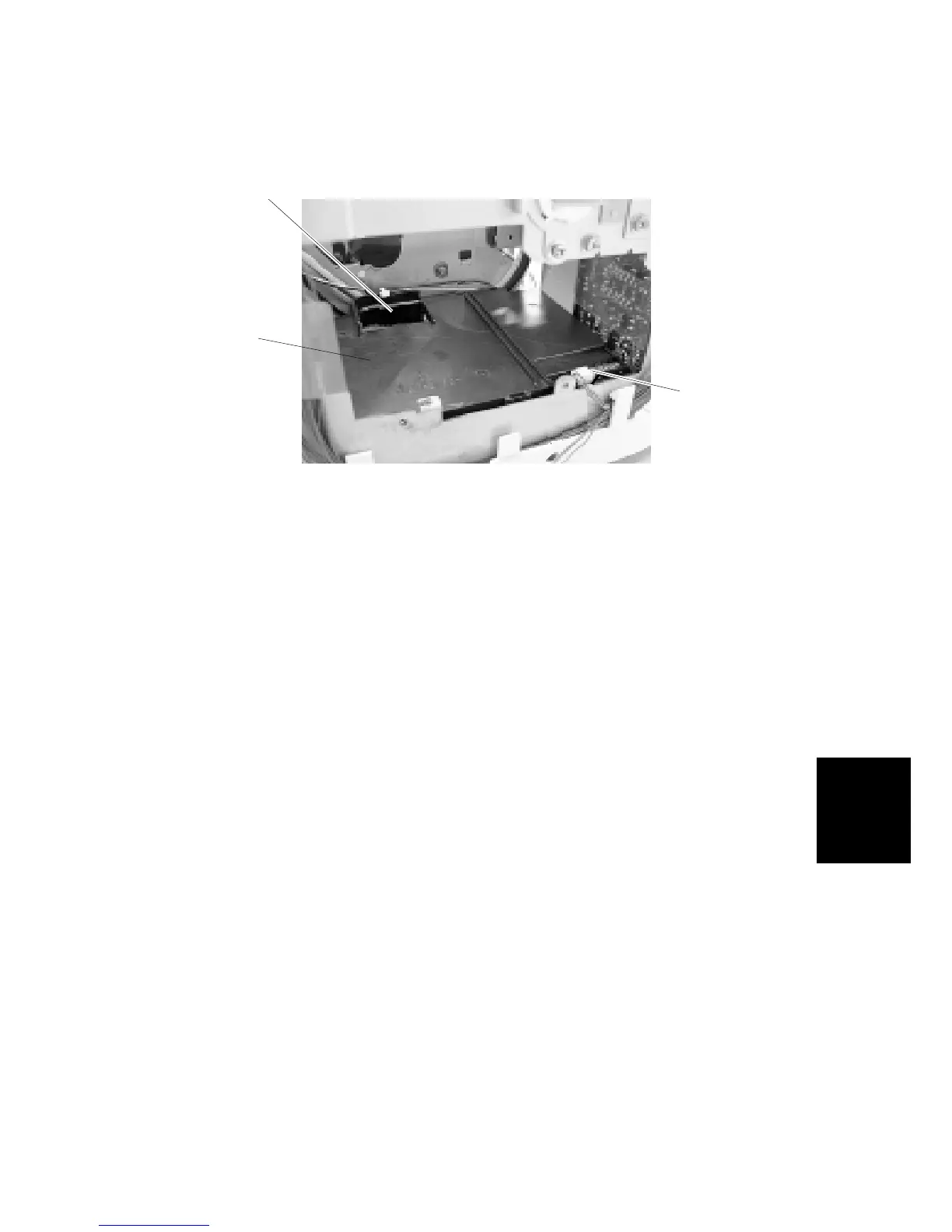

The waste ink collection unit [A] collects the waste ink from the maintenance unit
above and the flushing gate. The waste ink gets collected at the waste ink
collection port [B].
The capacity of the waste ink collection unit is 480 ml in the J003 and 248 ml in the
J001. The printer should be able to use the waste ink collection unit for about 5
years of normal use. The unit has a waste ink tank full sensor [C]. The sensor
detects when the collection unit is full.
[A]
[B]
[C]
