Component Removal
SM 3-29 J007/J010/J011
J007/J010/
J011

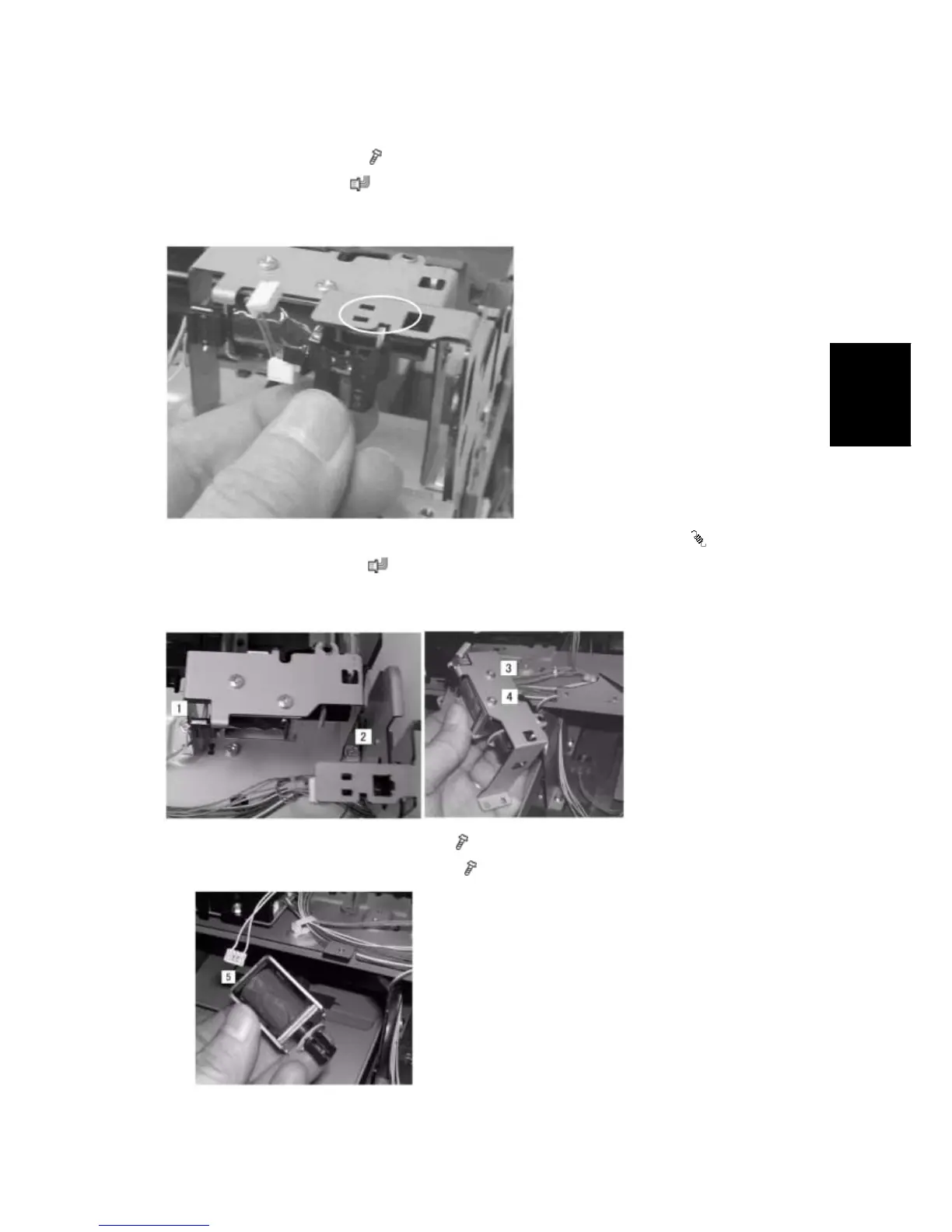

1. Remove screws [1], [2] ( x2).
2. Disconnect the PCB (
x1)
3.4.12 CARRIAGE POSITION SENSOR
1. Remove the sensor from the top of the air release solenoid bracket ( x3)
2. Disconnect the sensor (
x1).
3.4.13 AIR RELEASE SOLENOID
1. Remove the bracket screws [1], [2] (
x2).
2. Remove the solenoid screws [3], [4] (
x2).
