Removing the Covers
J007/J010/J011 3-8 SM
3.3 REMOVING THE COVERS
3.3.1 RIGHT COVER

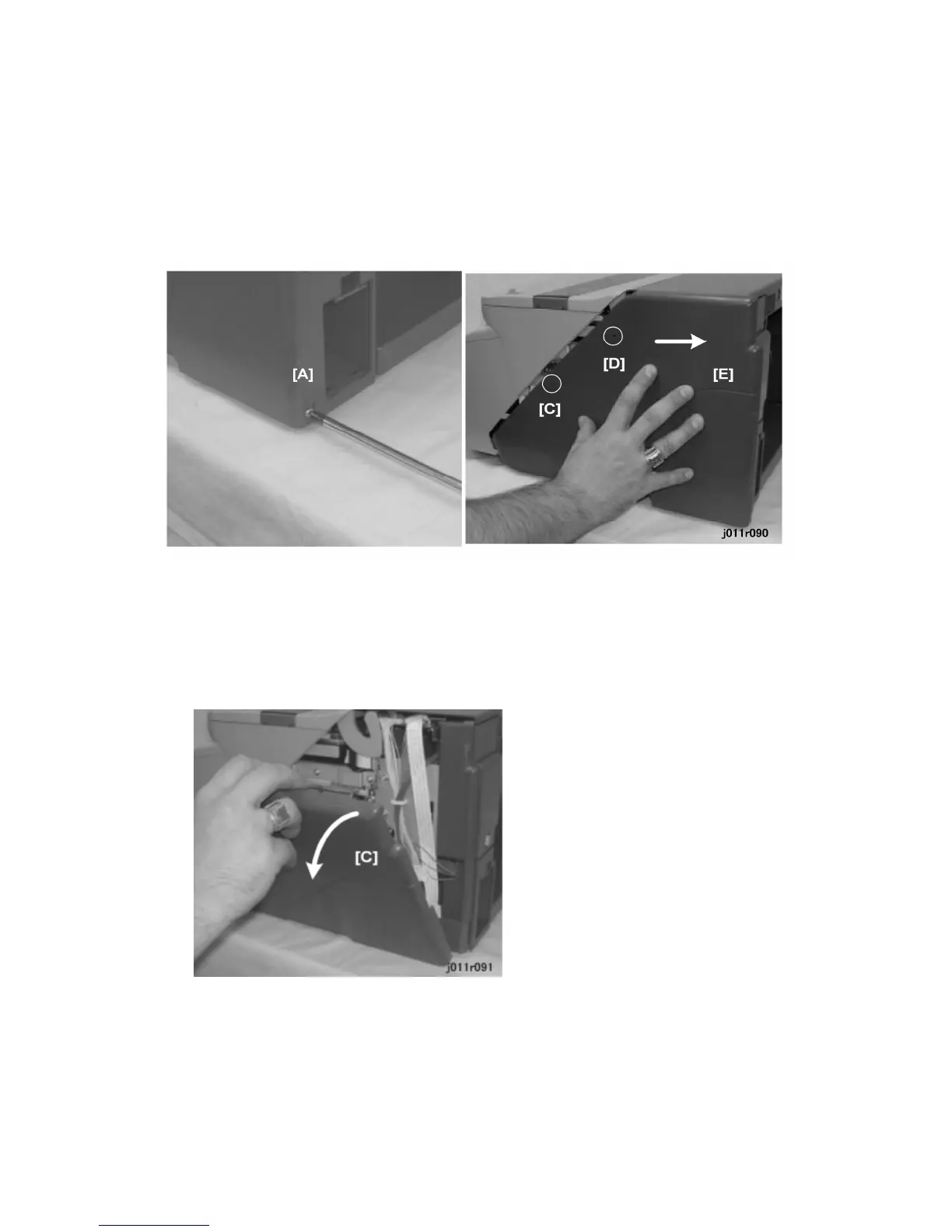

1. Remove the screw [A].
2. Insert the tip of a very small screw driver into the holes [C] and [D] to
disconnect the pawls behind the cover.
3. Slide the cover [E] to the rear about 2 cm.
The cover is also held in place by two tabs on the bottom edge of the cover.
4. Slowly rotate the right cover [C] away from the side of the printer.
