Component Removal
J007/J010/J011 3-28 SM

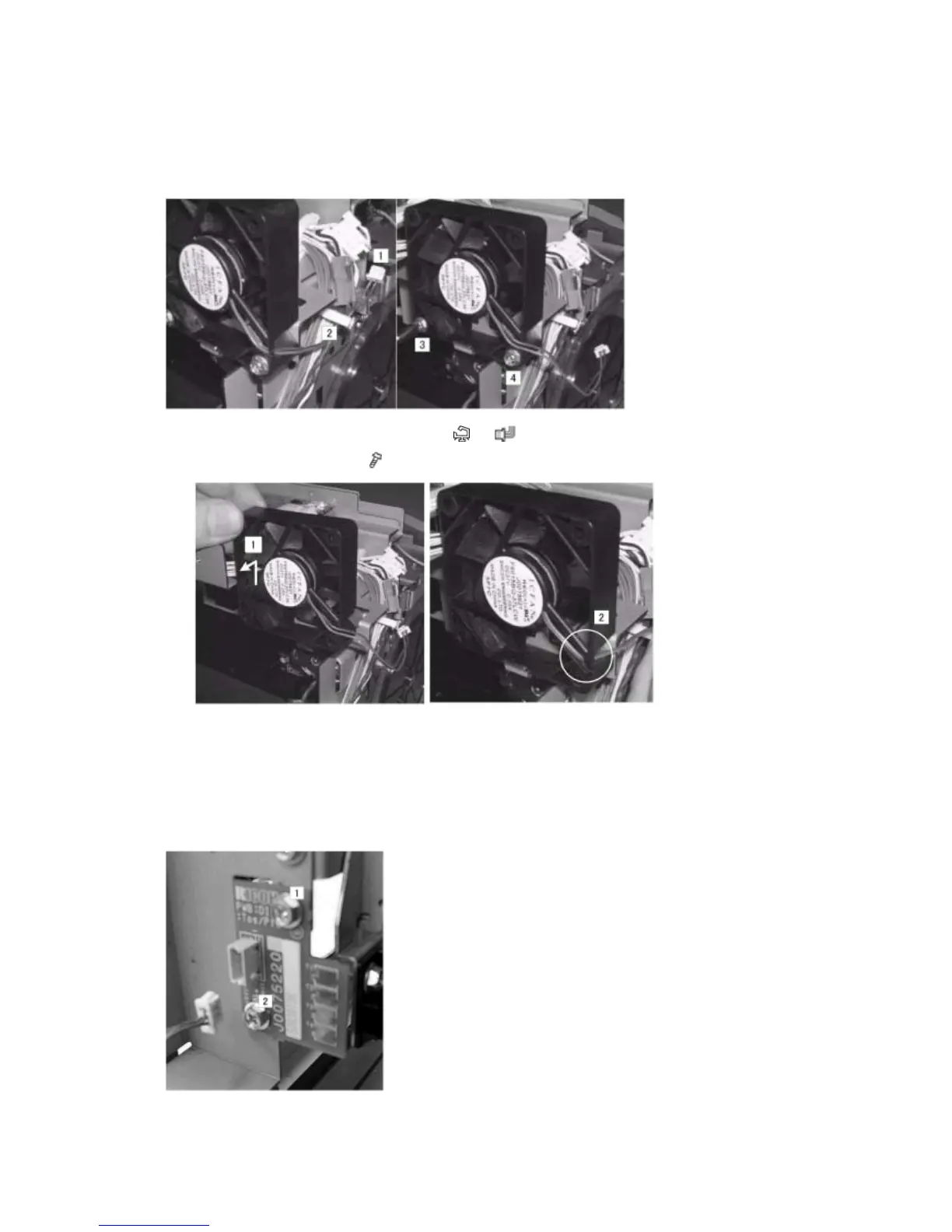

3.4.10 COOLING FAN
1. Disconnect the fan harness [1], [2] (
x1, x1)
2. Remove screws [3], [4] (
x2)
3. Remove the cooling fan [1].
Reassembly
Make sure that the harness is set in the gap [2] before you reconnect the motor.
3.4.11 DUPLEXER DETECTION BOARD
CÓPIA NÃO CONTROLADA
CÓPIA NÃO CONTROLADA
